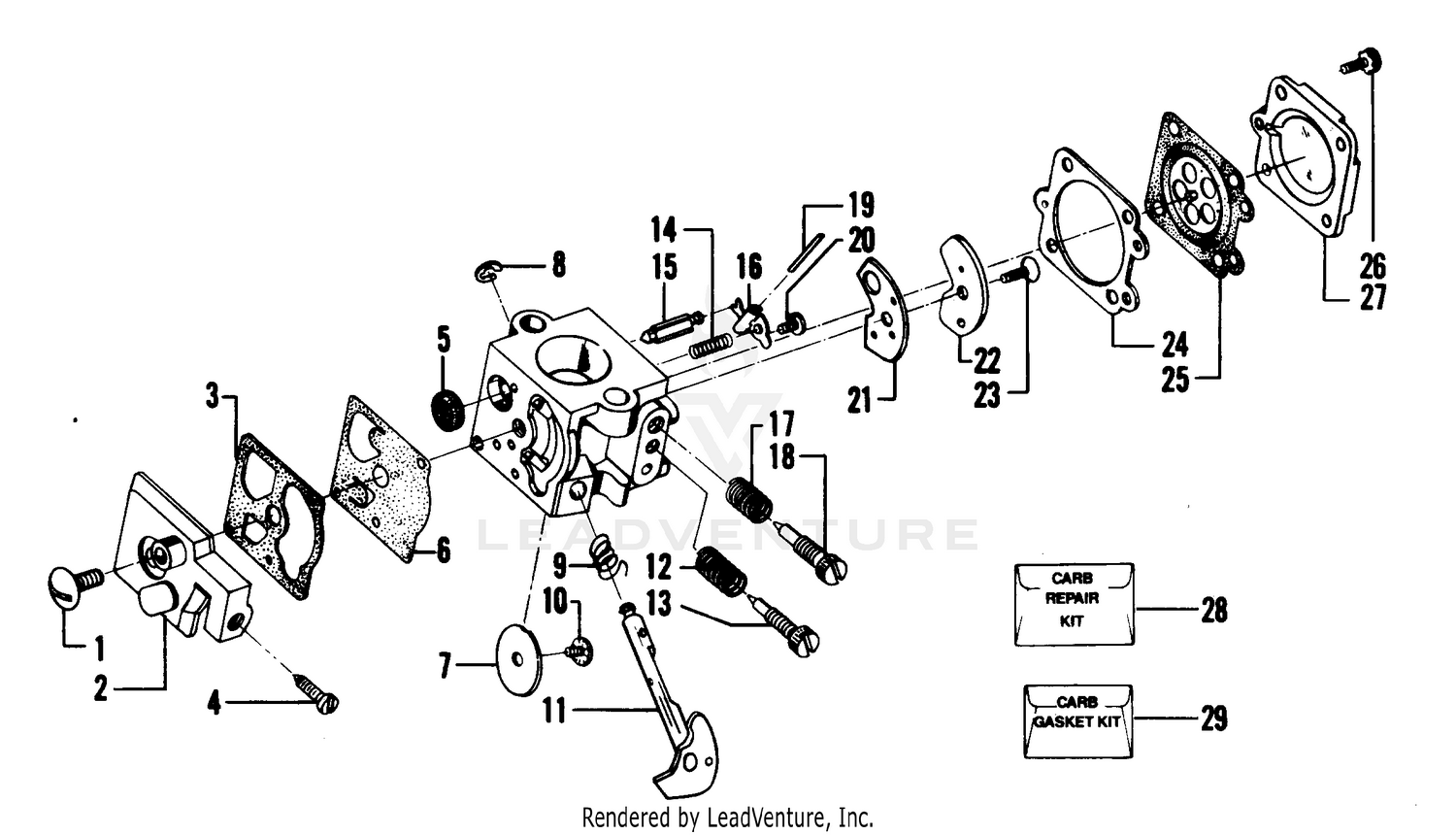

| Ref | Part Number | Description |
|---|
| 1 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 1 |
530035017 |
Screw - Pump Cover Price: $0.99 |
| 2 |
3-6514 |
THRUST WASHER Price: $1.74 |
| 2 |
530035191 |
Pump Cover Ass'y (Inc.4) Price: $3.99 |
| 3 |
26-1340 |
GEAR Price: $488.25 |
| 3 |
504130906 |
GASKET This part replaces 530035164. Price: $1.99 |
| 4 |
18-6430 |
KEY-SQUARE Price: $3.56 |
| 4 |
530035156 |
Screw - Idle Adjustment Price: $1.99 |
| 5 |
530035178 |
Screen Inlet Price: $1.99 |
| 6 |
504130807 |
PUMP DIAPHRAGM This part replaces 530035166. Price: $2.99 |
| 7 |
530035133 |
Valve - Throttle Price: $3.33 |
| 8 |
33-2040 |
SHIM Price: $2.71 |
| 8 |
530035007 |
Clip - Throttle Shaft Price: Call Us |
| 9 |
26-1290 |
DISCONTINUED Price: Call Us |
| 9 |
530035138 |
Spring - Throttle Return Price: Call Us |
| 10 |
302-14 |
VENT Price: $8.03 |
| 10 |
530035015 |
Screw - Throttle Valve Price: $1.99 |
| 11 |
253-137 |
OIL SEAL Price: $5.70 |
| 11 |
530035132 |
Shaft Assembly - Throttle Price: Call Us |
| 12 |
26-1310 |
DISCONTINUED Price: Call Us |
| 12 |
530035023 |
Spring - Idle Needle Price: $0.99 |
| 13 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 13 |
530035141 |
Needle - Idle Price: $2.99 |
| 14 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 14 |
530035188 |
WT-141 - T1 This part replaces 530035139. Price: $1.99 |
| 15 |
237-97 |
O-RING Price: $3.43 |
| 15 |
503117001 |
Needle This part replaces 530035106. Price: $7.99 |
| 16 |
254-90 |
BEARING-CUP Price: $11.29 |
| 16 |
505520127 |
Metering Lever This part replaces 530035031. Price: $3.99 |
| 17 |
254-91 |
CONE-BEARING Price: $18.65 |
| 17 |
530035036 |
Spring - Hi Speed Needle Price: Call Us |
| 18 |
26-1320 |
DISCONTINUED Price: Call Us |
| 18 |
501782201 |
H-NEEDLE This part replaces 530035142. Price: $6.30 |
| 19 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 19 |
505520125 |
Pin This part replaces 530035028. Price: $1.99 |
| 20 |
23-1640 |
BUSHING-TAPERLOCK Price: $68.50 |
| 20 |
530035016 |
Screw - Metering Lever Pin Price: $2.99 |
| 21 |
3247-4 |
SCREW-SET Price: $0.54 |
| 21 |
501781301 |
GASKET This part replaces 530035147. Price: $0.45 |
| 22 |
26-1400 |
PULLEY-DECK Price: $539.17 |
| 22 |
530035042 |
Plate - Circuit Price: $3.33 |
| 23 |
3274-1 |
SCREW-HSH Price: $5.52 |
| 23 |
530035137 |
Screw - Circuit Plate Price: $3.33 |
| 24 |
26-1390 |
DISCONTINUED Price: Call Us |
| 24 |
530035151 |
Gasket - Metering Diaphragm Price: $1.99 |
| 25 |
26-1380 |
OUTPUT BRG HSG Price: $162.98 |
| 25 |
503896701 |
DIAPHRAGM This part replaces 530035014. Price: $4.99 |
| 26 |
26-1330 |
DISCONTINUED Price: Call Us |
| 26 |
530035153 |
Screw Assembly - Metering Cover & Throttle Shaft Clip Price: $3.33 |
| 27 |
26-1270 |
DISCONTINUED Price: Call Us |
| 27 |
530035149 |
Cover - Metering Diaphragm Price: $3.33 |
| 28 |
530035185 |
Kit Carb.-Kwik Repair (Inc. 3,5,6,10,14,15, 16,19,21,23,24,25) Price: $24.99 |
