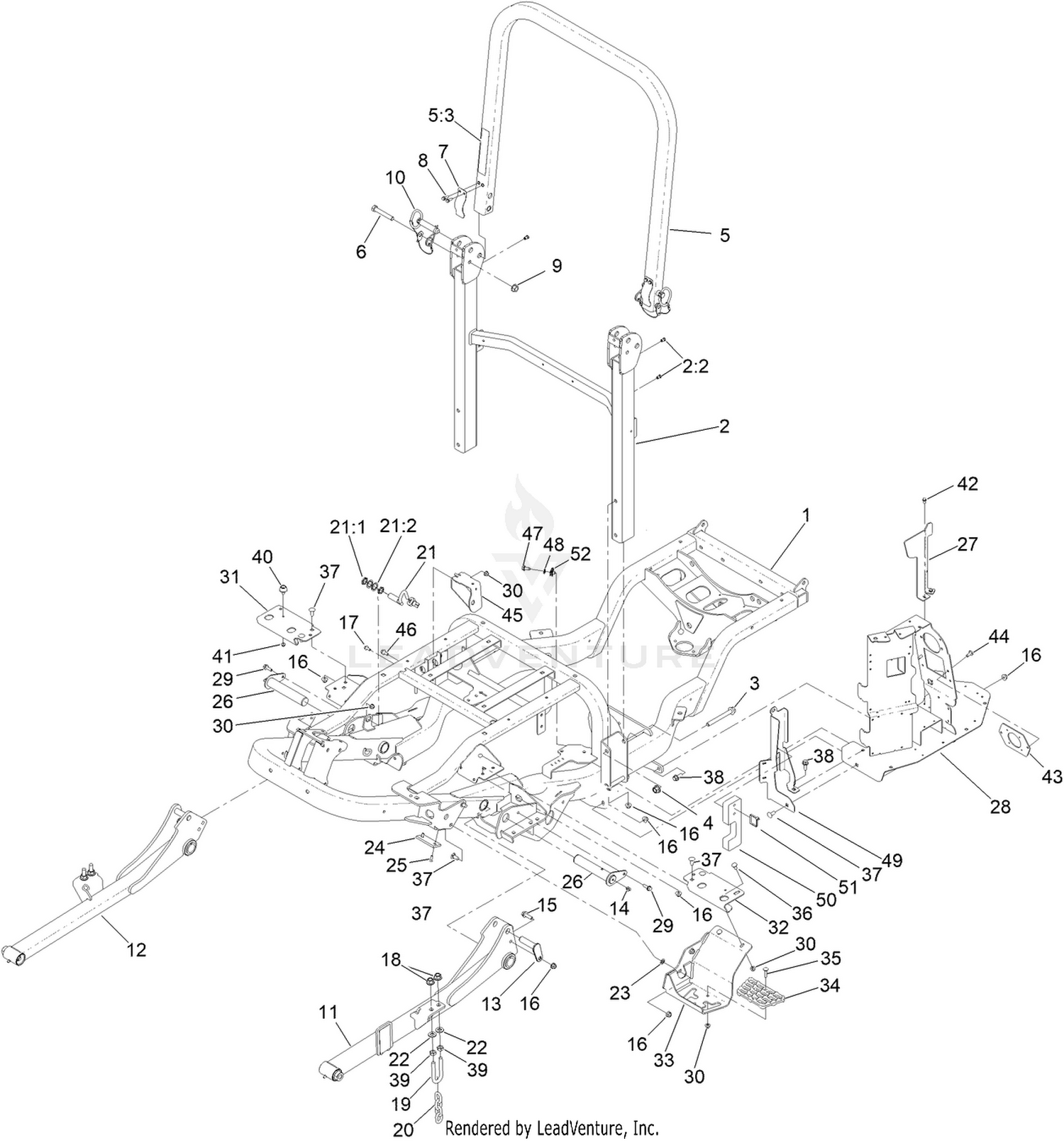

| Ref | Part Number | Description |
|---|
| 1 |
145-0980-03 |
FRAME ASM, WELDED Price: Call Us |
| 2 |
139-6254 |
ROPS ASM, LOWER Price: Call Us |
| 3 |
117-3176 |
SCREW-HHF Price: $3.73 |
| 4 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 5 |
138-7470 |
ROPS ASM, UPPER Price: $369.69 |
| 6 |
325-13 |
SCREW-HH Price: $3.57 |
| 7 |
110-5696 |
SPRING-LEAF Price: $43.16 |
| 8 |
32105-15 |
SCREW-HWH Price: $1.79 |
| 9 |
32128-23 |
NUT-HF Price: $1.51 |
| 10 |
161-4477 |
PIN-ROPS, ASM Price: $31.99 |
| 11 |
144-3943 |
LIFT ARM ASM. LH Price: $492.47 |
| 12 |
144-3942 |
LIFT ARM ASM. RH Price: $492.47 |
| 13 |
138-7489 |
PIN (MACHINED) Price: $24.69 |
| 14 |
302-40 |
FITTING-GREASE, 90 DEG Price: $1.70 |
| 15 |
119-4061 |
SCREW-HHF Price: $0.75 |
| 16 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 17 |
99-6810 |
SCREW-HHF Price: $3.09 |
| 18 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 19 |
104-0108 |
U-BOLT Price: $7.10 |
| 20 |
95-6231 |
CHAIN-HOC Price: $14.75 |
| 21 |
115-5300 |
PROXIMITY SWITCH ASM Price: $137.95 |
| 22 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 23 |
107-3154 |
NUT-PUSH Price: $0.99 |
| 24 |
138-4452 |
PAD-STOP, DECK Price: $2.98 |
| 25 |
3289-4 |
SCREW-FH Price: $3.27 |
| 26 |
145-1130 |
PIN ASM, WELDED Price: $36.78 |
| 27 |
161-0822-0P |
BRACKET-DEFLECTOR Price: Call Us |
| 28 |
145-1032-03 |
CHARGE PANEL, WELDED Price: Call Us |
| 29 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 30 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 31 |
139-0940-03 |
BRACKET-TANK MOUNT, FRONT RH Price: $32.69 |
| 32 |
138-7365-03 |
BRACKET-TANK MOUNT, FRONT LH Price: $32.69 |
| 33 |
139-0927-01 |
BRACKET-MOUNT, STEP Price: $112.02 |
| 34 |
126-4781 |
STEP-DECK Price: Call Us |
| 35 |
3230-3 |
SCREW-CARR Price: $0.53 |
| 36 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 37 |
3231-27 |
SCREW-CARR Price: $0.54 |
| 38 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 39 |
3218-5 |
NUT-JAM Price: $0.27 |
| 40 |
109-2365 |
BUMPER-RUBBER Price: $4.89 |
| 41 |
104-7201 |
NUT-HF Price: $0.69 |
| 42 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 43 |
161-0851-03 |
ADAPTER-CHARGER Price: Call Us |
| 44 |
138-9753 |
SCREW Price: $0.39 |
| 45 |
161-7639-0P |
BRACKET-CABLE Price: Call Us |
| 46 |
139-2598 |
SCREW-HHF Price: $0.56 |
| 47 |
145-5783 |
SCREW-SEMS Price: $0.99 |
| 48 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 49 |
161-7629-03 |
SHIELD-PDU Price: Call Us |
| 50 |
161-7628 |
FOAM-SEAL, CABLE Price: Call Us |
| 51 |
3290-379 |
TIE-CABLE Price: $0.31 |
