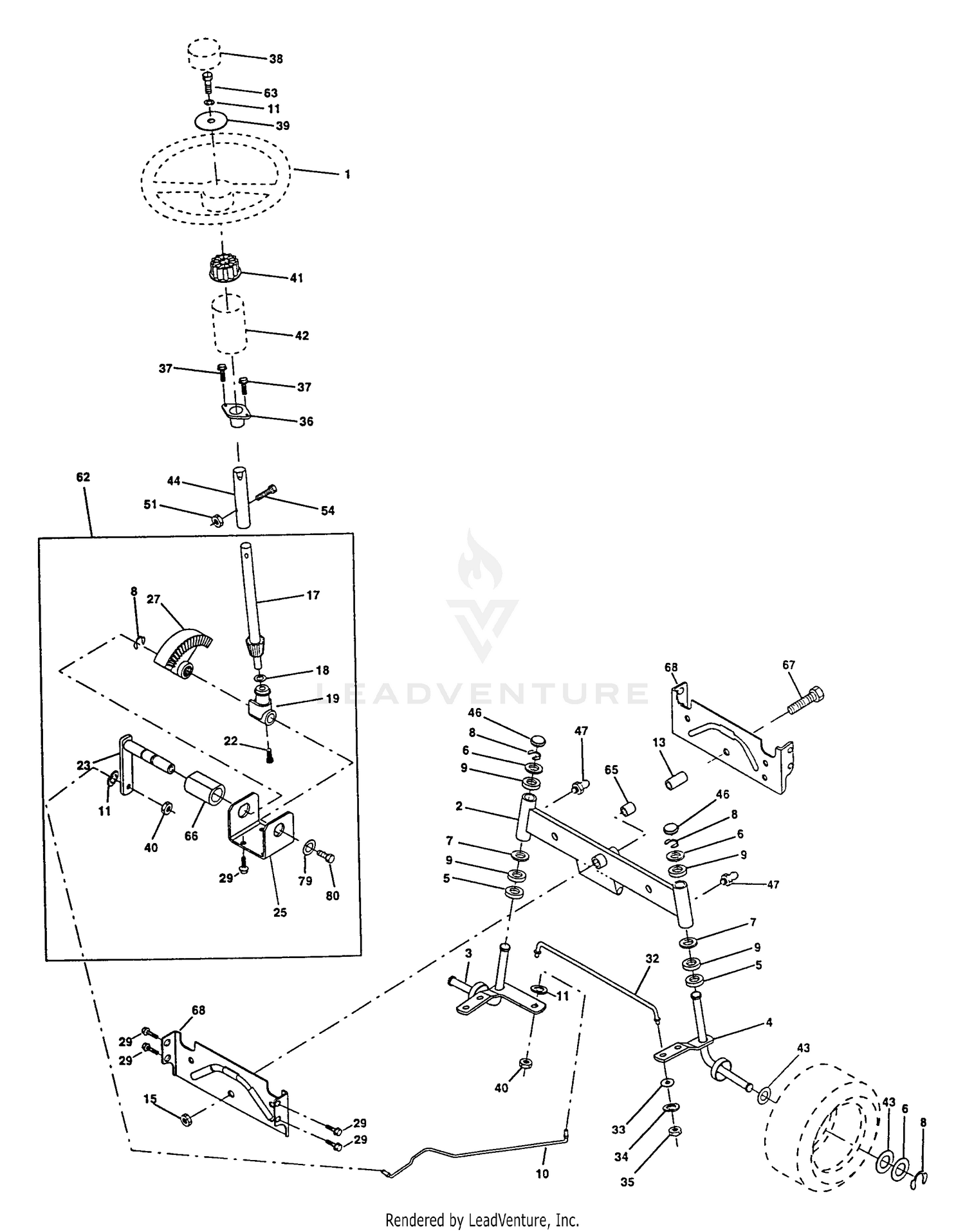

| Ref | Part Number | Description |
|---|
| 1 |
121472X |
Wheel Steering (AYP part number) Price: Call Us |
| 1 |
28-0650 |
SHAFT-AXLE, FLANGED This part replaces 24-8810. Price: $1,130.23 |
| 2 |
154427 |
Axle Asm Stmp Dropped STLT (AYP part number) Price: Call Us |
| 2 |
99-6969 |
SEAL-OIL, WHEEL END This part replaces 21-8330. Price: $14.71 |
| 3 |
156483 |
Spindle Asm LH Price: Call Us |
| 3 |
21-8180 |
BEARING ASM Price: $65.11 |
| 4 |
157473 |
Spindle Asm RH Price: Call Us |
| 4 |
24-9180 |
STRUT AND LEVER ASM This part replaces 21-9400. Price: $86.76 |
| 5 |
21-9450 |
SHIELD-DUST Price: $45.14 |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
121748X |
Washer 25/32 X 1-5/8 X 16 Ga Price: Call Us |
| 6 |
21-9410 |
SEE P.B.#734A Price: Call Us |
| 7 |
19272016 |
Washer 27/32 X 1-1/4 X 16 Ga Price: Call Us |
| 7 |
21-9430 |
SPRING-RETURN, RH Price: $19.96 |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 8 |
21-8290 |
DISCONTINUED Price: Call Us |
| 9 |
21-9470 |
SEE PB #747 Price: Call Us |
| 9 |
3366R |
Bearing Col Strg Blk Price: Call Us |
| 10 |
156438 |
Link Drag Extended Stamped Price: Call Us |
| 10 |
21-9460 |
RETAINER-LEVER, BRAKE Price: $2.18 |
| 11 |
10040600 |
Washer Lock Hvy Hlcl Spr 3/8 Price: Call Us |
| 11 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 12 |
21-8360 |
CLIP-RETAINING Price: $1.29 |
| 13 |
154779 |
Bearing Axle STLT/GT Price: Call Us |
| 13 |
21-8370 |
BRAKE DRUM Price: $219.36 |
| 14 |
21-9440 |
SPRING-SCREW, ADJUSTING Price: $11.92 |
| 15 |
21-9390 |
SOCKET-SCREW, ADJUSTING Price: $5.56 |
| 15 |
73901000 |
Nut Lock Flange 5/8-11 Unc Price: Call Us |
| 16 |
21-9370 |
SCREW-ADJUSTING Price: $18.80 |
| 17 |
156546 |
Shaft Asm Strg Price: Call Us |
| 17 |
21-9380 |
NUT-PIVOT Price: $26.77 |
| 18 |
21-8340 |
DISCONTINUED Price: Call Us |
| 18 |
57079 |
Washer Thrust 515x 750x 033 Price: Call Us |
| 19 |
160395 |
Support Shaft Price: Call Us |
| 19 |
21-9420 |
SPRING-RETURN, LH Price: $19.96 |
| 20 |
21-8320 |
REFER TO(PB#807 OR MISC COMM SB#50) Price: Call Us |
| 22 |
165857 |
Screw Hex Wsh Hd Torx Price: Call Us |
| 23 |
165851 |
Shaft Asm Pittman Price: Call Us |
| 25 |
154406 |
Bracket Steering Price: Call Us |
| 27 |
136874 |
Gear Sector Price: Call Us |
| 29 |
17490612 |
Screw Thdrol 3/8-16x3/4 Ty-tt Price: Call Us |
| 32 |
139929 |
Rod Tie Ball J Adj VGT (AYP part number) Price: Call Us |
| 33 |
19111216 |
Washer 11/32 x 3/4 x 16 Ga. Price: Call Us |
| 34 |
10040500 |
Washer Lock Hvy Hlcl Spr 5/16 Price: Call Us |
| 35 |
73810500 |
Locknut 5/16-24 Unf 3847 Price: Call Us |
| 36 |
155099 |
Bushing Strg (AYP part number) Price: Call Us |
| 37 |
152927 |
Screw Price: Call Us |
| 38 |
126805X |
Insert Cap Strg Wh Au Price: Call Us |
| 39 |
19133808 |
Washer 13/32 X 2-3/8 X 8 Ga Price: Call Us |
| 40 |
7810H |
Lock nut Price: Call Us |
| 41 |
100711L |
Adaptor Wheel Strg Price: Call Us |
| 42 |
145054 |
Boot Steering Dash Price: Call Us |
| 43 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 44 |
153720 |
Extension Steering Shaft LR/LT (AYP part number) Price: Call Us |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 47 |
6855M |
Fitting Grease Price: Call Us |
| 51 |
73800500 |
Nut Lock Hex w/ins 5/16-18 Price: Call Us |
| 54 |
74780520 |
Bolt Fin Hex 5/16-18 Unc x 1-1/4 Price: Call Us |
| 62 |
167902 |
Kit, Steering Assembly Svc Price: Call Us |
| 63 |
74780616 |
Bolt Fin Hex 3/8-16unc x 1 Gr. 5 Price: Call Us |
| 65 |
154780 |
Spacer Axle Price: Call Us |
| 66 |
154404 |
Bearing Arm Pittman Price: Call Us |
| 67 |
74781044 |
Bolt, Fin Hex 5/8-11 UNC x 2-3/4 Price: Call Us |
| 68 |
154429 |
Axle, Brace Price: Call Us |
| 79 |
19132012 |
Washer 13/32 x 1-1/4 x 12 Ga. Price: Call Us |
