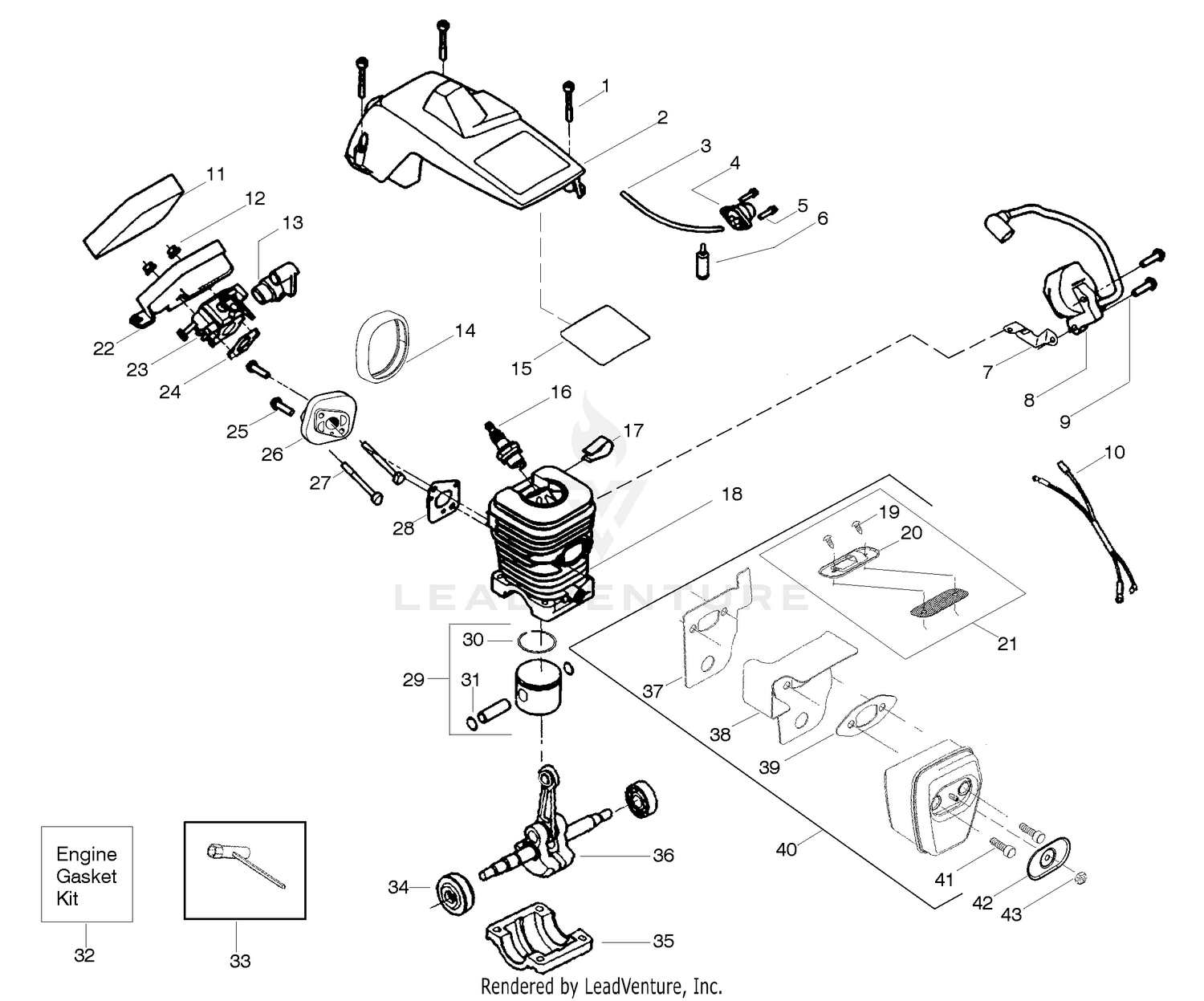

| Ref | Part Number | Description |
|---|
| 1 |
3-9226 |
Wire Price: Call Us |
| 1 |
530016153 |
Screw Price: $1.99 |
| 2 |
3220-2 |
NUT-JAM Price: $0.50 |
| 3 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 3 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 4 |
218-220 |
Solenoid Price: Call Us |
| 4 |
530071835 |
Kit-Purge Bulb Assy. Price: $5.99 |
| 5 |
3290-134 |
SCREW Price: $0.27 |
| 5 |
530015780 |
Screw Price: $1.99 |
| 6 |
3219-14 |
NUT-HEX Price: $0.25 |
| 6 |
530095646 |
Assy-Fuel Pick-up Price: $2.99 |
| 7 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 7 |
530047442 |
Strap-Ground Price: $1.99 |
| 8 |
3-9225 |
Wire Price: Call Us |
| 8 |
530039198 |
Ignition Module Price: $29.99 |
| 9 |
3217-6 |
NUT-HEX Price: $1.19 |
| 9 |
530015814 |
Screw Price: $1.99 |
| 10 |
2412-31 |
CLAMP-BODEN Price: $1.56 |
| 10 |
530052296 |
Assy-Wire Harness Price: $4.99 |
| 11 |
3-8946 |
DISCONTINUED Price: Call Us |
| 11 |
530037793 |
Foam- Air Filter Price: $1.99 |
| 12 |
3220-7 |
NUT-JAM Price: $4.09 |
| 12 |
530016101 |
Nut Price: $1.99 |
| 13 |
3-8928 |
DISCONTINUED Price: Call Us |
| 13 |
530035526 |
Grommet-Carb Adjust Price: Call Us |
| 14 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 14 |
530054144 |
Seal-Carb Adapter Price: $2.99 |
| 15 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 15 |
530055698 |
Reflector-Heat Price: $1.99 |
| 16 |
324-6 |
SCREW-HH Price: $0.81 |
| 16 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99 |
| 17 |
5-0786 |
KEY Price: $13.87 |
| 17 |
530016136 |
Clip-High Tension Lead Price: $1.99 |
| 18 |
3246-4 |
SCREW-SET Price: $0.75 |
| 18 |
530012550 |
Cylinder Price: $17.99 |
| 19 |
321-2 |
SCREW-HH Price: $2.79 |
| 19 |
530016351 |
Screw-Outlet cover Price: $1.99 |
| 20 |
5-2944 |
Heat Shield, Upper Price: Call Us |
| 20 |
530055759 |
Cover - Outlet Price: $2.99 |
| 21 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 22 |
49-8110 |
HANDLE GRIP This part replaces 235-11. Price: $13.80 |
| 22 |
530057480 |
Air Filter Housing Price: $4.99 |
| 23 |
5-3443 |
Heat Shield, Lower Price: Call Us |
| 23 |
545081885 |
Kit-Carburetor (Walbro-WT-89) This part replaces 530071820. Price: $22.99 |
| 24 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 24 |
530069608 |
Gasket-Carb. (kit) Price: $5.99 |
| 25 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 25 |
530016386 |
Screw Price: $5.99 |
| 26 |
5-1671 |
DISCONTINUED Price: Call Us |
| 26 |
530049700 |
Carb. Adapter Price: $3.99 |
| 27 |
5-1667 |
DISCONTINUED Price: Call Us |
| 27 |
530016187 |
Screw Price: $1.99 |
| 28 |
3-9351 |
EXT SPRING *R Price: $47.40 |
| 28 |
530069608 |
Gasket- Adaptor(kit) Price: $5.99 |
| 29 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 30 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 30 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 31 |
3-8997 |
DISCONTINUED Price: Call Us |
| 31 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 32 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 33 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 33 |
530031163 |
Bar Wrench Price: $4.99 |
| 34 |
323-7 |
SCREW-HH Price: $0.65 |
| 34 |
530056363 |
Assy-Seal & Bearing Price: $11.99 |
| 35 |
3218-3 |
NUT-JAM Price: $0.25 |
| 35 |
530037935 |
Cap-Crankcase Price: $8.99 |
| 36 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 36 |
545113101 |
CRANKSHAFT ASSY This part replaces 530047062. Price: $54.99 |
| 37 |
5-2793 |
DISCONTINUED Price: Call Us |
| 37 |
530054885 |
Backplate Price: $5.99 |
| 38 |
5-1853 |
DISCONTINUED Price: Call Us |
| 38 |
530054880 |
Guide-Outlet Price: $5.99 |
| 39 |
321-6 |
SCREW-HH Price: $0.25 |
| 39 |
530069608 |
Gasket-Muffler(kit) Price: $5.99 |
| 40 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 41 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 41 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 42 |
5-0701 |
ANCHOR Price: $4.07 |
| 42 |
530055586 |
Cover-Bolt Price: $0.99 |
| 43 |
3-9026 |
DISCONTINUED Price: Call Us |
| 43 |
574266401 |
NUT 10MM BRASS This part replaces 530016359. Price: $1.99 |
| 44 |
3-8945 |
DISCONTINUED Price: Call Us |
| 45 |
3220-3 |
NUT-HJ Price: $0.28 |
| 46 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 47 |
282-1 |
DISCONTINUED Price: Call Us |
| 48 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 49 |
5-3843 |
Spacer, Idler Price: Call Us |
| 50 |
5-3840 |
DISCONTINUED Price: Call Us |
| 51 |
323-10 |
SCREW-HH Price: $0.89 |
| 52 |
321-6 |
SCREW-HH Price: $0.25 |
| 53 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 54 |
2212-16 |
DISCONTINUED Price: Call Us |
| 55 |
3-9263 |
DISCONTINUED Price: Call Us |
| 56 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 57 |
3217-5 |
NUT-HEX Price: $0.25 |
| 58 |
3217-7 |
NUT-HEX Price: $0.28 |
| 59 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 60 |
323-7 |
SCREW-HH Price: $0.65 |
| 61 |
2812-4 |
REDUCER-PIPE Price: $9.67 |
| 62 |
324-4 |
SCREW-HH Price: $0.95 |
| 63 |
5-2390 |
DISCONTINUED Price: Call Us |
| 64 |
5-1626 |
DISCONTINUED Price: Call Us |
| 65 |
5-1628 |
DISCONTINUED Price: Call Us |
| 66 |
3-9066 |
DISCONTINUED Price: Call Us |
| 67 |
3-9001 |
DISCONTINUED Price: Call Us |
| 68 |
5-3270 |
DISCONTINUED Price: Call Us |
| 69 |
2811-9 |
FITTING-ELBOW-90 Price: $15.86 |
| 70 |
3290-153 |
DISCONTINUED Price: Call Us |
| 71 |
289-25 |
DISCONTINUED Price: Call Us |
| 72 |
288-3 |
DISCONTINUED Price: Call Us |
| 73 |
5-2665 |
DISCONTINUED Price: Call Us |
| 74 |
3-8947 |
DISCONTINUED Price: Call Us |
