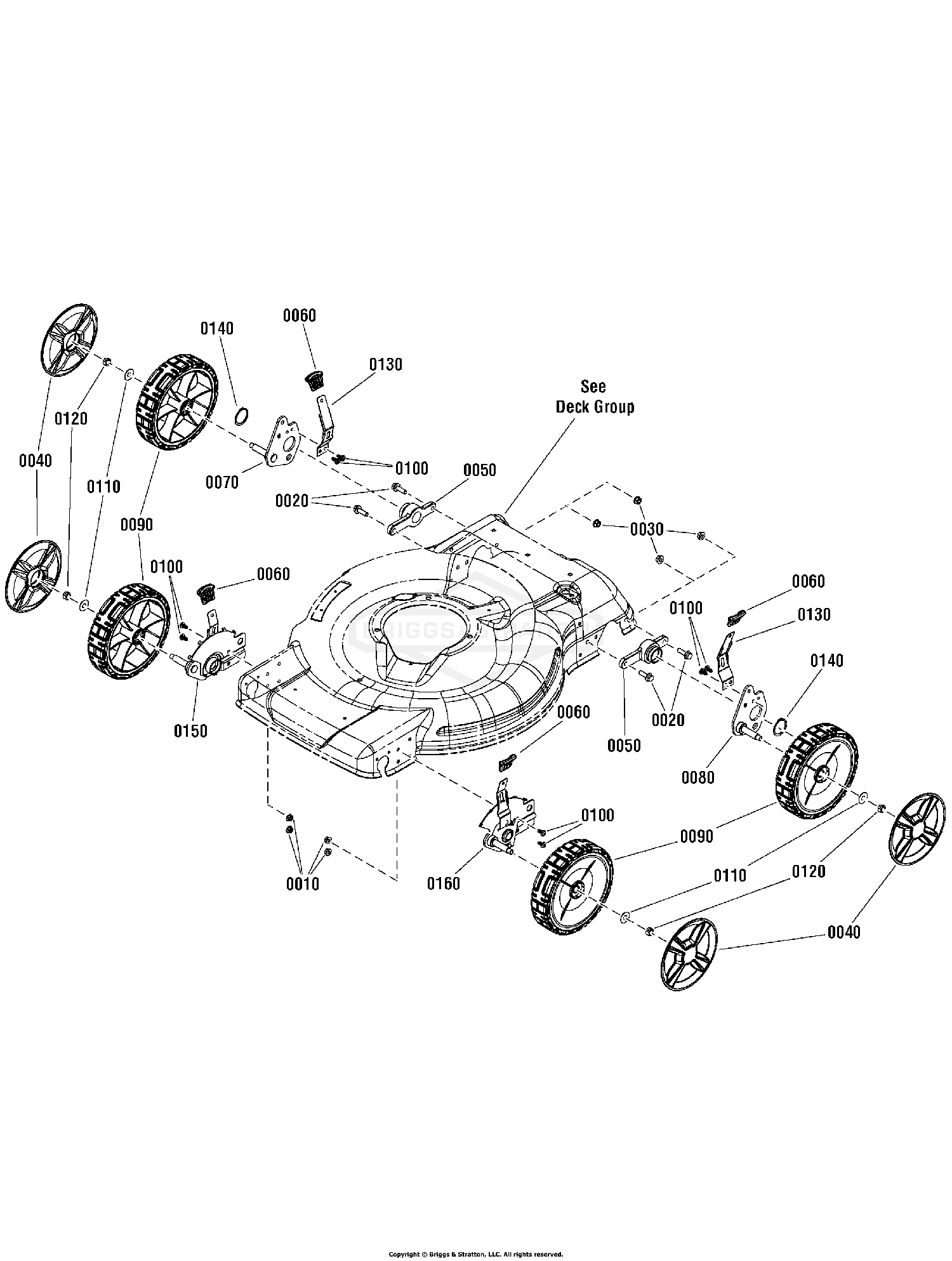

Wheel & 4PT HOC, Push

Wheel & 4PT HOC, Push

Parts (15)

RefPart NumberDescription
0010 703233 NUT, 1/4-20, GR5 This part replaces 7091584. Price: $3.94
0020 703410 BOLT,5/16-18X1 This part replaces 7091591. Price: $3.61
0030 703409 NUT, 5/16-18, GR5 This part replaces 7091601. Price: $4.92
0040 7101350YP HUBCAP, 8” & 9” Spoked Wheel, 6.51” OD, Gray This part replaces 7101350. Price: $9.53
0050 7103290YP HOLDER, Bearing, Rear Wheel Drive This part replaces 7103290. Price: $11.65
0060 7103793YP GRIP, HT LATCH, BLACK This part replaces 7103793. Price: $3.73
0070 7501516YP WELDMENT, Axle Plate, RR, 8" This part replaces 7501516. Price: $11.39
0080 7501518YP WELDMENT, Axle Plate, LR, 8" This part replaces 7501518. Price: $11.59
0090 7502544YP ASSY,8X2 IDLE W/BUSHI This part replaces 7502544. Price: $34.02
0100 703961 SCREW, 1/4-20 X .625, Self-Tapping, Zinc/Clear This part replaces 7900067. Price: $3.61
0110 722604 WASHER, Flat, .031" X .382" ID.X1.00" OD Price: Call Us
0120 703347 NUT, 3/8-16 This part replaces 7091585. Price: $4.26
0130 7103550YP LEVER, 4-point HOC This part replaces 7103550. Price: $7.37
0140 7900010YP SNAP RING, 1-3/8, HD This part replaces 7900010. Price: $3.52
0150 7600189YP ASSEMBLY, Height-Of-Cut, Right Front, Push This part replaces 7600189. Price: Call Us
