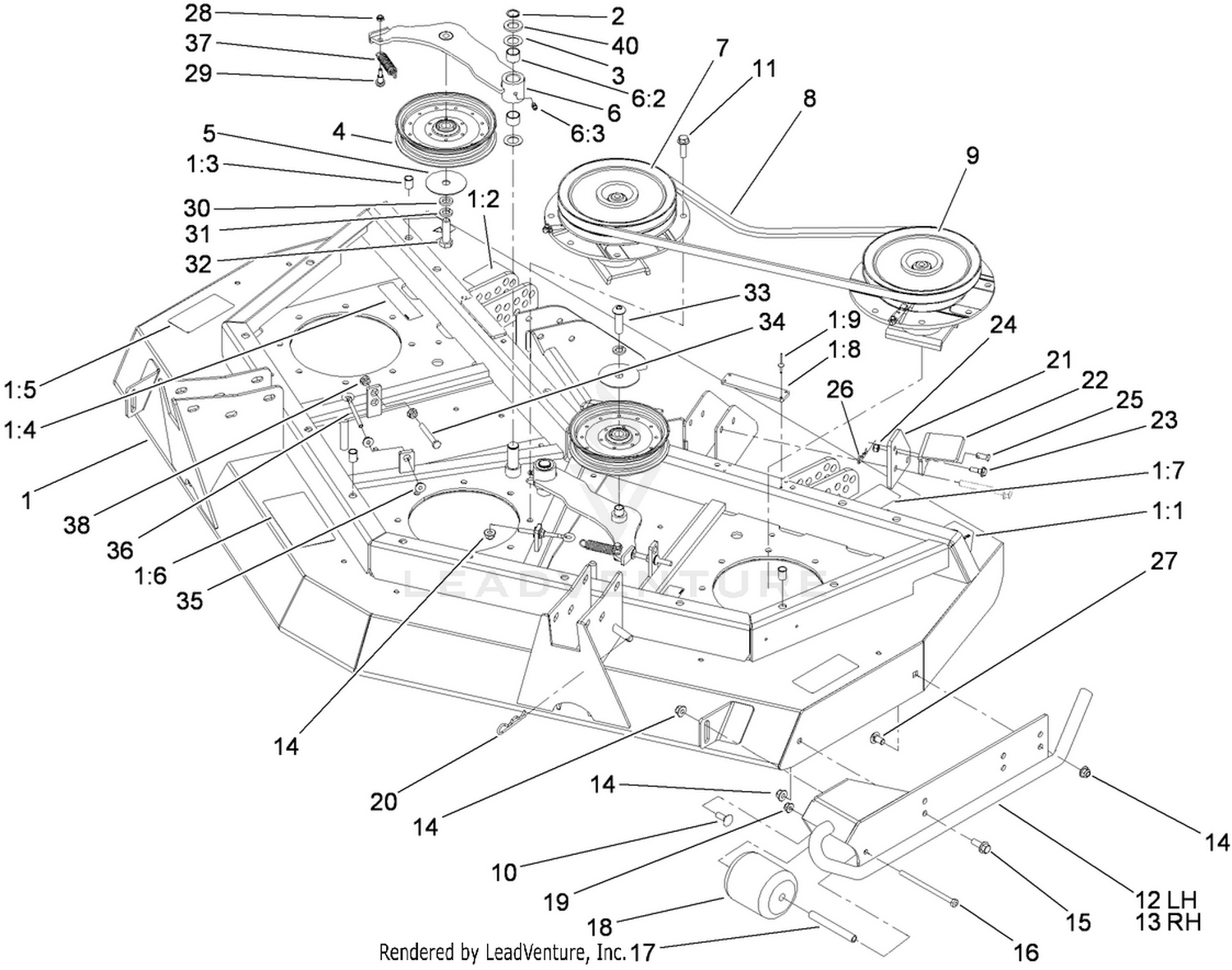

| Ref | Part Number | Description |
|---|
| 1 |
120-4052 |
FRONT DECK ASM This part replaces 110-3294. Price: $3,118.91 |
| 2 |
32120-72 |
RING-SNAP Price: $2.09 |
| 3 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 4 |
132-9421 |
PULLEY-IDLER, FLAT This part replaces 110-9596. Price: $41.10 |
| 5 |
100-3102 |
WASHER-FLAT Price: $3.70 |
| 6 |
110-6128 |
IDLER ARM ASM Price: Call Us |
| 7 |
139-1037 |
DOUBLE DRIVEN SPINDLE ASM This part replaces 104-3530. Price: $724.15 |
| 8 |
108-8076 |
V-BELT, DECK Price: $29.86 |
| 9 |
139-1038 |
HIGH DRIVEN SPINDLE ASM This part replaces 104-3531. Price: $691.39 |
| 10 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 11 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 12 |
100-5612-01 |
LH SKID ASM Price: $188.25 |
| 13 |
100-5605-01 |
RH SKID ASM Price: $188.25 |
| 14 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 15 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 16 |
322-29 |
SCREW-HH Price: $2.69 |
| 17 |
105-4549 |
SPACER-ROLLER Price: $10.26 |
| 18 |
93-4803 |
ROLLER-DECK Price: $41.58 |
| 19 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 20 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 21 |
106-2033-01 |
PLATE-LATCH Price: $18.00 |
| 22 |
106-2032-01 |
LATCH-DECK Price: $19.24 |
| 23 |
11-9030 |
SCREW-SHOULDER Price: $5.63 |
| 24 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 25 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 26 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 27 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 28 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 29 |
104-0858 |
BOLT-SHOULDER Price: $4.69 |
| 30 |
920242 |
WASHER-FLAT This part replaces 9202424. Price: $5.19 |
| 31 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 32 |
325-7 |
SCREW-HH Price: $1.53 |
| 33 |
108-1993 |
SCREW-HSBH Price: $3.66 |
| 34 |
139-1728 |
BOLT-HH FT This part replaces 9114524. Price: $1.29 |
| 35 |
32128-14 |
NUT-HF Price: $0.41 |
| 36 |
68-0090 |
SCREW-ADJUSTING Price: $7.49 |
| 37 |
107938 |
SPRING-EXTENSION Price: $9.99 |
| 38 |
32128-26 |
NUT-FLANGE Price: $5.89 |
