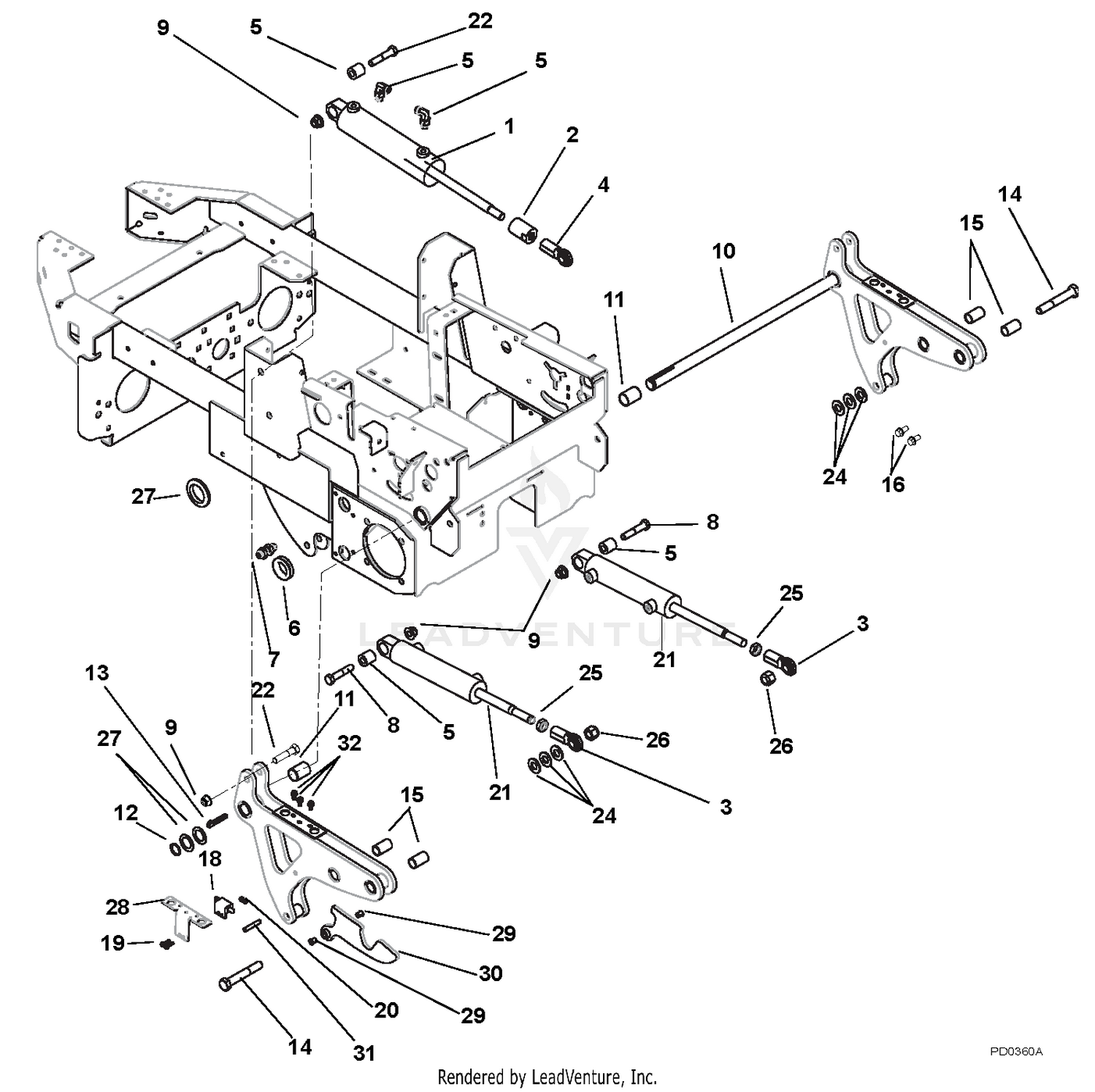

| Ref | Part Number | Description |
|---|
| 1 |
00585100 |
CYLINDER, HYD. DECK LIFT Price: $190.95 |
| 2 |
04319700 |
SPACER,CYLINDER STOP,1.50X2.00 Price: $32.95 |
| 3 |
09221600 |
ROD END, 5/8 RH - FEMALE Price: $20.45 |
| 4 |
07000045 |
ADPTR,HYD FTG 90 M4F-M6O C5OLO Price: $16.45 |
| 5 |
09215200 |
BUSHING, .516X1.000X1.050 LG Price: $31.95 |
| 6 |
07536800 |
GROMMET 1.25ID X 1.5OD Price: $12.45 |
| 7 |
07000044 |
FTG,HYD BULKHEAD M4F-M4F Price: Call Us |
| 8 |
05901835 |
BLT, HEX .50-13X2.25 G5 ZCC This part replaces 05961000. Price: $3.45 |
| 9 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 10 |
04263600 |
WMT,MAIN ARM ASSY W/SHAFT Price: $282.95 |
| 11 |
05500034 |
BSHG,1.00ID X 1.125OD X 1.50LG Price: $6.45 |
| 12 |
05707300 |
RG-RTNG-EXT 1.00X.078 Price: $2.95 |
| 13 |
00512500 |
KEY, GIB .25 X 1.5 Price: $6.95 |
| 14 |
05901501 |
BLT-HEX .62-11X4.0 GR5 YWZC Price: Call Us |
| 15 |
05400717 |
BRG,.75X.875X1.50 Price: $4.95 |
| 16 |
07400129 |
SCR,TAP .375-16X.75 HWH TR ZCC This part replaces 07415400. Price: $1.45 |
| 18 |
03657100 |
SWITCH- SINGLE POLE N.O. Price: $8.45 |
| 19 |
05901837 |
BLT, HWH #10-24X.75 ZCC This part replaces 06116900. Price: $1.95 |
| 20 |
06500915 |
NUT-LK-NYL #10-24 G2 ZCC This part replaces 06536000. Price: $0.45 |
| 21 |
04864700 |
CYLINDER, LIFT This part replaces 09264800. Price: $415.95 |
| 22 |
05901712 |
BLT, HEX .50-13X2.50 G5 ZCC This part replaces 05966600. Price: $3.45 |
| 23 |
07500017 |
GROMMET 1.70ID X 2.0OD Price: $4.95 |
| 24 |
06401118 |
WSHR, FLT .656X1.313X.095 ZCC This part replaces 06442800. Price: $2.45 |
| 25 |
06539600 |
NUT-JAM .625-18 YWZC Price: $3.95 |
| 27 |
06435300 |
WSHR-HDND-THRUST 1.00X1.55X.03 Price: $4.45 |
| 28 |
04229753 |
BRKT,SWITCH MOUNTING - RED Price: $5.45 |
| 29 |
05501040 |
BSHG-FLG, SPLIT NYLINER .31"ID Price: $3.45 |
| 30 |
04228153 |
WMT,ROCKER ARM,SWITCH - RED Price: $12.95 |
| 31 |
05800206 |
ROLL PIN 5/16 X 1 7/8 Price: Call Us |
