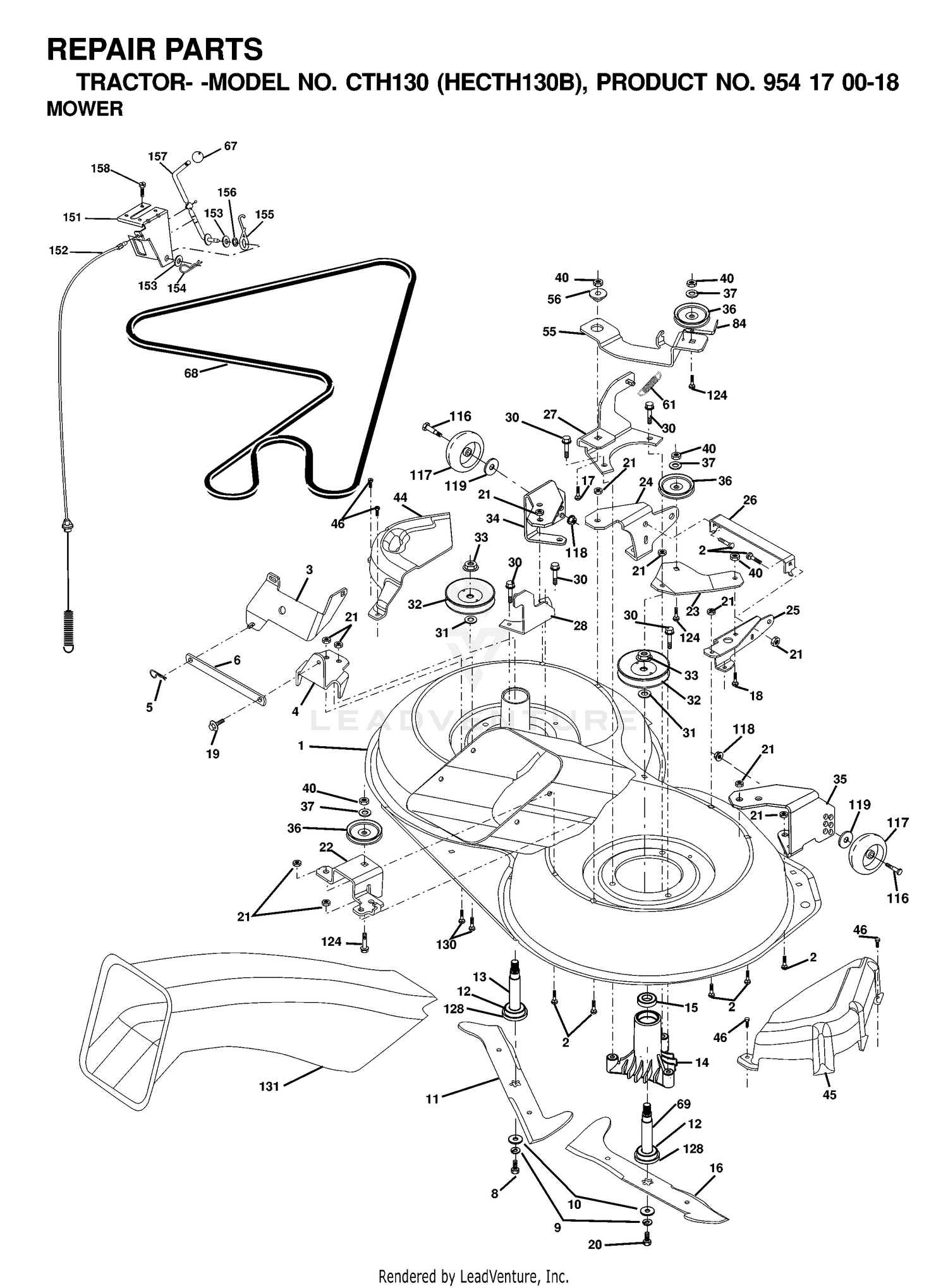

| Ref | Part Number | Description |
|---|
| 1 |
532176029 |
DECK.SVCX1.92.CRD This part replaces 532165552. Price: $229.99 |
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 3 |
532165569 |
BRACKET Price: $23.99 |
| 4 |
532165558 |
BRACKET Price: $14.76 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
532165557 |
BAR.SWAY.92.CRD Price: $6.99 |
| 8 |
532850857 |
BLADE BOLT Price: $3.99 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 11 |
532426323 |
KIT.SVC.BLADES.3-1.92.CRD This part replaces 532170037. Price: $49.99 |
| 12 |
532129895 |
BEARING.BALL.#6204.(MANDREL) Price: $9.99 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 14 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
532426322 |
KIT.SVC.BLADES.3-1 L/RH.92.CRD This part replaces 532170038. Price: $49.99 |
| 17 |
595901101 |
Bolts This part replaces 872140610. Price: $3.99 |
| 18 |
596728201 |
Bolts This part replaces 872110608. Price: $3.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
532165484 |
BOLT Price: $4.99 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
532165243 |
BRACKET Price: $17.99 |
| 23 |
532165446 |
BRACKET Price: $5.99 |
| 24 |
532165242 |
BRACKET Price: $12.99 |
| 25 |
532165244 |
BRACKET Price: $22.99 |
| 26 |
583259301 |
BRACE.SUSP.FRONT.CRD/36.2006 This part replaces 532165237. Price: $29.99 |
| 27 |
532165568 |
BRACKET Price: $22.99 |
| 28 |
532165567 |
BRACKET Price: $17.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532157722. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $3.99 |
| 32 |
532173434 |
MANDREL PULLEY This part replaces 532153531. Price: $14.99 |
| 33 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $7.99 |
| 34 |
532165239 |
BRACKET Price: $13.30 |
| 35 |
532165238 |
BRACKET Price: $13.30 |
| 36 |
593787801 |
PULLEYS This part replaces 532146763. Price: $27.99 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 40 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 44 |
532165724 |
COVER.MANDREL.LH.92.CRD Price: $52.99 |
| 45 |
532175539 |
COVER.MANDREL.RH.CRD This part replaces 532165556. Price: $17.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 55 |
532165445 |
ARM IDLER Price: $11.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER Price: $5.99 |
| 61 |
532165945 |
SPRING.TENSION.BELT Price: $11.99 |
| 67 |
532106932 |
KNOB T (3/8 HOLE) Price: $6.99 |
| 68 |
531007550 |
NEEDS DESCRIPTION Price: Call Us |
| 69 |
532165482 |
SHAFT.ASM.W/LWR.BRG.RH.THREAD Price: $59.99 |
| 84 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 116 |
596434404 |
Bolts This part replaces 532137644. Price: $4.99 |
| 117 |
532133957 |
WHEEL GAGE DONUT Price: $11.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 124 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 128 |
532153390 |
WASHER FELT Price: $3.99 |
| 130 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 151 |
532169670 |
BRACKET.CLUTCH.CABLE Price: $17.99 |
| 152 |
532170300 |
Cable Clutch CRD Service Price: Call Us |
| 153 |
596140201 |
Washers This part replaces 532169674. Price: $2.99 |
| 154 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 155 |
532169671 |
SPRING RETENTION LEVER Price: $4.99 |
| 156 |
532169672 |
SPACER.CLUTCH.CABLE Price: $4.99 |
| 157 |
532169669 |
ROD CLUTCH CABLE 3/8" Price: $27.99 |
| 158 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
