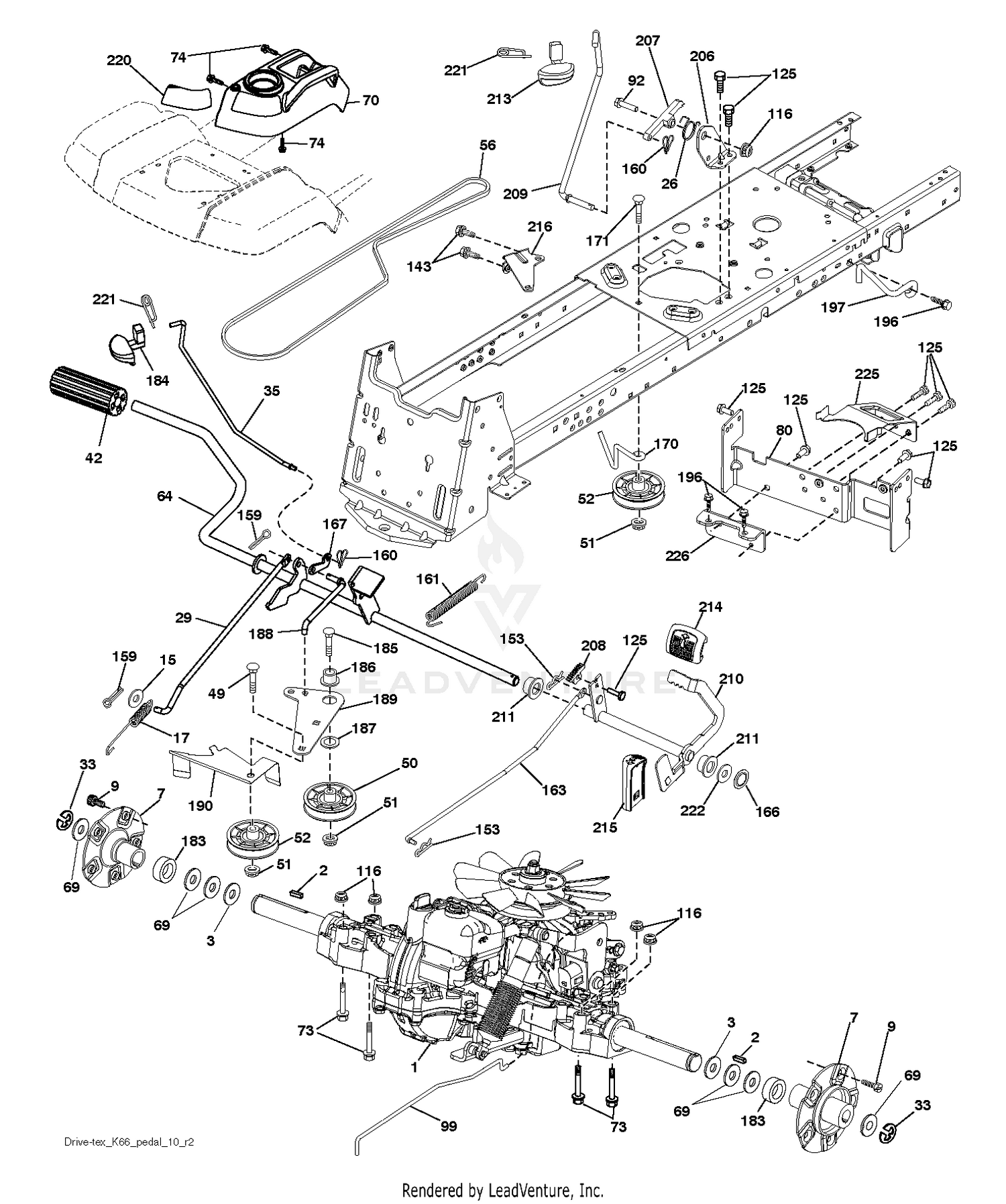

| Ref | Part Number | Description |
|---|
| 1 |
112-1350 |
STARTER ASM This part replaces 70-8760. Price: $448.98 |
| 2 |
532007070 |
KEY 1/4 X 2.5 Price: $4.99 |
| 2 |
67-4610 |
BOLT W/WASHER Price: $2.32 |
| 3 |
532007563 |
WASHER T Price: $6.99 |
| 3 |
70-8770 |
FRONT BRACKET ASM Price: $181.75 |
| 4 |
67-4720 |
LEVER ASSEMBLY Price: $19.98 |
| 5 |
67-4730 |
DISCONTINUED Price: Call Us |
| 6 |
70-8780 |
DISCONTINUED Price: Call Us |
| 7 |
531149201 |
SERVICE KIT HUB.ASM HUB.ASM.WH This part replaces 532199837. Price: $39.99 |
| 7 |
56-1560 |
SWITCH ASM This part replaces 67-4750. Price: $440.70 |
| 8 |
56-1570 |
BOLT Price: $6.29 |
| 9 |
56-1680 |
COVER SET Price: $20.80 |
| 9 |
596218701 |
Bolts This part replaces 532140080. Price: $2.99 |
| 10 |
56-1670 |
GEAR Price: $119.60 |
| 11 |
67-4790 |
DISCONTINUED Price: Call Us |
| 12 |
67-4780 |
GEAR SET Price: $434.34 |
| 13 |
56-1640 |
STOPPER SET Price: $18.99 |
| 14 |
67-4770 |
PINION SET Price: $192.09 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 15 |
67-4760 |
SHAFT ASSEMBLY Price: $835.38 |
| 16 |
56-1610 |
BOLT Price: $6.86 |
| 17 |
532401072 |
SPRING.BRAKE.K46 Price: $6.99 |
| 17 |
56-1720 |
REAR BRKT Price: $150.01 |
| 18 |
93-3573 |
HOLDER ASSY-BRUSH This part replaces 56-1700. Price: $83.00 |
| 19 |
56-1710 |
DISCONTINUED Price: Call Us |
| 20 |
112-1350 |
STARTER ASM This part replaces 67-4800. Price: $448.98 |
| 21 |
93-3564 |
BEARING REAR This part replaces 56-1600. Price: $33.38 |
| 22 |
56-1590 |
FRONT BRG Price: $44.07 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 29 |
532407245 |
ROD.BRAKE.K66 Price: $14.99 |
| 33 |
812000053 |
E RING HYT Price: $3.99 |
| 35 |
583864502 |
Rods This part replaces 532435486. Price: $6.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
532125907 |
BELT Price: $34.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 69 |
532123800 |
WASHER Price: $3.99 |
| 70 |
532439661 |
CONSOLE.ASM.RH.GT.FC.HUSQ Price: $79.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
589333402 |
STRAP.PNT.TORQUE.K66.EDIP This part replaces 532407182. Price: $22.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532415744 |
ROD.SPRING.BYPASS.K66.GT.Z Price: $7.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
532407246 |
ROD.PEDAL.CONTROL Price: $37.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 183 |
532197357 |
SPACER.AXLE.HG.TEX Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532441455. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532199769 |
BRKT.ANIT-ROTATION.CLUTCH Price: $6.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532197860 |
ROCKER.ASM.PEDAL.CONTR Price: $44.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 220 |
532198908 |
REFLECTOR.RH.TEX GT Price: $14.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 225 |
532407311 |
KEEPER.BELT.TRANSAXLE.K66 Price: $11.99 |
