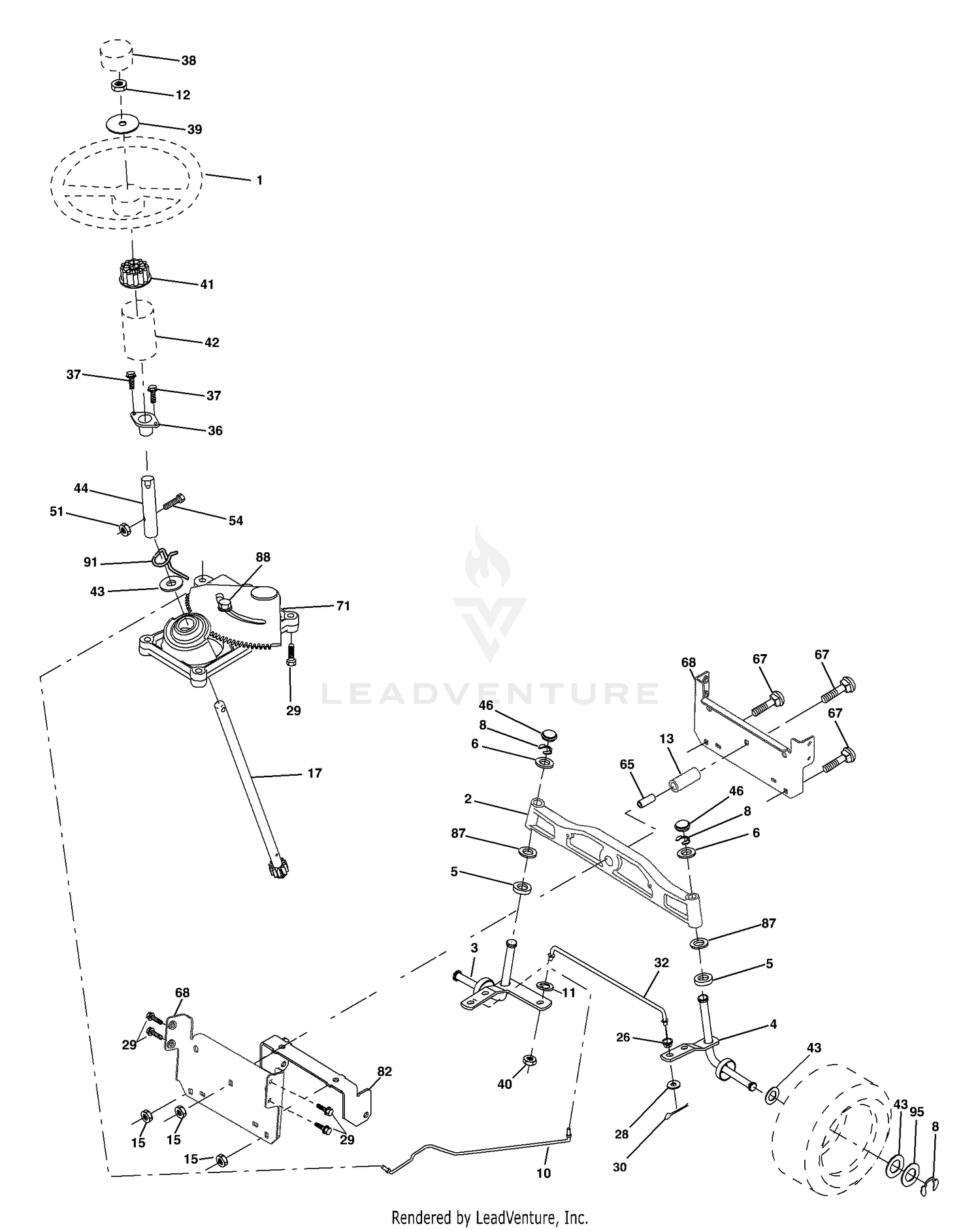

| Ref | Part Number | Description |
|---|
| 1 |
184704X428 |
Wheel Steering Price: Call Us |
| 2 |
184706 |
Axle Asm Cast Iron LT Price: Call Us |
| 3 |
169840 |
Spindle Asm LH Price: Call Us |
| 4 |
169839 |
Spindle Asm RH Price: Call Us |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 010 |
98-9678 |
IDLE APPARATUS ASM Price: $43.48 |
| 10 |
175121 |
Link Drag Price: Call Us |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 12 |
73940800 |
Nut Hex Jam Toplock 1/2-20 unf Price: Call Us |
| 13 |
136518 |
Spacer Brg Axle Front Price: Call Us |
| 15 |
145212 |
Nut Hex Flange Lock Price: Call Us |
| 17 |
180641 |
Shaft Asm Steering Price: Call Us |
| 020 |
112-7014 |
ADJUSTING BOLT ASM This part replaces 98-9679. Price: $14.56 |
| 26 |
126847X |
Bushing Link Drag Price: Call Us |
| 28 |
19131416 |
Washer 13/32 x 7/8 x 16 Ga. Price: Call Us |
| 29 |
17000612 |
Screw 3/8-16 x .75 Price: Call Us |
| 030 |
98-9439 |
NUT Price: $0.74 |
| 30 |
76020412 |
Pin Cotter 1/8 x 3/4 Price: Call Us |
| 32 |
130465 |
Rod Tie Price: Call Us |
| 36 |
155099 |
Bushing Strg Price: Call Us |
| 37 |
152927 |
Screw Price: Call Us |
| 38 |
159946X428 |
Insert Cap Strg Wh Price: Call Us |
| 39 |
19182411 |
Washer 9/16 x 1 1/20 x 11 Ga. Price: Call Us |
| 040 |
99-8387 |
NUT-CAP This part replaces 105-3785. Price: $2.74 |
| 40 |
73540600 |
Crownlock nut Price: Call Us |
| 41 |
159945 |
Adaptor Wheel Strg Price: Call Us |
| 42 |
145054X428 |
Boot Steering Dash Price: Call Us |
| 43 |
121749X |
Washer 25/32 x 1 1/4 x 16 Ga. Price: Call Us |
| 44 |
180640 |
Extension Steering Shaft Price: Call Us |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 050 |
98-7654 |
GASKET Price: $8.84 |
| 51 |
73540400 |
Nut Crownlock 1/4-28 Price: Call Us |
| 54 |
71130420 |
Bolt Hex 1/4-28 unf x 1-1/4 Gr. 8 Price: Call Us |
| 060 |
98-7656 |
CAP Price: $7.29 |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72110618 |
Bolt RDHD SQNK 3/8-16 x 2 1/4 Price: Call Us |
| 68 |
169827 |
Axle, Brace Price: Call Us |
| 070 |
112-7015 |
BOLT-ADJUSTING This part replaces 98-9557. Price: $6.24 |
| 71 |
175146 |
Steering Asm Price: Call Us |
| 080 |
99-3512 |
NUT Price: $4.75 |
| 82 |
169835 |
Bracket Susp Chassis Front Price: Call Us |
| 87 |
173966 |
Washer Flat .781 x 1-1/2 x .14 Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 unc Price: Call Us |
| 090 |
99-8387 |
NUT-CAP This part replaces 105-3785. Price: $2.74 |
| 91 |
175553 |
Clip Steering Price: Call Us |
| 100 |
98-7654 |
GASKET Price: $8.84 |
| 120 |
112-7016 |
COVER-PUMP This part replaces 98-9640. Price: $24.52 |
| 130 |
107-9081 |
GASKET This part replaces 99-8389. Price: $3.94 |
| 140 |
104-5155 |
SOLENOID-STOP Price: $244.96 |
| 150 |
98-9683 |
GASKET-COVER, SOLENOID Price: $1.92 |
| 160 |
105-3799 |
BOLT-HSH Price: $0.84 |
