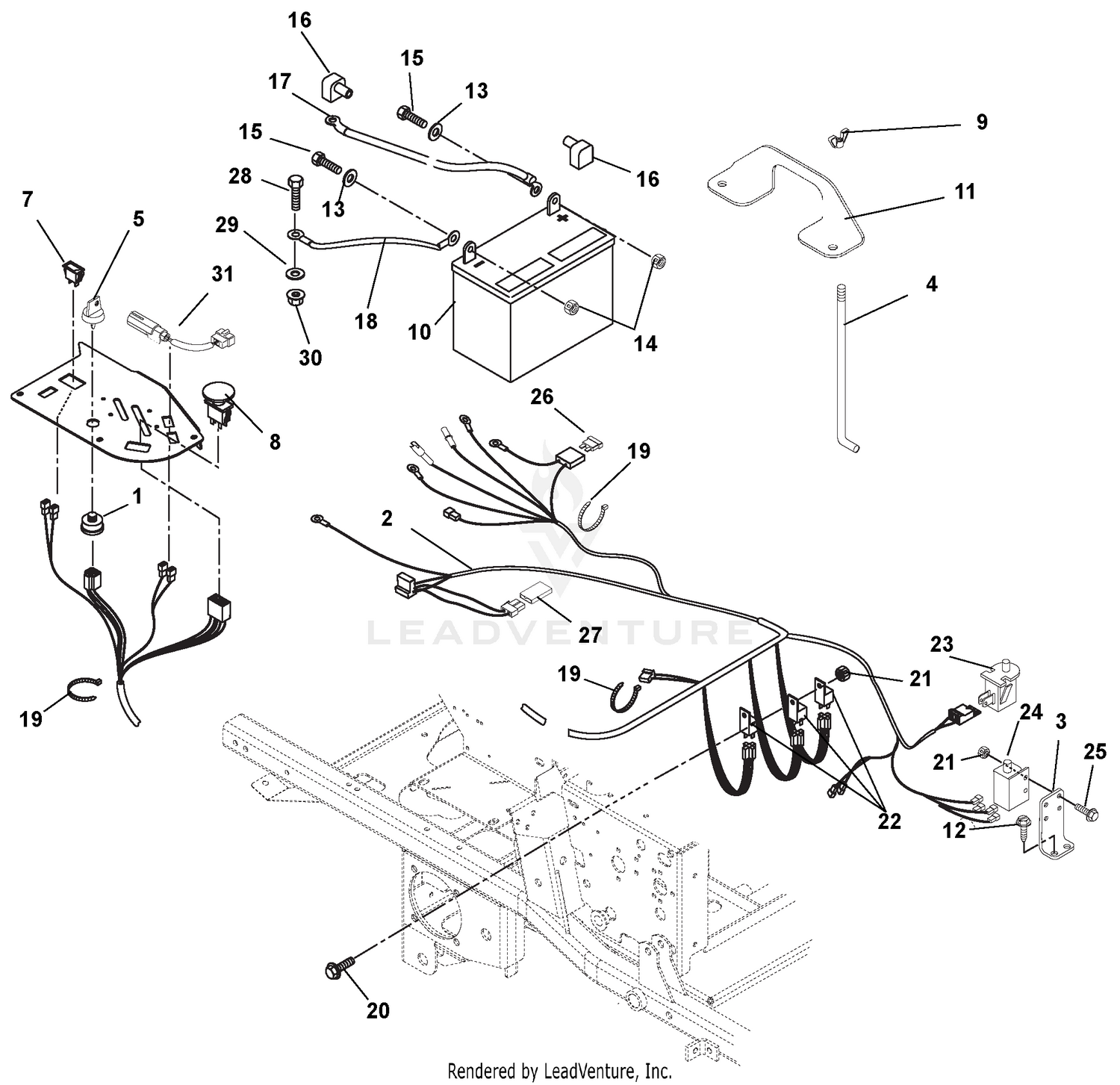

| Ref | Part Number | Description |
|---|
| 1 |
04331600 |
SWITCH, IGNITION This part replaces 00464000. Price: $41.95 |
| 2 |
04294000 |
HARNESS-WIRE PM200 VERT. A/C Price: $149.95 |
| 3 |
09275851 |
MOUNT, SAFETY SWITCH Price: $17.45 |
| 4 |
09291900 |
ROD,BATTERY HOLDDOWN Price: $25.45 |
| 5 |
09287000 |
KEY, W/ SHIELD Price: $14.95 |
| 6 |
21510400 |
IGNITION KEY SET Price: $9.45 |
| 7 |
09497400 |
HOUR METER This part replaces 03966800. Price: $22.45 |
| 8 |
01545600 |
SWITCH, CLUTCH Price: $23.95 |
| 9 |
06500805 |
NUT, LK-WING .25-20 ZCC This part replaces 06537500. Price: $4.45 |
| 10 |
01554800 |
BATTERY, 300 CCA 10U1L Price: $47.95 |
| 11 |
00428151 |
HOLDDOWN - BATTERY Price: $17.45 |
| 12 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07412000. Price: $0.45 |
| 13 |
06401001 |
WSHR,FLT .281X.625X.065 ZCC This part replaces 06437300. Price: $0.45 |
| 14 |
06500903 |
NUT-LK-TOP-FLG .250-20 GF ZCC This part replaces 06543500. Price: $0.95 |
| 15 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 16 |
00525800 |
BOOT, BATTERY TERMINAL-RED Price: $7.45 |
| 17 |
02727201 |
CABLE, STARTER 13.00" Price: $18.45 |
| 18 |
03287100 |
CABLE-GROUND .25 X 13.00 X .31 Price: $13.45 |
| 19 |
07517300 |
CABLE TIE LG 5-1/2 Price: $2.95 |
| 20 |
05901825 |
BLT, HWH #10-24X.50 ZCC This part replaces 06116700. Price: $0.45 |
| 21 |
06500915 |
NUT-LK-NYL #10-24 G2 ZCC This part replaces 06536000. Price: $0.45 |
| 23 |
02754100 |
SWITCH- SNAP MTG N.O. Price: $8.45 |
| 24 |
03606600 |
SWITCH- DOUBLE POLE N.O./N.O. Price: $15.45 |
| 25 |
05901837 |
BLT, HWH #10-24X.75 ZCC This part replaces 06116900. Price: $1.95 |
| 27 |
09293501 |
DIODE, CONNECTOR SHELL This part replaces 09293500. Price: $10.45 |
| 28 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 29 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC This part replaces 06437200. Price: $0.45 |
| 30 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
