Home / OPE / 0057781 / 0057781 XG4000 220CC PS 49ST 2013-10-29 (8513565 - 8513565) / POWER UNIT

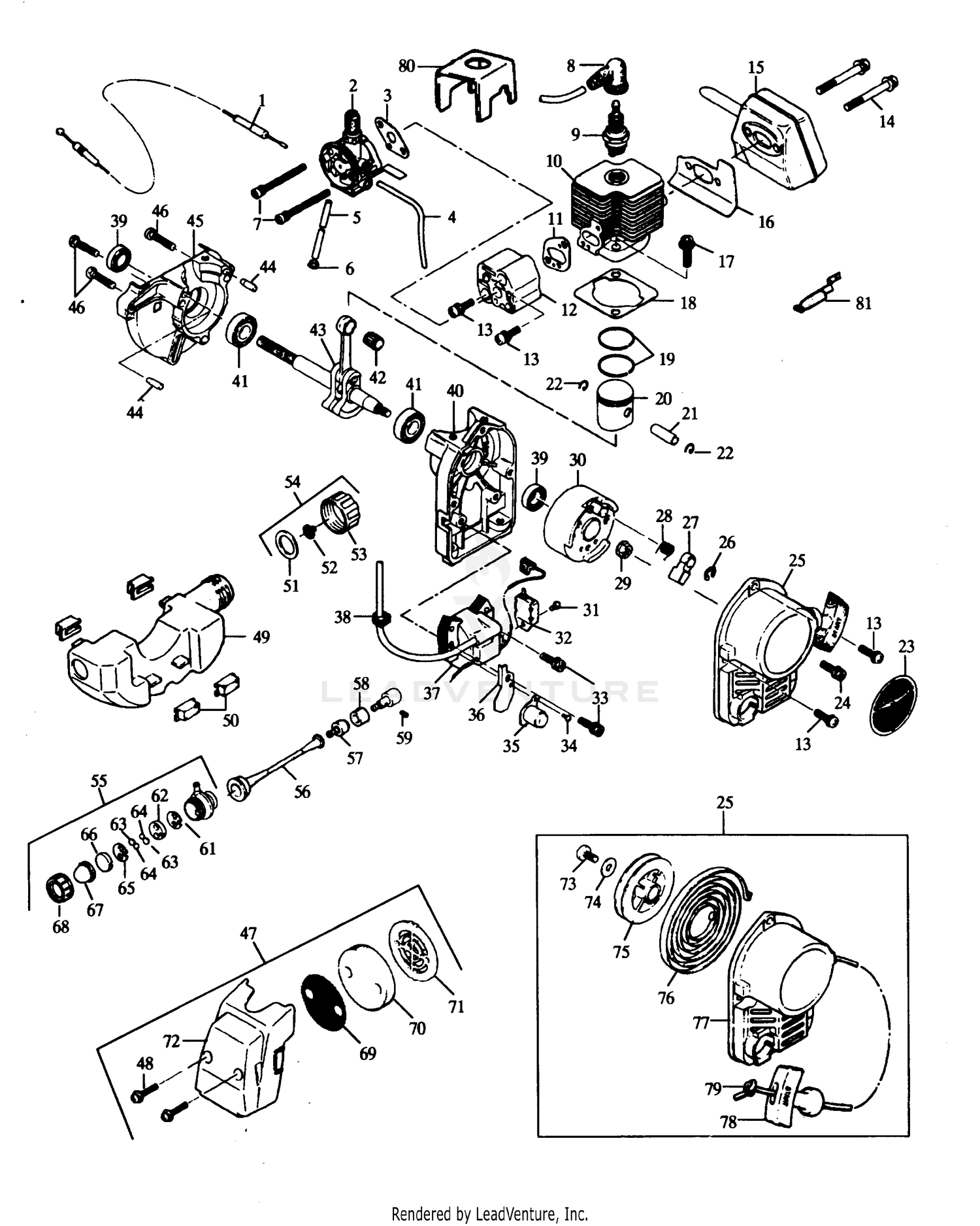

POWER UNIT

POWER UNIT

Parts (86)

RefPart NumberDescription
1 137-6112 TUBE ROLLER 3.0IN DIA X 23IN This part replaces 115-8292-03. Price: $201.73
1 534750001 Throttle Wire Price: $3.33
2 119-4289 SHAFT-REAR ROLLER 32IN (SHORT) Price: $252.89
2 534752100 Carburetor Price: $3.33
3 534754100 Carburetor Gasket Price: $3.33
4 534745900 Fuel Tube Price: $3.33
5 534746000 Fuel Tube Price: $3.33
6 534746500 Clip Price: $3.33
7 302-5 FITTING-GREASE Price: $0.59
7 534748400 Screw & Washer Price: $3.33
8 32151-62 RING-RETAINING Price: $1.49
8 534748300 Plug Cap Price: $3.33
9 119-1868 WASHER Price: $2.49
9 503235111 BPMR7A NGK SPARK PLUG This part replaces 530030005. Price: $3.99
10 119-4276 ROLLER-TIPPER Price: $89.28
10 534751003 Cylinder Price: $3.33
11 534754000 Insulator Gasket Price: $3.33
12 534752500 Insulator Price: $3.33
13 534748200 Screw & Washer Price: $3.33
14 534745100 Bolt & Washer Price: $3.33
15 534752600 Muffler Price: $3.33
16 534752700 Muffler Gasket Price: $3.33
17 534754600 Bolt Price: $3.33
18 534753900 Cylinder Gasket Price: $0.99
19 534752900 Top & Bottom Ring Price: $3.33
20 534752800 Piston Price: $3.33
21 534753000 Piston Pin Price: $3.33
22 534746600 Piston Pin Clip Price: $3.33
23 534754200 Name Label (Not a serviceable part) Price: $3.33
24 534754800 Screw & Washer Price: $3.33
25 534753300 Recoil Starter Price: $3.33
26 534754400 Snap Ring Price: $3.33
27 534753500 Ratchet Price: $3.33
28 534753800 Spring Return Price: $3.33
29 534754500 Nut Price: $3.33
30 534751200 Rotor Price: $3.33
31 534750100 Screw Price: $3.33
32 534751400 Transistor Unit Price: $34.99
33 534746400 Bolt & Washer Price: $3.33
34 534753600 Screw Price: $3.33
35 534751600 Stop Switch Price: $3.33
36 534751500 Bracket Price: $3.33
37 534751300 Ignition Coil Price: $3.33
38 534748100 Grommet Price: $3.33
39 534745200 Oil Seal Price: $3.33
40 534750800 Starter Case Price: $3.33
41 534754300 Ball Bearing Price: $3.33
42 534748000 Needle Bearing Price: $3.33
43 534751100 Crankshaft Ass'y. Price: $3.33
44 534753700 Knock Pin Price: $3.33
45 534750900 Case Drive Price: $3.33
46 534750200 Screw Price: $3.33
47 534750600 Air Cleaner Price: $3.33
48 534750300 Screw & Washer Price: $3.33
49 534726300 Fuel Tank Price: $6.99
50 114-5430 ROLLER REBUILD KIT Price: $99.53
50 534751800 Rubber Pad Price: $3.33
51 534728200 Gasket Price: $3.33
52 534783400 Umbrella Valve Price: $3.33
53 534727405 Cap Price: $3.33
54 534728300 Gas Cap Ass'y. (Incl. #51,52,53) Price: $4.12
55 534745300 Primer Pump Price: $3.33
56 534751700 Suction Hose Price: $3.33
57 534749000 Fuel Filter (Incl. 58,59) Price: $3.33
58 534749100 Filter Price: $3.33
59 534749200 Sponge Price: $3.33
61 534746300 Gasket Price: $3.33
62 534745400 Valve Seat Price: $3.33
63 534746100 Sponge Price: $3.33
64 534745600 Ball Price: $3.33
65 534745500 Gasket Price: $3.33
66 534746200 Valve Seat Price: $3.33
67 534745700 Cap Price: $2.99
68 534745800 Cap Nut Price: $3.33
69 534746800 Screen Price: $3.99
70 534746900 Element Price: $3.33
71 534754500 Grid Price: $3.33
72 534750700 Cleaner Case Price: $3.33
73 534753200 Screw Price: $3.33
74 534749400 Washer Price: $3.33
75 534753100 Reel Price: $3.33
76 534749300 Spiral Spring Price: $3.33
77 534753400 Starter Case Price: $3.33
78 534748900 Starter Knob Price: $3.33
79 534746700 Starter Rope Price: $3.33
80 534741200 Cylinder Cover Price: $3.33
