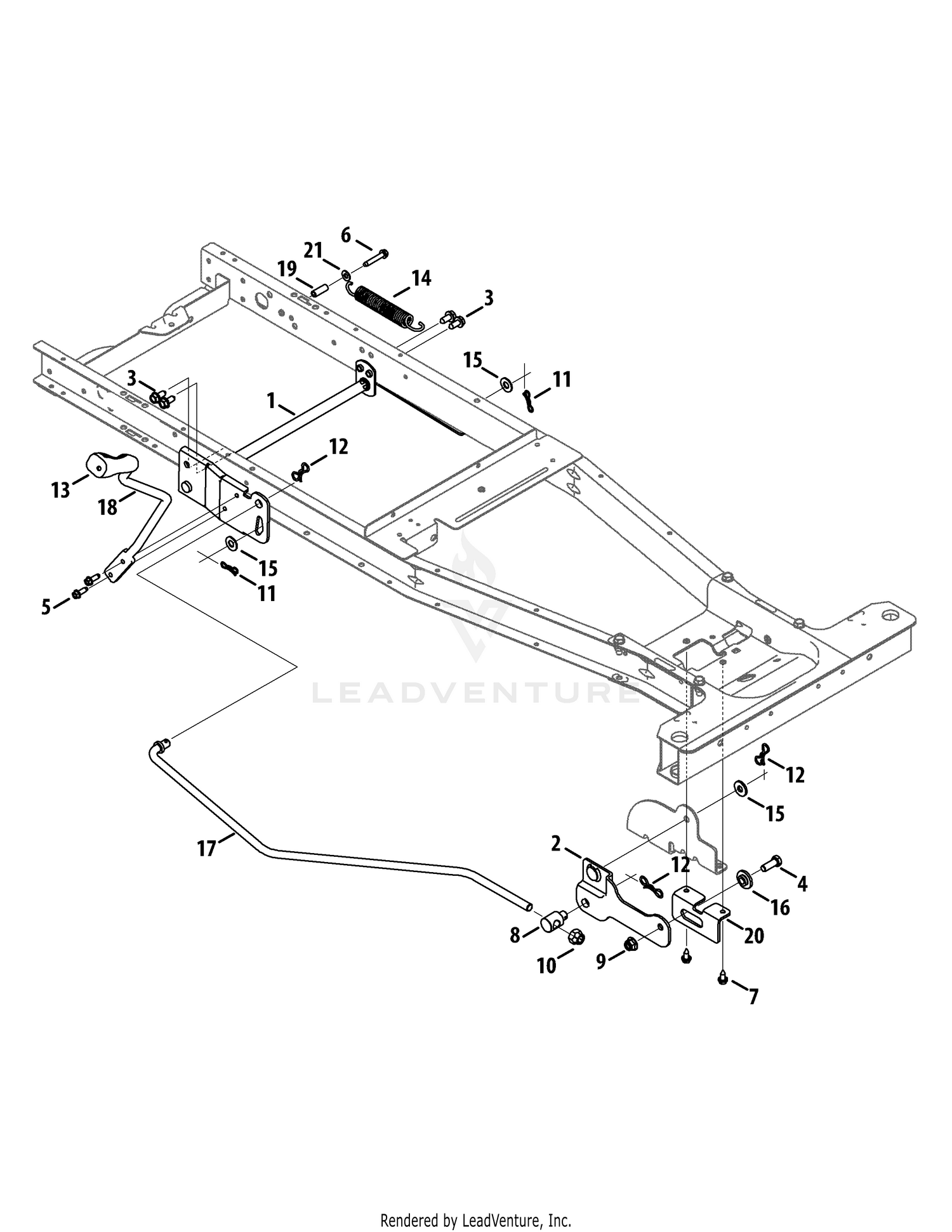

| Ref | Part Number | Description |
|---|
| 1 |
683-05060-0637 |
Lift Assembly Shaft Price: $37.25 |
| 2 |
683-04757-0637 |
Front Hanger Bracket Assembly Price: $22.36 |
| 3 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 4 |
710-0514 |
Hex Head Screw, 3/8-16, 1.00 Price: $3.78 |
| 5 |
710-0642 |
Tap Screw, 1/4-20, 0.750 Price: $4.05 |
| 6 |
710-0778 |
Screw, 1/4-20, 1.50 Price: $3.90 |
| 7 |
710-1652 |
Tap Screw, 1/4-20 X .625 Price: $3.86 |
| 8 |
711-05690C |
Ferrule, .50 X .50 This part replaces 711-05690. Price: $9.67 |
| 9 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 10 |
712-05046 |
Hex Lock Nut, 1/2-13 Price: $3.74 |
| 11 |
714-04040 |
Bow-Tie Cotter Pin, 72 Price: $1.28 |
| 12 |
714-04043 |
Bow-Tie Cotter Pin, 91 Price: $4.24 |
| 13 |
720-0311 |
Grip Handle, 1/2 Price: $13.26 |
| 14 |
732-04692 |
Extension Spring, .85 OD X 5.915 LG Price: $8.33 |
| 15 |
736-0300 |
Fl-Wash. .385" I.D. This part replaces 936-0300. Price: $3.93 |
| 16 |
938-0347 |
Shoulder Spacer, .625 ID X .169 Price: $8.93 |
| 17 |
747-05511 |
Lift Link Rod Price: $23.25 |
| 18 |
747-05576 |
Deck Lift Rod This part replaces 747-05576-0637. Price: $21.09 |
| 19 |
750-0566A |
Spacer, .260 x .375 x 1.030 LG Price: $9.17 |
| 20 |
783-07129-0637 |
Front Deck Mounting Bracket Price: $5.89 |
