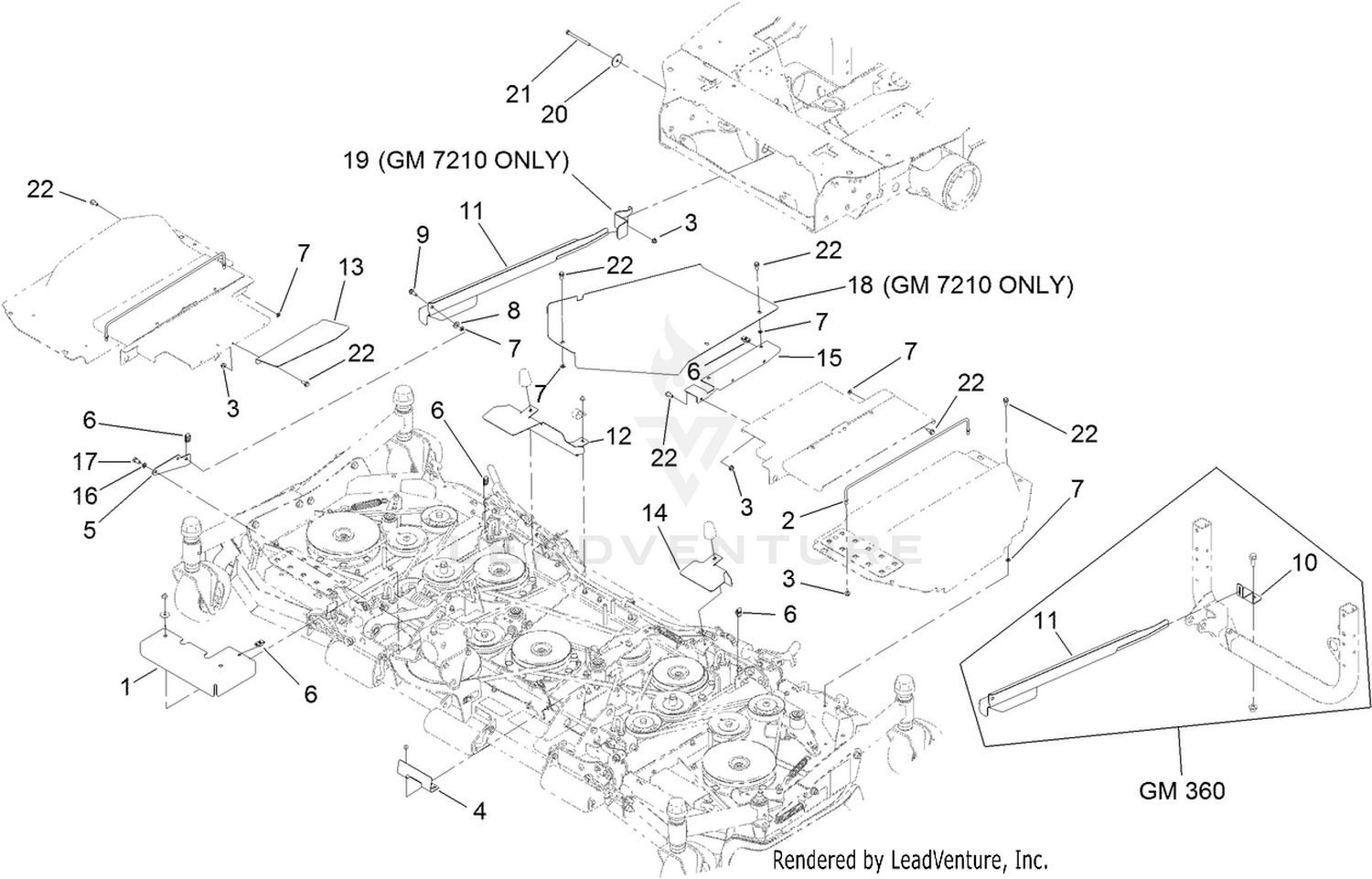

Mower Cover Assembly
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 127-4973-03 | SHIELD-PULLEY Price: $39.29 |
| 2 | 127-4979 | GUIDE-SHIELD Price: $31.86 |
| 3 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 4 | 127-4935-03 | SHIELD-FRONT Price: $15.20 |
| 5 | 127-4991-03 | BRACKET-PIVOT Price: $22.30 |
| 6 | 110-3510 | NUT-RETAINER Price: $5.77 |
| 7 | 117-2749 | NUT-PUSH Price: $0.25 |
| 8 | 3256-25 | WASHER-FLAT Price: $0.25 |
| 9 | 27-0410 | SCREW-SHOULDER Price: $2.59 |
| 10 | 127-4978-03 | SUPPORT-SHIELD Price: $24.92 |
| 11 | 127-4990-03 | SHIELD-DRIVESHAFT Price: $65.57 |
| 12 | 127-4974-03 | SHIELD-RH Price: $41.44 |
| 13 | 127-4975-03 | COVER-RH Price: $28.97 |
| 14 | 127-4976-03 | SHIELD-LH Price: $19.50 |
| 15 | 127-4977-03 | COVER-LH Price: $45.63 |
| 16 | 3253-21 | WASHER-LOCK Price: $0.28 |
| 17 | 323-4 | SCREW-HH Price: $1.02 |
| 18 | 127-4998-03 | COVER-CENTER Price: $115.78 |
| 19 | 127-4999-03 | SUPPORT-SHIELD Price: $25.83 |
| 20 | 63-7400 | WASHER-REBOUND Price: $1.70 |
| 21 | 322-19 | SCREW-HH Price: $5.99 |
