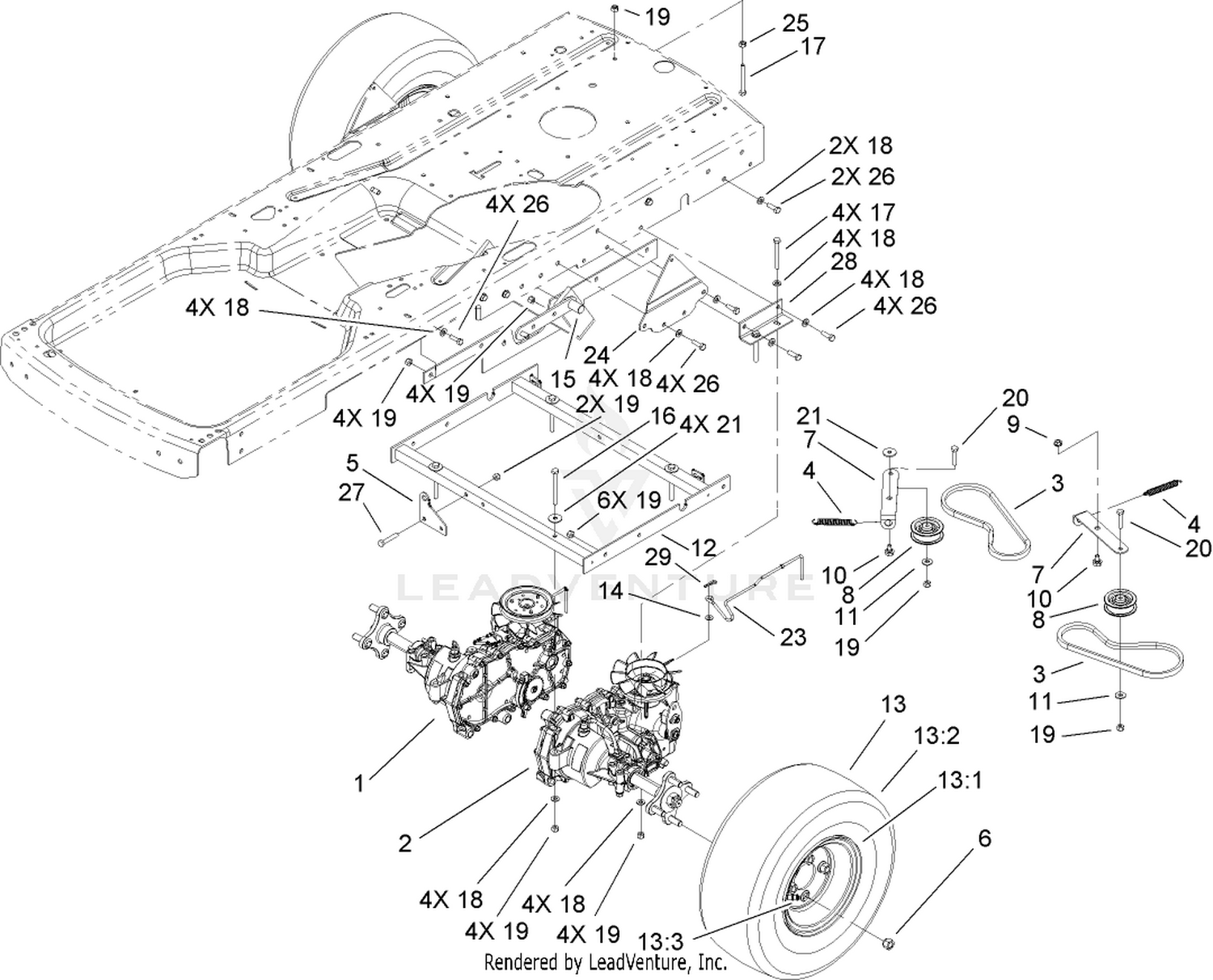

| Ref | Part Number | Description |
|---|
| 1 |
114-8520 |
KIT-TRANSAXLE, RH This part replaces 112-4761. Price: $1,265.89 |
| 2 |
114-8521 |
KIT-TRANSAXLE, LH This part replaces 112-4760. Price: $1,265.89 |
| 3 |
106-2174 |
V-BELT Price: $18.59 |
| 4 |
95-3805 |
SPRING Price: $13.99 |
| 5 |
105-7049 |
BRACKET-SPRING Price: $5.69 |
| 6 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 7 |
105-7047 |
ARM-IDLER Price: $8.73 |
| 8 |
106-2176 |
PULLEY-IDLER Price: $22.03 |
| 9 |
32128-25 |
NUT-HF Price: $3.19 |
| 10 |
37-8771 |
BOLT-SHOULDER,HFH Price: $3.59 |
| 11 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 12 |
108-8733-03 |
HYDRO FRAME ASM Price: $102.98 |
| 13 |
106-7004 |
WHEEL AND TIRE ASM Price: $274.41 |
| 14 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 15 |
107-8970-03 |
BRACE-FRAME, LEFT SIDE Price: $52.42 |
| 16 |
322-20 |
SCREW-HH Price: $1.79 |
| 17 |
322-13 |
SCREW-HH Price: $2.73 |
| 18 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
322-7 |
SCREW-HH Price: $0.89 |
| 21 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 23 |
107-2463 |
ARM-BYPASS, LH Price: $26.02 |
| 24 |
112-4754-03 |
ANCHOR-DAMPER Price: $36.36 |
| 25 |
3217-6 |
NUT-HEX Price: $1.19 |
| 26 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 27 |
322-9 |
SCREW-HH Price: $3.09 |
| 28 |
105-7039-03 |
SUPPORT-HYDRO Price: $5.81 |
