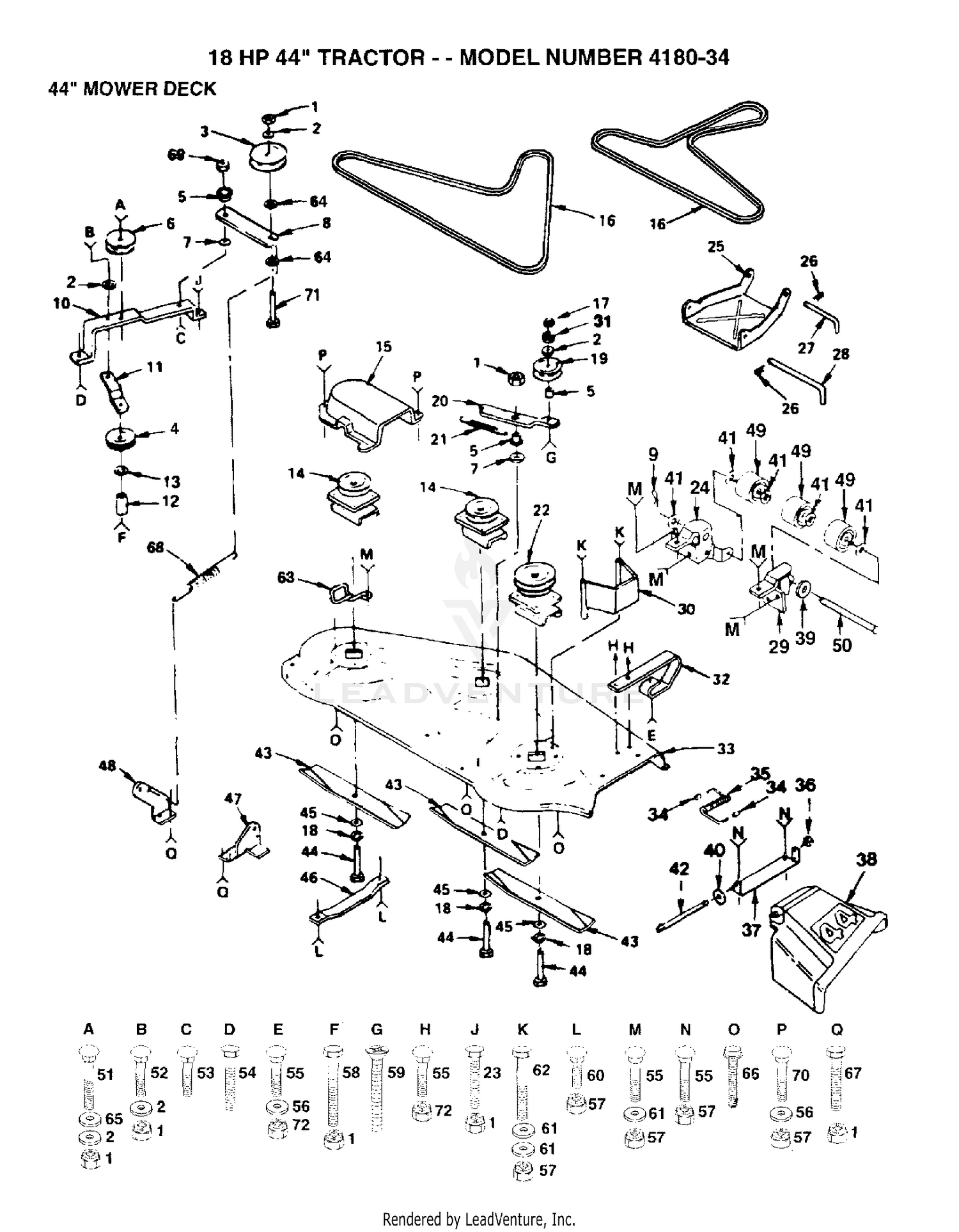

| Ref | Part Number | Description |
|---|
| 1 |
5108 |
VALVE This part replaces 232-31. Price: $6.29 |
| 1 |
873680600 |
LOCKNUT Price: $1.99 |
| 2 |
324-4 |
SCREW-HH Price: $0.95 |
| 2 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 3 |
3253-22 |
WASHER-LOCK Price: $2.09 |
| 3 |
532121316 |
PULLEY IDLER Price: $22.99 |
| 4 |
5-3177 |
WASHER Price: $1.97 |
| 4 |
532102403 |
IDLER-FLAT T Price: $22.99 |
| 5 |
3248-4 |
DISCONTINUED Price: Call Us |
| 5 |
532106902 |
SPACER RETAINER Price: $2.99 |
| 6 |
5-2570 |
DISCONTINUED Price: Call Us |
| 6 |
532124858 |
Pulley, Idler (AYP part number) Price: $32.98 |
| 7 |
5-0786 |
KEY Price: $13.87 |
| 7 |
532106513 |
WASHER, WEAR LT (1 2) Price: $2.99 |
| 8 |
532121425 |
Arm, Idler (AYP part number) Price: $4.06 |
| 9 |
38-7080 |
DISCONTINUED Price: Call Us |
| 9 |
876020412 |
COTTER PIN Price: $3.99 |
| 10 |
32108-20 |
SCREW Price: $0.61 |
| 10 |
532106523 |
Bar, Support, Idler (AYP part number) Price: $13.32 |
| 11 |
3272-15 |
PIN-COTTER Price: $0.47 |
| 11 |
532106522 |
BRACE-IDLER YT Price: $2.99 |
| 12 |
40-7520 |
DISCONTINUED Price: Call Us |
| 12 |
532121236 |
Spacer Split 59/ x 1.25 Blk/zin (AYP part number) Price: $2.38 |
| 13 |
3257-23 |
KEY-WOODRUFF Price: $6.79 |
| 13 |
819131316 |
WASHER Price: $2.99 |
| 14 |
40-7530 |
DISCONTINUED Price: Call Us |
| 14 |
532136819 |
MANDREL ASM SEC 44/50 This part replaces 532136818. Price: $79.99 |
| 15 |
38-6990 |
DISCONTINUED Price: Call Us |
| 15 |
532106214 |
GUARD YT Price: $22.99 |
| 16 |
3247-2 |
SCREW-SET, HSH Price: $0.68 |
| 16 |
532106085 |
V-BELT T Price: $24.99 |
| 17 |
5-3956 |
DISCONTINUED Price: Call Us |
| 17 |
873220600 |
NUT.HEX.3/8-16UNC Price: $3.99 |
| 18 |
38-7110 |
DISCONTINUED Price: Call Us |
| 18 |
539990118 |
SLW 3/8 STD This part replaces 810030600. Price: $1.99 |
| 19 |
321-2 |
SCREW-HH Price: $2.79 |
| 19 |
532102932 |
IDLER.FLAT.GTV Price: $22.99 |
| 20 |
3274-34 |
SCREW-HSFH Price: $3.73 |
| 20 |
532106526 |
ARM-IDLER YT Price: $12.99 |
| 21 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 21 |
532007644 |
Price: $6.23 |
| 22 |
532121705 |
Mandrel, Primary (AYP part number) This part replaces 532121704. Price: $129.99 |
| 23 |
3-2461 |
DISCONTINUED Price: $5.02 |
| 23 |
874780616 |
BOLT This part replaces 874760614. Price: $3.99 |
| 24 |
353-704 |
DISCONTINUED Price: Call Us |
| 24 |
532109599 |
BRACKET LH YTH Price: $15.31 |
| 25 |
237-61 |
O-RING Price: $6.87 |
| 25 |
532105662 |
Link, Parallel (AYP part number) Price: $15.31 |
| 26 |
5-3271 |
DISCONTINUED Price: Call Us |
| 26 |
532004921 |
SPRING.RETAINER Price: $3.99 |
| 27 |
5-3275 |
DISCONTINUED Price: Call Us |
| 27 |
532105744 |
ROD,FRT PARALL LT Price: $9.99 |
| 28 |
5-3278 |
DISCONTINUED Price: Call Us |
| 28 |
532109835 |
Pin, Hinge, Rear (AYP part number) Price: $13.61 |
| 29 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 29 |
532109600 |
Bracket, Lift, R.H. (AYP part number) Price: $23.03 |
| 30 |
532108119 |
Guard, Belt, R.H. (AYP part number) Price: $12.60 |
| 31 |
32151-21 |
DISCONTINUED Price: Call Us |
| 31 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 32 |
3-9358 |
DISCONTINUE Price: Call Us |
| 32 |
532136321 |
Runner, RH (AYP part number) This part replaces 532124950. Price: $6.99 |
| 33 |
3245-32 |
SCREW-HSH Price: $3.59 |
| 33 |
532121423 |
Housing, Mower (AYP part number) Price: $249.99 |
| 34 |
3257-30 |
KEY-WOODRUFF Price: $5.35 |
| 34 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 35 |
252-6 |
BEARING-NEEDLE Price: $10.72 |
| 35 |
532123713 |
SPRING TORSION This part replaces 532106734. Price: $3.99 |
| 36 |
3-9362 |
DISCONTINUED Price: Call Us |
| 36 |
532110452 |
NUT PUSH M Price: $1.99 |
| 37 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 37 |
532137607 |
BRACKET, DEFLECTOR Price: $3.99 |
| 38 |
5-3914 |
DISCONTINUED Price: Call Us |
| 38 |
532109785 |
DEFLECTOR SHIELD Price: $22.99 |
| 39 |
323-32 |
SCREW-HH Price: $1.29 |
| 39 |
532052160 |
Washer (AYP part number) This part replaces 819151616. Price: $3.99 |
| 40 |
281-1 |
PLUG-PIPE, SQH Price: $4.56 |
| 40 |
819111016 |
WASHER Price: $5.99 |
| 41 |
5-1665 |
DISCONTINUED Price: Call Us |
| 41 |
819151610 |
Washer 15/32 x 1 x 10 Gauge (AYP part number) Price: $5.99 |
| 42 |
3246-3 |
SCREW-HSH Price: $12.70 |
| 42 |
532106735 |
ROD-HINGE T Price: $4.99 |
| 43 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 43 |
532025034 |
BLADE.106635X.44(NLA PENDING) This part replaces 532106635. Price: $19.99 |
| 44 |
321-8 |
SCREW-HH Price: $0.34 |
| 44 |
874610624 |
BOLT.3/8-24X1-1/2 Price: $3.99 |
| 45 |
321-6 |
SCREW-HH Price: $0.25 |
| 45 |
819132012 |
WASHER This part replaces 532061537. Price: $2.99 |
| 46 |
237-82 |
DISCONTINUED Price: Call Us |
| 46 |
532007631 |
RUNNER LH Price: $11.99 |
| 47 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 47 |
532123807 |
Bracket, Suspension, Rear, R.H. (AYP part number) Price: $12.33 |
| 48 |
5-3268 |
DISCONTINUED Price: Call Us |
| 48 |
532123808 |
Bracket, Suspension, Rear, LH (AYP part number) This part replaces 532123801. Price: $6.73 |
| 49 |
253-44 |
SEAL-OIL Price: $24.63 |
| 49 |
532109729 |
ROLLER T Price: $6.99 |
| 50 |
32121-41 |
PIN-ROLL Price: $6.19 |
| 50 |
532109776 |
PIVOT PIN T Price: $8.99 |
| 51 |
5-3277 |
DISCONTINUED Price: Call Us |
| 51 |
872140614 |
BOLT Price: $2.99 |
| 52 |
3-9357 |
DISCONTINUED Price: Call Us |
| 52 |
872110608 |
BOLT D This part replaces 872140608. Price: $3.99 |
| 53 |
3-9356 |
DISCONTINUED Price: Call Us |
| 53 |
872140612 |
BOLT Price: $2.99 |
| 54 |
3-9355 |
DISCONTINUE Price: Call Us |
| 54 |
874760620 |
BOLT Price: $3.99 |
| 55 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 55 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 56 |
38-0430 |
SWITCH Price: $54.52 |
| 56 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.99 |
| 57 |
40-7420 |
DISCONTINUED Price: Call Us |
| 57 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 58 |
40-7450 |
DISCONTINUED Price: Call Us |
| 58 |
874780648 |
BOLT.HEX.FIN.3/8-16 X 3.GR5 This part replaces 874760648. Price: $1.99 |
| 59 |
237-7 |
O-RING Price: $8.82 |
| 59 |
874110632 |
Screw, Flat Head 3/8-16 x 2 (AYP part number) Price: $2.99 |
| 60 |
2412-98 |
CLAMP-HOSE This part replaces 2412-33. Price: $1.39 |
| 60 |
872110505 |
BOLT Price: $3.99 |
| 61 |
40-7460 |
DISCONTINUED Price: Call Us |
| 61 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 62 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 62 |
874760580 |
BOLT Price: $2.99 |
| 63 |
323-5 |
SCREW-HH This part replaces 323-33. Price: $0.41 |
| 63 |
532121352 |
Keeper, L.H. Mandrel (AYP part number) Price: $3.00 |
| 64 |
281-3 |
PLUG-PIPE, SQH Price: $3.92 |
| 64 |
819131210 |
Washer 13/32 x 1-3/4 x 10 Ga. (AYP part number) Price: $2.99 |
| 65 |
3-8863 |
DISCONTINUED Price: Call Us |
| 65 |
734117201 |
WASHER This part replaces 819131410. Price: $1.99 |
| 66 |
3220-7 |
NUT-JAM Price: $4.09 |
| 66 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 67 |
5-3927 |
DISCONTINUED Price: Call Us |
| 67 |
872140606 |
BOLT Price: $3.99 |
| 68 |
40-7030 |
DISCONTINUED Price: Call Us |
| 68 |
532102727 |
SPRING.EXT.8.5" Price: $6.99 |
| 69 |
5-2643 |
COSHAFT WA Price: $417.01 |
| 69 |
873680600 |
LOCKNUT This part replaces 532005394. Price: $1.99 |
| 70 |
3-8952 |
DISCONTINUE Price: Call Us |
| 70 |
872110506 |
BOLT.5/16-18. Price: $3.99 |
| 71 |
253-142 |
SEAL Price: $50.28 |
| 71 |
872140620 |
BOLT Price: $3.99 |
| 72 |
38-3260 |
DISCONTINUED Price: Call Us |
| 72 |
532068478 |
LOCKNUT This part replaces 532001685. Price: $3.99 |
| 73 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 74 |
3220-17 |
NUT-JAM, LH Price: $6.25 |
| 75 |
5-3928 |
DISCONTINUED Price: Call Us |
| 76 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 78 |
323-10 |
SCREW-HH Price: $0.89 |
| 79 |
3218-3 |
NUT-JAM Price: $0.25 |
| 80 |
5-2638 |
DISCONTINUED Price: Call Us |
| 81 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 82 |
3-9011 |
DISCONTINUED Price: Call Us |
| 83 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 84 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 85 |
322-1 |
SCREW-HH Price: $0.22 |
| 86 |
251-221 |
DISCONTINUED Price: Call Us |
| 87 |
71-1360 |
BEARING This part replaces 251-219. Price: $36.88 |
| 88 |
251-220 |
DISCONTINUED Price: Call Us |
| 89 |
3245-31 |
SCREW-HSH Price: $12.15 |
| 90 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 91 |
251-77 |
COLLAR-LOCK, BEARING Price: $10.22 |
| 92 |
5-2635 |
DISCONTINUED Price: Call Us |
| 93 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 94 |
3-9024 |
DISCONTINUED Price: Call Us |
| 95 |
327-20 |
DISCONTINUED Price: Call Us |
| 96 |
38-7840 |
DISCONTINUED Price: Call Us |
| 97 |
3296-24 |
NUT-HEX Price: $4.44 |
| 98 |
3220-5 |
NUT-JAM Price: $0.65 |
| 99 |
3242-2 |
SCREW-SQH Price: $1.29 |
| 100 |
3-8943 |
DISCONTINUED Price: Call Us |
| 101 |
5-2651 |
DISCONTINUED Price: Call Us |
| 102 |
5-3281 |
DISCONTINUED Price: Call Us |
| 103 |
3-6998 |
DISCONTINUED Price: $2.00 |
| 104 |
5-2648 |
DISCONTINUED Price: Call Us |
| 105 |
5-2646 |
DISCONTINUED Price: Call Us |
| 106 |
5-2652 |
DISCONTINUED Price: Call Us |
| 107 |
3274-19 |
SCREW-HSH Price: $1.42 |
| 108 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 109 |
323-8 |
SCREW-HH Price: $1.20 |
| 111 |
5-1336 |
KEY-SQUARE Price: $8.92 |
| 112 |
5-2647 |
SPROCKET Price: $139.78 |
| 113 |
3296-36 |
DISCONTINUED Price: Call Us |
| 114 |
217-74 |
BOLT-WHEEL Price: $4.87 |
| 115 |
231-101 |
TIRE (23X8.5-12) 4-PLY TURF SAVER Price: $147.85 |
