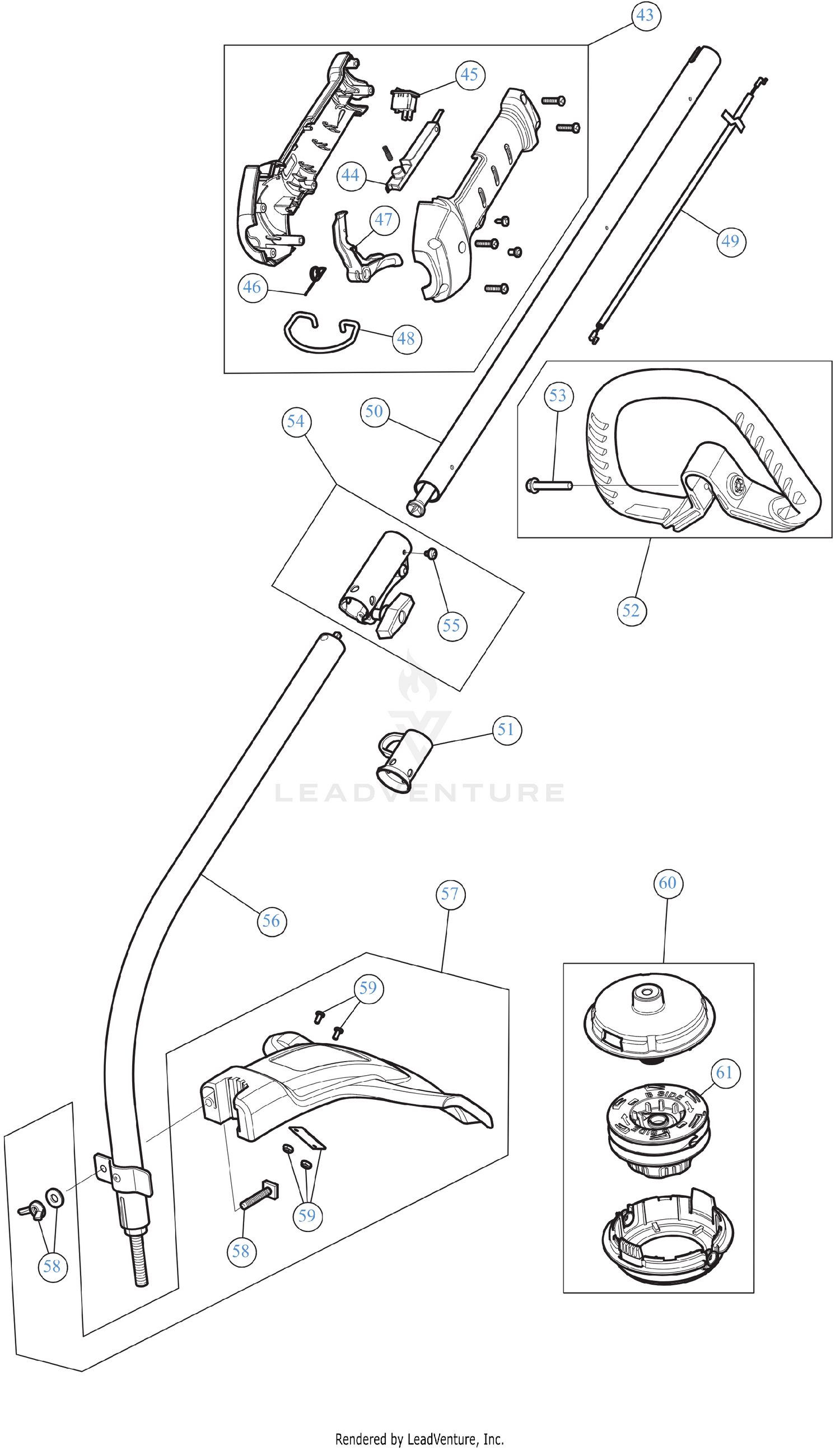

General Assembly
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 44 | 731-08433C-10 | LEVER LOCK OUT Price: $2.72 |
| 45 | 791-182405 | SW, MOMENTARY ON/O Price: $9.29 |
| 46 | 753-05007 | TRIGGER SPRING Price: $4.42 |
| 47 | 731-04970B-10 | THROTTLE TRIGGER Price: $8.16 |
| 48 | 732-06186 | SHOULDER STRAP CLIP Price: $3.08 |
| 49 | 746P04758 | THROTTLE CABLE Price: $6.86 |
| 50 | 841-035632S | UPPER BOOM Price: $12.52 |
| 51 | 731-08926 | HANGER Price: $2.32 |
| 53 | 753-06040 | BOLT 1/4-20X1 1/2 Price: $6.01 |
| 55 | 791-182057 | SCREW, 10-32X.250 TA Price: $3.93 |
| 56 | 753-09586 | LOWER BOOM Price: $19.43 |
| 58 | 753-04282 | BLADE GUARD MOUNTING HARDWARE Price: $23.73 |
| 59 | 791-180553 | ASSEMBLY, BLADE Price: $12.96 |
