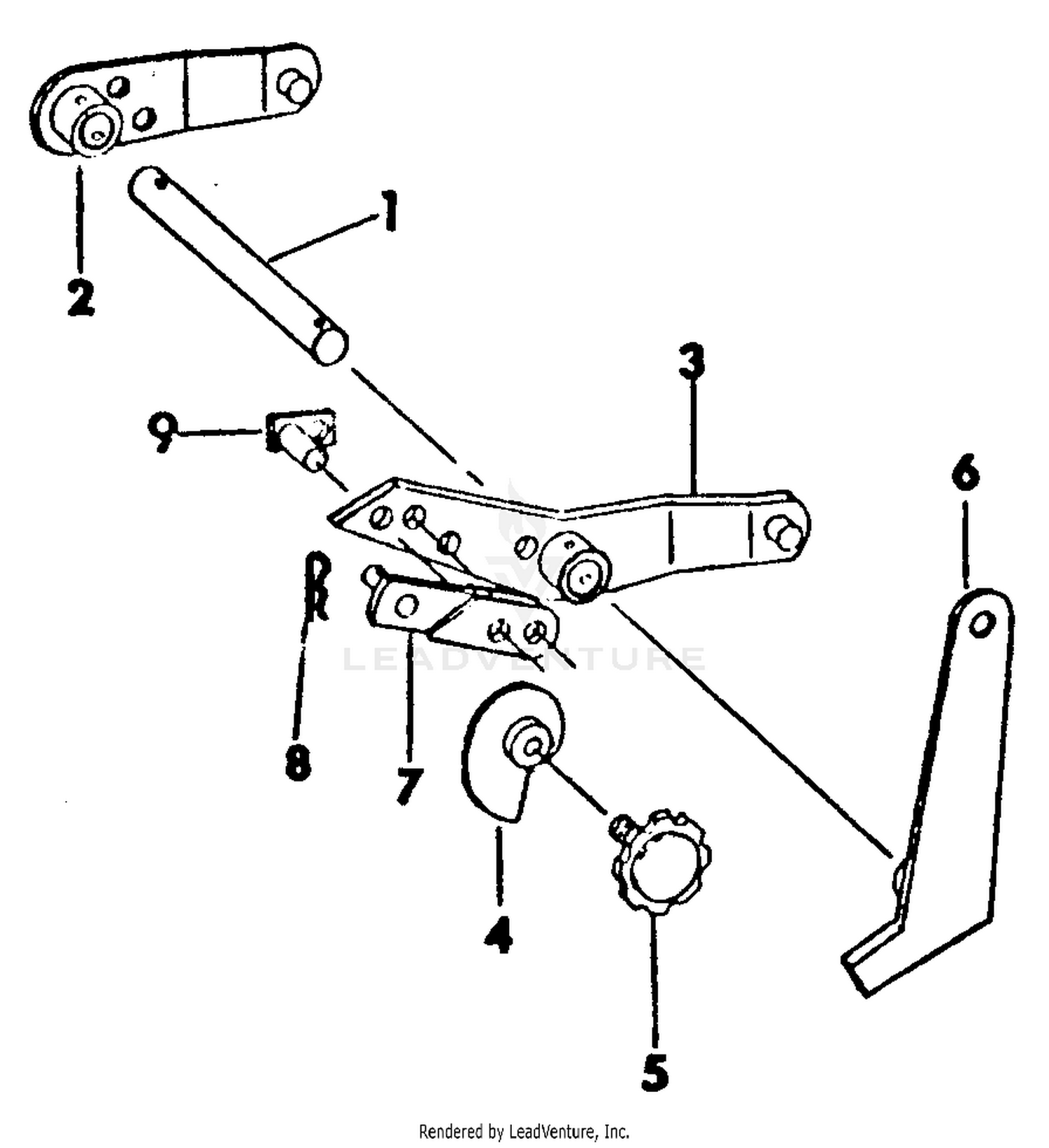

Hydraulic Lift Rockshaft & Connections
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | IH-544194-R1 | ROCKSHAFT Not Available Price: |
| 2 | IH-544195-R1 | ARM Not Available Price: |
| 3 | IH-545627-R1 | Arm Not Available Price: |
| 4 | IH-544202-R2 | Cam Assy, Lift Handle Stop Price: Call Us |
| 5 | IH-544205-R1 | KNOB Not Available Price: |
| 6 | IH-548048-R1 | PLATE ASSY, ROCKERSHAFT Not Available Price: |
| 7 | IH-548046-R1 | Clevis Assy, Hydraulic Lift Price: Call Us |
| 8 | 714-3020 | Pin, Internal Cotter This part replaces IH-475579-R1. Price: $3.90 |
| 531002420 | 531002420 | CARBURETOR WYK-11B Price: $199.00 |
| 531002421 | 531002421 | O-RING Price: $1.99 |
| 531002422 | 531002422 | JET Price: $7.99 |
| 531002423 | 531002423 | GASKET Price: $11.99 |
| 531002431 | 531002431 | DIAPHRAGM Price: $8.36 |
| 531002439 | 531002439 | RETAINING RING Price: $3.99 |
| 531002440 | 531002440 | VALVE ASSY-THROTTLE Price: $22.99 |
| 531002441 | 531002441 | Plug Price: $0.39 |
| 531002442 | 531002442 | CONNECTION Price: $2.99 |
| 531002443 | 531002443 | SCREW Price: $2.99 |
| 531002444 | 531002444 | Bracket Price: $1.43 |
| 531002445 | 531002445 | NUT Price: $4.99 |
| 531002446 | 531002446 | SCREW Price: $3.99 |
| 531002447 | 531002447 | VALVE/STARTER Price: $2.99 |
| 531002449 | 531002449 | O-RING Price: $2.99 |
| 531002450 | 531002450 | SPRING Price: $2.99 |
| 531002451 | 531002451 | GASKET Price: $2.99 |
| 531002452 | 531002452 | GASKET Price: $5.99 |
