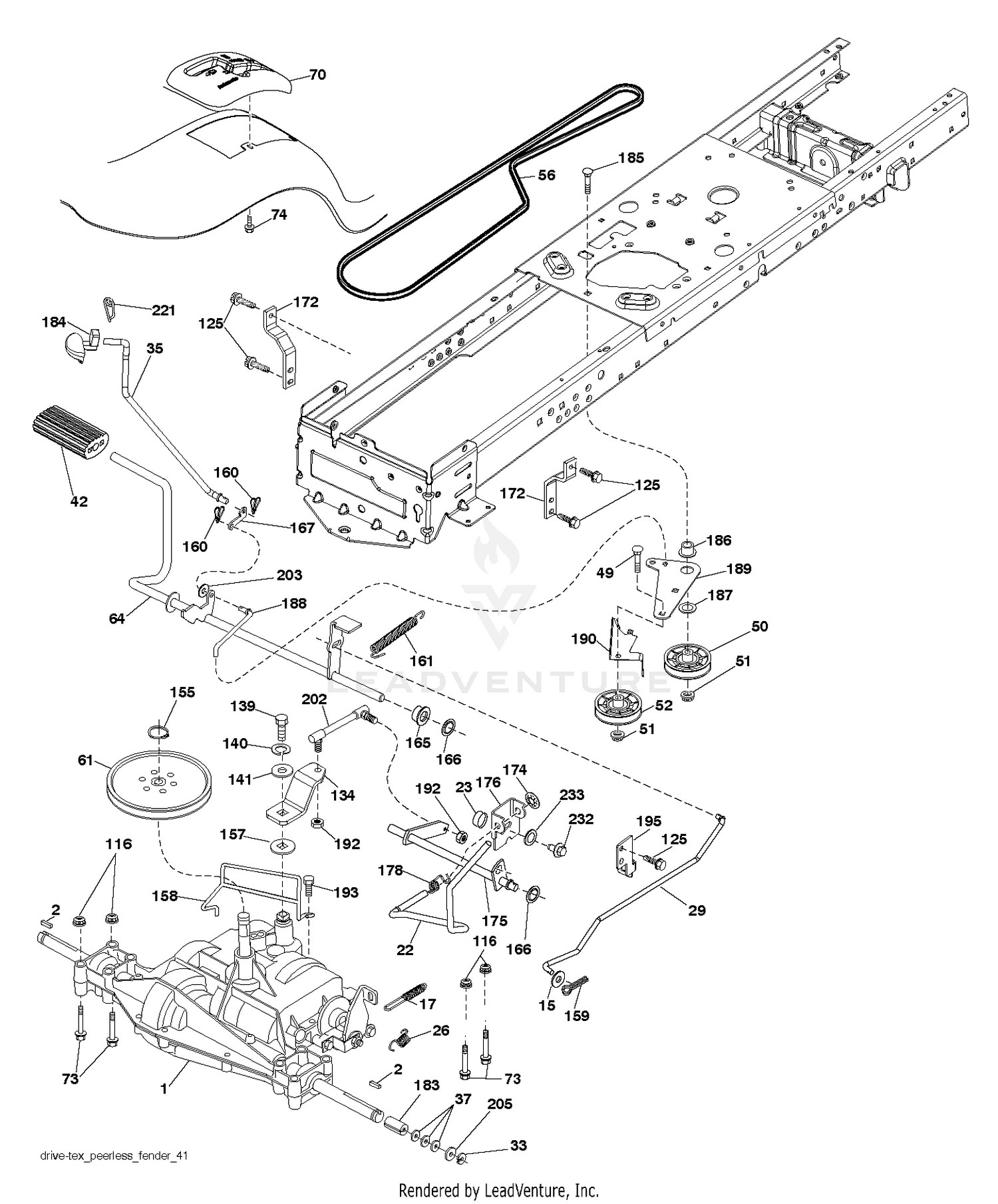

| Ref | Part Number | Description |
|---|
| 1 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 2 |
26-1840 |
PULLEY-IDLER Price: $42.68 |
| 2 |
532123583 |
SQUARE KEY Price: $2.99 |
| 3 |
26-1760 |
PULLEY AND HUB ASM Price: $214.86 |
| 4 |
26-1130 |
DISCONTINUED Price: Call Us |
| 5 |
26-1860 |
SPACER-IDLER PULLEY Price: $4.75 |
| 6 |
32128-21 |
NUT-HF Price: $0.39 |
| 7 |
3231-27 |
SCREW-CARR Price: $0.54 |
| 8 |
26-1870-03 |
MOUNT-IDLER This part replaces 26-1870. Price: $74.13 |
| 9 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 10 |
3217-7 |
NUT-HEX Price: $0.28 |
| 11 |
26-1850 |
STUD-IDLER Price: $32.97 |
| 12 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 13 |
49-8320 |
BEARING ASM This part replaces 26-1730. Price: $104.42 |
| 14 |
21-0890 |
V-BELT Price: $32.90 |
| 15 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 15 |
819131316 |
WASHER Price: $2.99 |
| 16 |
3-8514 |
WASHER-THRUST Price: $1.58 |
| 17 |
532197297 |
SPRING.BRAKE.PEERLESS.TEX Price: $3.99 |
| 17 |
84-2060 |
PULLEY AND HUB ASM This part replaces 26-9100. Price: $276.94 |
| 18 |
253-138 |
SEAL-OIL Price: $10.33 |
| 19 |
110-8297 |
BEARING ASM This part replaces 26-1830. Price: $45.97 |
| 20 |
26-1950 |
DISCONTINUED Price: Call Us |
| 21 |
32146-13 |
NUT-HEX Price: $3.49 |
| 22 |
26-7120 |
DISCONTINUED Price: Call Us |
| 22 |
532197660 |
ROD.SHIFT.FENDER.TLT.2006 Price: $129.99 |
| 23 |
26-7980 |
DISCONTINUED Price: Call Us |
| 23 |
532106933 |
KNOB T (1/2-HOLE) Price: $3.99 |
| 24 |
51-2700 |
DISCONTINUED This part replaces 26-1910. Price: Call Us |
| 25 |
302-52 |
FITTING-GREASE Price: $1.49 |
| 26 |
26-1820 |
CAPSCREW Price: $37.35 |
| 26 |
532197455 |
SPRING.BRAKE.RTN.GR.DR Price: $2.99 |
| 27 |
26-1990 |
WASHER-BELLEVILLE Price: $16.49 |
| 28 |
29-5530-03 |
BLADE-STANDARD, 25 INCH, LH This part replaces 29-5530. Price: $40.07 |
| 29 |
26-1690 |
DISCONTINUED Price: Call Us |
| 29 |
532197267 |
ROD.BRAKE.PEERLESS Price: $22.99 |
| 30 |
84-2020 |
HOUSING-SPINDLE This part replaces 26-1630. Price: $297.31 |
| 31 |
325-17 |
SCREW-HH Price: $2.90 |
| 32 |
26-1880 |
SPACER-IDLER MOUNT Price: $13.91 |
| 33 |
323-12 |
SCREW-HH Price: $1.14 |
| 33 |
812000001 |
E-RING LT Price: $2.99 |
| 34 |
3231-29 |
SCREW-CARR Price: $0.68 |
| 35 |
26-7970 |
CAUTION DECAL (BLADE) Price: $14.83 |
| 35 |
532197722 |
ROD.BRAKE.PARKING.LT.T Price: $8.99 |
| 36 |
84-5370 |
SPINDLE This part replaces 26-1680. Price: $259.86 |
| 37 |
532121749 |
WASHER Price: $1.99 |
| 37 |
68-7280 |
DECAL - BLD BOLT TORQUE This part replaces 26-7960. Price: $11.26 |
| 38 |
84-2090 |
SPACER-SPINDLE, RH This part replaces 26-1790. Price: $32.37 |
| 42 |
532008883 |
PEDAL COVER This part replaces 532124872. Price: $3.99 |
| 49 |
872110614 |
BOLT Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $9.99 |
| 51 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $9.99 |
| 56 |
532194346 |
V-BELT.TRACTOR.DRIVE.P Price: $27.99 |
| 61 |
532123666 |
PULLEY TRANS Price: $22.99 |
| 64 |
532196200 |
SHAFT.ASM.PEDAL.BRAKE. Price: $22.99 |
| 70 |
532411290 |
CONSOLE.SHIFT.STL.6SP.BLACK.T Price: $24.99 |
| 73 |
874490540 |
BOLT Price: $2.99 |
| 74 |
532142432 |
SCREW.HI-LO.CONSOLE Price: $3.99 |
| 116 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 134 |
532197857 |
ARM SHIFT Price: $2.99 |
| 139 |
871040412 |
BOLT LT This part replaces 874550412. Price: $3.99 |
| 140 |
810040400 |
LOCKWASHER Price: $3.99 |
| 141 |
531003379 |
WASHER This part replaces 819091210. Price: $2.99 |
| 155 |
812000028 |
RETAINING RING LT Price: $4.99 |
| 157 |
532105701 |
WASH-SHFT PLT LT Price: $3.99 |
| 158 |
532194352 |
KEEPER.PMS.18/20.D4365 Price: $11.99 |
| 159 |
876020412 |
COTTER PIN Price: $3.99 |
| 160 |
532169484 |
RETAINER CLIP Price: $4.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $7.99 |
| 165 |
532196212 |
BUSHING.SHAFT.BRAKE.HAND Price: $2.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $2.99 |
| 167 |
532405257 |
LATCH.BRAKE.SPRING Price: $2.99 |
| 172 |
532197657 |
STRAP.TRQ.LH.GEAR.DRIV Price: $3.99 |
| 174 |
532197289 |
NUT.PUSH.500.2006 Price: $2.99 |
| 175 |
532197858 |
SHAFT ASM SHIFT Price: $14.99 |
| 176 |
532196214 |
ARM.CLEVIS.ROD.SHIFT Price: $4.99 |
| 178 |
532197456 |
SPRING.SHIFT.GT2006 Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $3.99 |
| 184 |
532409630 |
BOOT.STEERING.LT.TEX.P/L.418 Price: $4.99 |
| 185 |
872110622 |
BOLT Price: $0.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $3.99 |
| 187 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $1.99 |
| 189 |
532194317 |
BELLCRANK.GROUND.DRIVE.TEX. Price: $3.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $4.99 |
| 192 |
873610400 |
NUT.FIN HEX 1/4-28 UNF This part replaces 532150360. Price: $2.99 |
| 193 |
532171877 |
BOLT, 5/16-18 X 1 3/4 This part replaces 817060512. Price: $3.99 |
| 195 |
532197332 |
BRKT.ROD.BRAKE.PEERLES Price: $2.99 |
| 202 |
532197859 |
LINK.SHIFT.PMST.18" (SPG1286) Price: $27.99 |
| 203 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.99 |
| 205 |
532121748 |
WASHER Price: $1.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $2.99 |
| 232 |
874780716 |
BOLT FIN HEX 7/16-14 X 1 Price: $2.99 |
