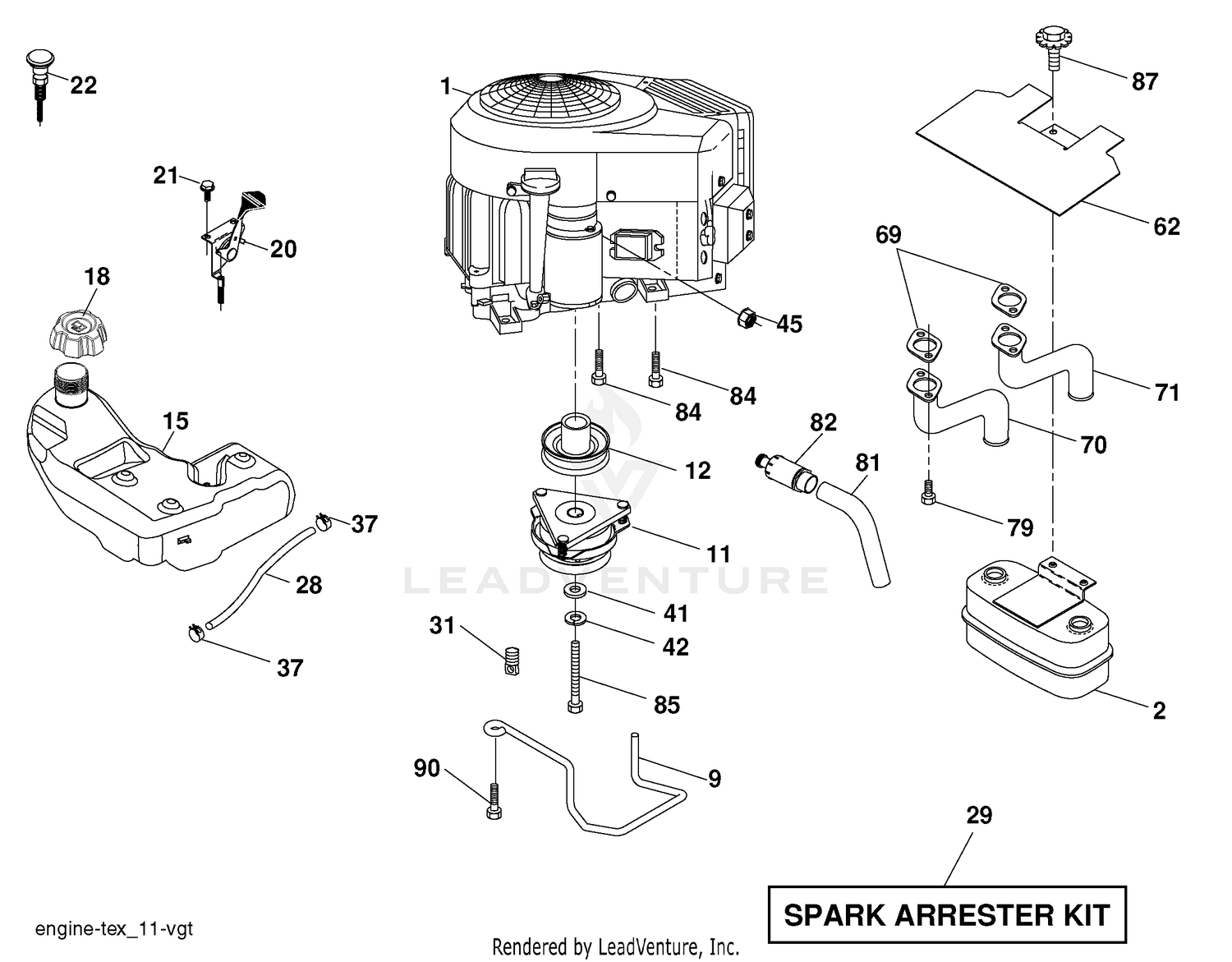

Engine

Engine

Parts (41)

RefPart NumberDescription
2 149723 Muffler Price: Call Us
9 194319 Keeper Belt Engine Price: Call Us
10 131-6557 ALTERNATOR ASM This part replaces 98-9474. Price: $443.05
11 179330 Clutch Electric Price: Call Us
12 402980 Pulley Engine Price: Call Us
15 400021 Tank Fuel 3.0 Price: Call Us
18 195951 Cap Asm Price: Call Us
20 112-7047 STAY-DYNAMO This part replaces 98-9573. Price: $14.95
20 175437X428 Control Throttle Price: Call Us
21 191611 Screw 10 x 3/4 Single Lead-Hex Price: Call Us
22 187767X428 Control Choke Price: Call Us
28 401135 Fuel Line Price: Call Us
29 137180 Spark Arrester Kit Price: Call Us
30 98-7697 BOLT Price: $1.08
31 145006 Clip Push-In Hinged Price: Call Us
37 123487X Clamp Hose Price: Call Us
40 98-9360 BOLT Price: $2.35
41 126197X Washer 1-1/2 OD x 15/32 ID x .250 Price: Call Us
42 10040700 Washer Lock 7/16 Price: Call Us
45 73510400 Nut Keps Hex 1/4-20 unc Price: Call Us
50 99-7526 NUT This part replaces 98-7737. Price: $1.29
60 98-9366 WASHER-PLAIN Price: $0.28
62 146629 Shield Heat Muffler Price: Call Us
69 165391 Gasket Price: Call Us
70 159955 Exhaust Tube RH Price: Call Us
70 98-7738 WASHER-SPRING Price: $0.24
71 160589 Exhaust Tube LH Price: Call Us
79 183906 Screw Socket Head 5/16-18 x 1 Price: Call Us
80 100-9233 WASHER-PLAIN Price: $0.48
81 148456 Tube Drain Oileasy Price: Call Us
82 181654 Plug Drain Oil Price: Call Us
84 17060620 Screw 3/8-16 x 1-1/4 Price: Call Us
85 150280 Bolt Hex 7/16-20 x 4 x 1/4 5 Ga. Price: Call Us
87 171877 Bolt 5/16-18 x 3/4 Price: Call Us
90 98-7692 BOLT Price: $0.92
100 99-3456 PULLEY-DRIVE, FAN Price: $272.24
110 98-9585 BOLT Price: $15.20
120 98-9676 V-BELT Price: $31.01
130 104-4246 FAN-ENGINE Price: $154.04
140 98-9584 PULLEY-FAN Price: $89.56
150 108-2873 BOLT-FLANGE Price: $3.04
