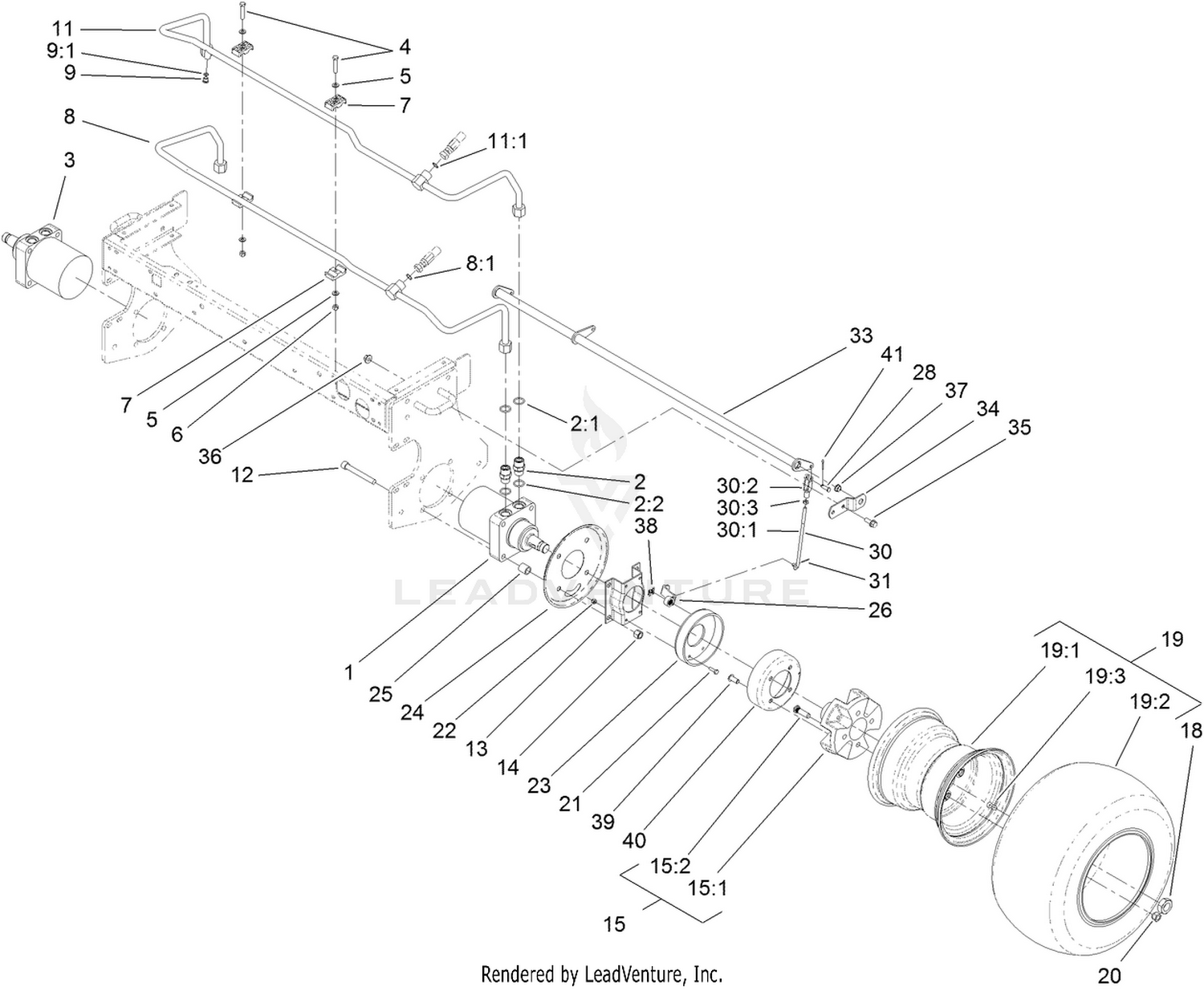

| Ref | Part Number | Description |
|---|
| 1 |
110-8785 |
HYD MOTOR ASM (CCW) Price: $1,062.27 |
| 2 |
340-7 |
FITTING-STRAIGHT Price: $14.00 |
| 3 |
110-8786 |
HYD MOTOR ASM (CW) Price: $1,062.27 |
| 4 |
322-9 |
SCREW-HH Price: $3.09 |
| 5 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 6 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
56-7971 |
CLAMP-TUBE Price: $17.90 |
| 8 |
95-8783 |
TUBE ASM Price: $172.34 |
| 9 |
353-990 |
PLUG ASM Price: $10.01 |
| 11 |
95-8784 |
TUBE ASM Price: $181.92 |
| 12 |
3274-99 |
SCREW-HSH Price: $3.04 |
| 13 |
147-3595 |
BRACKET-BRAKE This part replaces 84-2000-03. Price: $8.08 |
| 14 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 18 |
26-3790 |
NUT-LOCK Price: $24.46 |
| 20 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 21 |
321-5 |
SCREW-HH Price: $0.22 |
| 22 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 23 |
104-7705 |
BRAKE ASM Price: $175.69 |
| 24 |
104-0485-0P |
SHIELD - WHEEL This part replaces 104-0485-03. Price: $38.89 |
| 25 |
119-8238 |
SPACER-DECK PULLEY Price: $7.49 |
| 26 |
114-2726 |
LEVER-BRAKE Price: $29.20 |
| 28 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 30 |
115-6672 |
BRAKE LEVER ASM Price: $22.20 |
| 31 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 33 |
104-4625-03 |
SHAFT-PIVOT, BRAKE Price: $158.63 |
| 34 |
95-8683 |
BRACKET-PIVOT, BRAKE Price: $13.75 |
| 35 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 36 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 37 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 38 |
104-7706 |
E-RING, BOWED Price: $1.72 |
| 39 |
3274-105 |
SCREW-HSBH Price: $7.79 |
| 40 |
104-4809 |
DRUM-BRAKE Price: $58.92 |
