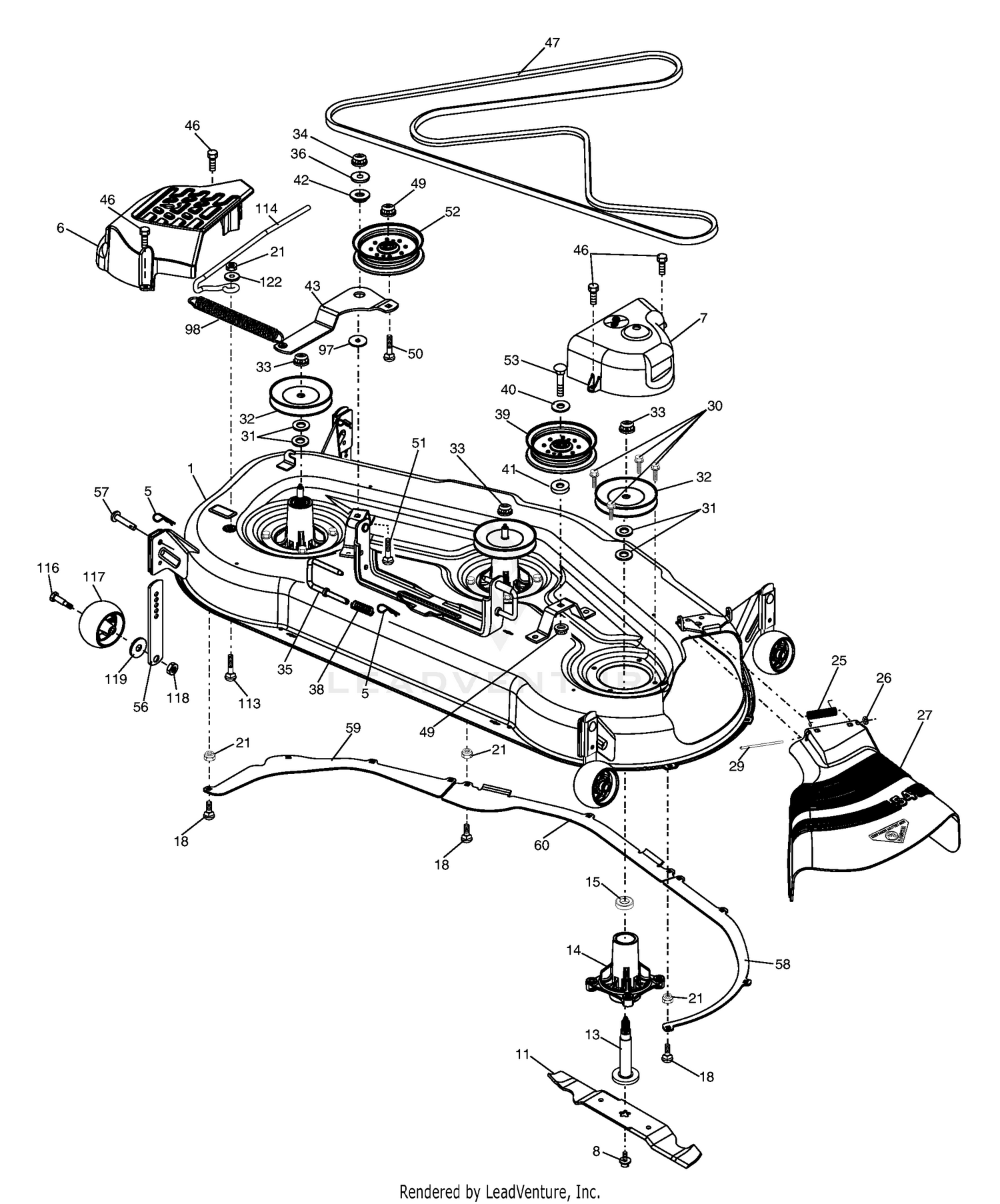

| Ref | Part Number | Description |
|---|
| 1 |
532196498 |
KIT.SVC.DECK.WLD.54" This part replaces 532196838. Price: $409.99 |
| 1 |
76-1420 |
WHEEL-STEERING Price: $202.69 |
| 2 |
32121-111 |
PIN-ROLL Price: $2.39 |
| 3 |
85-6610 |
SHAFT-STEERING Price: $54.65 |
| 5 |
532085902 |
RETAINER SPRING This part replaces 532124670. Price: $1.99 |
| 5 |
92-5035 |
STEERING POST ASM Price: $105.83 |
| 6 |
532187297 |
Cover Mandrel LH Price: $22.99 |
| 6 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 7 |
532188187 |
Cover Mandrel RH Price: $22.99 |
| 7 |
65-8770 |
BUSHING-BELLCRANK Price: $5.35 |
| 8 |
532193003 |
BOLT, BLADE This part replaces 532174365. Price: $5.99 |
| 8 |
98-0973 |
PIN-GROOVED Price: $2.10 |
| 9 |
85-9180 |
SPROCKET-STEERING Price: $56.99 |
| 11 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 12 |
3217-7 |
NUT-HEX Price: $0.28 |
| 13 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 13 |
532187291 |
Shaft Asm. w/Lower Bearing Price: $17.99 |
| 14 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 14 |
532187281 |
Mandrel Housing Price: $20.99 |
| 15 |
251-166 |
BEARING-FLANGE Price: $14.74 |
| 15 |
532110485 |
Bearing, Ball, Mandrel Price: $7.99 |
| 16 |
251-165 |
BEARING-BALL Price: $104.65 |
| 18 |
872140505 |
Bolt Rdhd Sqnk 5/16-18 x 5/8 Price: $2.69 |
| 20 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 21 |
18-6380 |
PIN-ADJUSTMENT, STEERING Price: $12.89 |
| 21 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 22 |
2710-11 |
LINK-CHAIN Price: $5.68 |
| 23 |
92-5039 |
CHAIN-STEERING Price: $36.82 |
| 24 |
18-6320 |
WASHER-STEERING Price: $2.65 |
| 25 |
115-9472 |
BEARING-CONE AND SEAL This part replaces 254-70. Price: $22.04 |
| 25 |
539107609 |
SPRING.TORSION This part replaces 532178102. Price: $1.99 |
| 26 |
532110452 |
Nut, Push Price: $1.99 |
| 27 |
532187257 |
DEFLECTOR.BLACK.54" This part replaces 532188938. Price: $50.99 |
| 28 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 29 |
532131491 |
Rod, Hinge Price: $1.99 |
| 29 |
95-0600-01 |
FRAME ASM Price: $2,207.18 |
| 30 |
3272-37 |
PIN-COTTER Price: $0.75 |
| 30 |
532173984 |
Screw Thd Roll Price: $2.99 |
| 31 |
32136-9 |
NUT-HEX, SLOTTED Price: $7.44 |
| 31 |
532187690 |
Washer, Spacer Mower Vented Price: $1.99 |
| 32 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 32 |
532173436 |
Pulley, Mandrel Price: $7.99 |
| 33 |
532400234 |
NUT, LOCK This part replaces 532178342. Price: $3.99 |
| 33 |
85-9200 |
KNUCKLE-STEERING Price: $100.34 |
| 34 |
873680600 |
Nut Price: $1.99 |
| 34 |
98-0996 |
STEERING SHFT KIT-SANDPRO This part replaces 98-0928. Price: $35.09 |
| 35 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 35 |
532188635 |
Pin Suspension Rear Price: $14.99 |
| 36 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: $2.99 |
| 38 |
532188657 |
Spring Compression Price: $3.99 |
| 38 |
94-6821 |
CLAMP-WIRE Price: $3.32 |
| 39 |
532187284 |
Pulley, Idler, Stationary Price: $28.99 |
| 40 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 40 |
819132203 |
Washer 13/32 x 1-3/8 x 3 Ga. Price: $3.99 |
| 41 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 42 |
532165723 |
Spacer Retainer This part replaces 532122052. Price: $2.99 |
| 43 |
532196216 |
Arm, Idler Price: $101.99 |
| 46 |
532137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: $2.49 |
| 47 |
532191273 |
V-Belt, Mower, Secondary Price: $55.99 |
| 49 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 50 |
872110616 |
Bolt, Carr. 3/8-16 x 2 Price: $3.99 |
| 51 |
872140614 |
BOLT This part replaces 872110610. Price: $2.99 |
| 52 |
532188460 |
Pulley Idler clutching Price: $31.99 |
| 53 |
874520636 |
BOLT-HEX EAK This part replaces 874780636. Price: $3.99 |
| 56 |
532155986 |
Bar Pnt Adj. Price: $5.99 |
| 57 |
532156941 |
Pin Head Rivet Price: $2.99 |
| 58 |
532187342 |
Baffle Right Price: $12.99 |
| 59 |
532187344 |
Baffle Left Price: $14.99 |
| 60 |
532187607 |
Baffle Center Price: $17.99 |
| 97 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 98 |
532187282 |
Spring Clutch Drive Price: $9.99 |
| 113 |
872110508 |
Bolt Rdhd Sqnk 5/16-18 unc x 3/4 Price: $2.99 |
| 114 |
532187556 |
Rod Tension Relief Price: $12.99 |
| 116 |
532193406 |
Bolt, Shoulder Price: $1.99 |
| 117 |
532174873 |
Gauge Wheel Price: $7.99 |
| 118 |
873680600 |
Nut This part replaces 873930600. Price: $1.99 |
| 119 |
734117201 |
WASHER This part replaces 819121414. Price: $1.99 |
| 122 |
532187557 |
Bushing Tension Relief Price: $2.99 |
