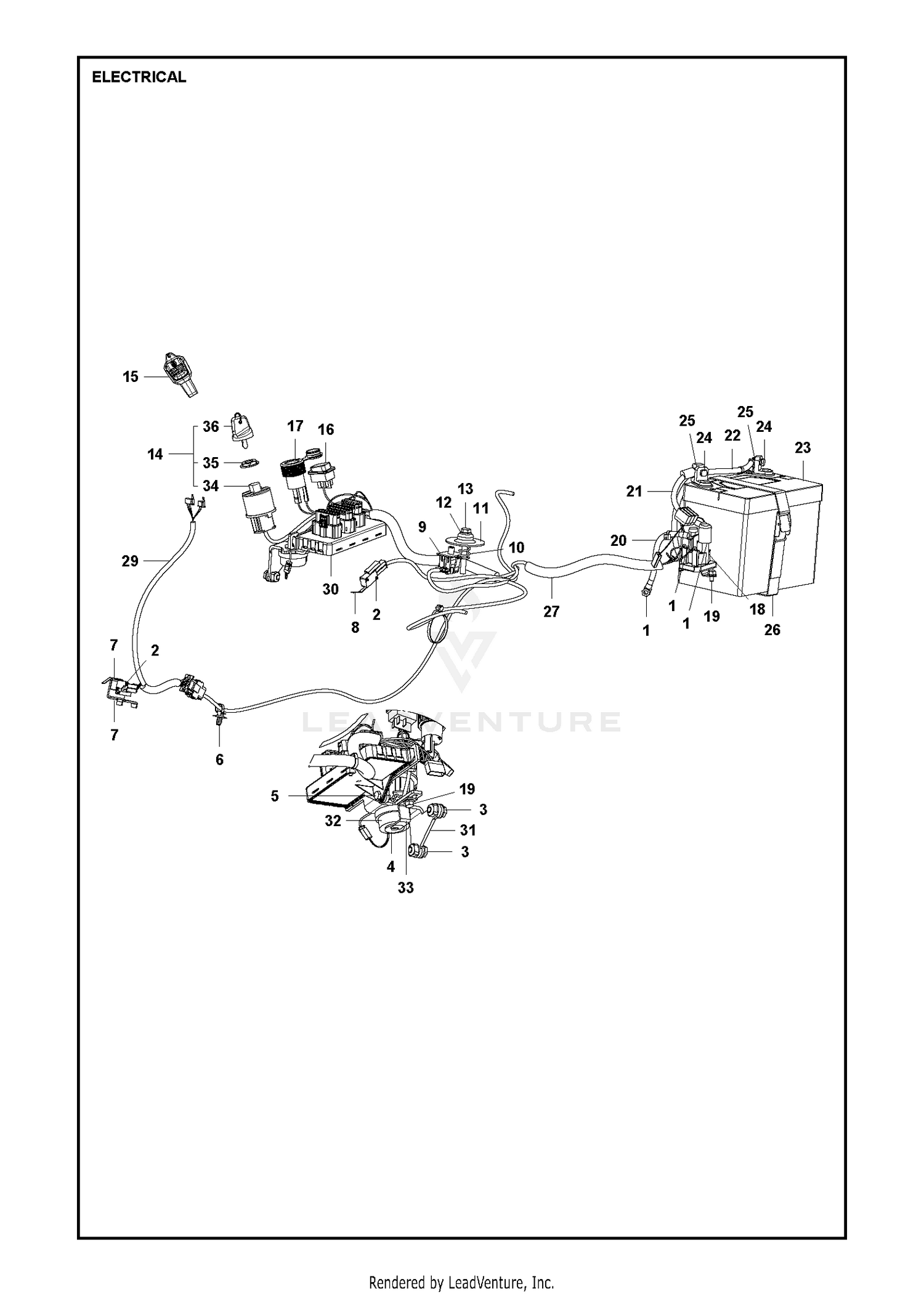

ELECTRICAL
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 117-5663 | SCREW-HH Price: $1.29 |
| 1 | 506899801 | NUT Price: $2.99 |
| 2 | 107-1413 | WASHER-HARDENED Price: $1.08 |
| 2 | 544440701 | RIVET Price: $2.99 |
| 3 | 132-6120-0P | PLATE-FLYWHEEL This part replaces 132-6120-03. Price: $510.83 |
| 3 | 506570103 | BOLT Price: $3.99 |
| 4 | 139-9940 | SCREW-HH This part replaces 99-5132. Price: $1.99 |
| 5 | 535475212 | SCREW EHHFM This part replaces 725236861. Price: $2.99 |
| 5 | 87-7510 | WASHER-FLAT Price: $1.15 |
| 6 | 132-6121 | COUPLING-FLYWHEEL Price: $372.90 |
| 6 | 579317401 | NEEDS DESCRIPTION Price: Call Us |
| 7 | 120-4066-0P | MOUNT-MOTOR, FRONT This part replaces 120-4066-03. Price: $20.27 |
| 7 | 544415701 | BRACKET Price: $4.99 |
| 8 | 33114-020 | SCREW-HH Price: $0.28 |
| 8 | 574316101 | MICRO SWITCH Price: $11.99 |
| 9 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 9 | 587648401 | SWITCH SEAT, 4 PIN NC/NO Price: $14.99 |
| 10 | 121-5636 | TAB-HARNESS Price: $3.37 |
| 10 | 544441201 | SPRING Price: $4.99 |
| 11 | 48-9590 | WASHER-LOCK Price: $0.25 |
| 11 | 506909701 | WASHER Price: $12.99 |
| 12 | 33115-025 | SCREW-HH Price: $0.61 |
| 12 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 13 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 13 | 725246451 | SCREW Price: $5.99 |
| 14 | 579434301 | IGNITION SWITCH Price: $27.99 |
| 14 | 63-7400 | WASHER-REBOUND Price: $1.70 |
| 15 | 53-9682 | MOUNT-ENGINE Price: $108.69 |
| 15 | 586379401 | Price: Call Us |
| 16 | 120-4068-0P | MOTOR MOUNT ASM This part replaces 120-4068-03. Price: $55.91 |
| 16 | 502655701 | NEEDS DESCRIPTION Price: Call Us |
| 17 | 323-5 | SCREW-HH Price: $0.41 |
| 17 | 535474801 | NEEDS DESCRIPTION Price: Call Us |
| 18 | 323-14 | SCREW-HH Price: $1.34 |
| 18 | 544439801 | RELAY Price: $17.99 |
| 19 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 19 | 725236461 | SCREW Price: $2.99 |
| 20 | 33115-020 | SCREW-HH Price: $0.88 |
| 20 | 576183901 | CABLE Price: $8.99 |
| 21 | 127-2774 | BRACKET-HARNESS, RH Price: $17.26 |
| 21 | 586223902 | NEEDS DESCRIPTION Price: Call Us |
| 22 | 3255-9 | WASHER-LOCK Price: $0.28 |
| 22 | 576183801 | CABLE Price: $11.99 |
| 23 | 3230-2 | BOLT-CARR Price: $0.47 |
| 23 | 577041601 | BATTERY Price: $129.99 |
| 24 | 127-3722-0P | MOTOR MOUNT ASM This part replaces 127-3722-03. Price: $164.15 |
| 24 | 522622101 | SCREW EHHM Price: $2.99 |
| 25 | 127-2773 | BRACKET-HARNESS, LH Price: $14.53 |
| 25 | 522624301 | NUT Price: $2.99 |
| 26 | 506836802 | BELT Price: $9.99 |
| 27 | 594017702 | NEEDS DESCRIPTION Price: Call Us |
| 29 | 593181101 | NEEDS DESCRIPTION Price: Call Us |
| 30 | 590568002 | Controls Price: $199.99 |
| 31 | 593820601 | NEEDS DESCRIPTION Price: Call Us |
| 32 | 501182101 | NEEDS DESCRIPTION Price: Call Us |
| 33 | 589411701 | NEEDS DESCRIPTION Price: Call Us |
| 34 | 578261701 | IGNITION SWITCH Price: $19.99 |
| 35 | 544442301 | NUT Price: $2.99 |
| 36 | 544442401 | IGNITION KEY Price: $6.99 |
