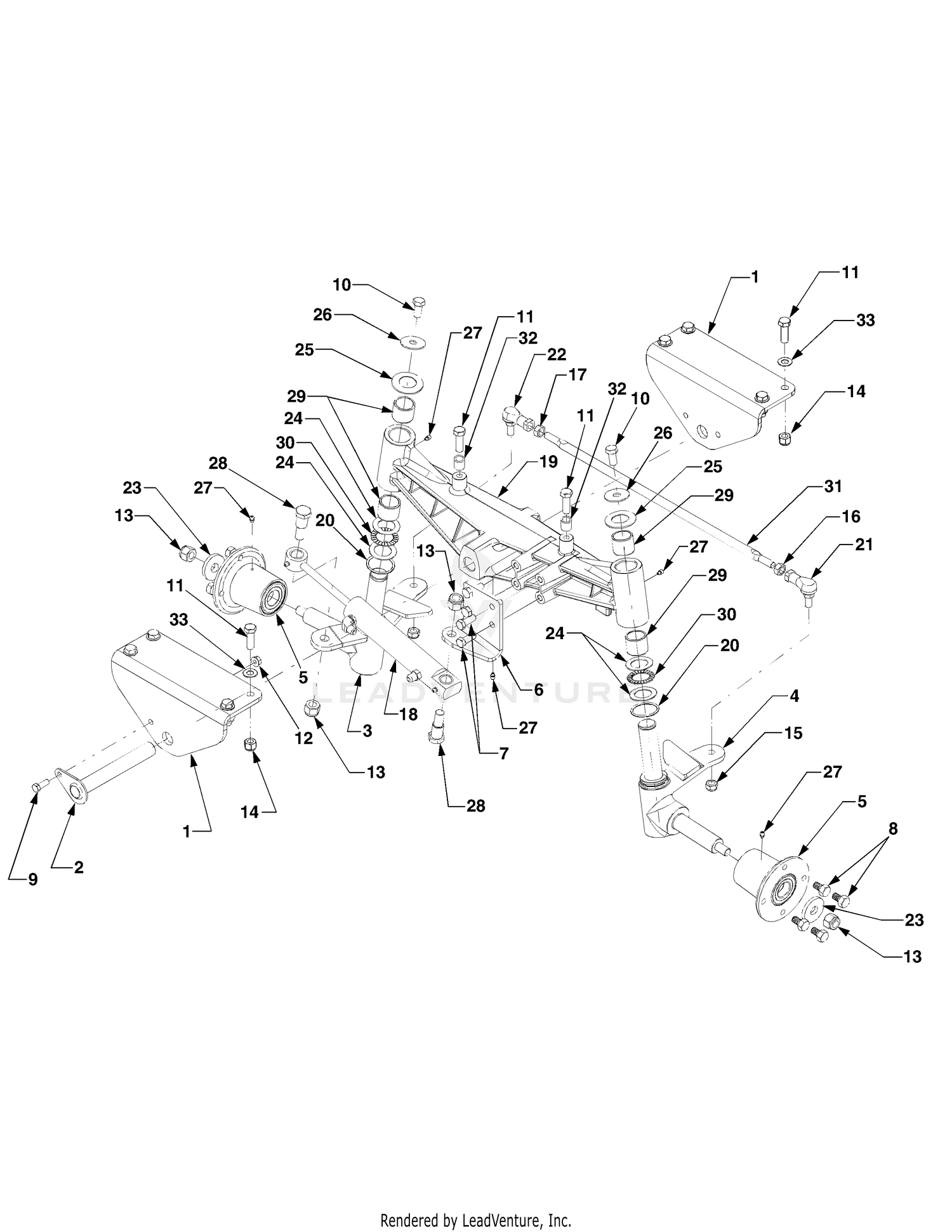

| Ref | Part Number | Description |
|---|
| 1 |
703-05204-0637 |
PLATE-AXLE PIVOT (POWDER BLACK) Not Available Price: |
| 2 |
603-0721 |
AXLE PIVOT PIN ASSEMBLY Not Available Price: |
| 3 |
603-0908B-0637 |
STEERING SPINDLE ASSEMBLY (LH) (POWDER BLACK) Not Available Price: |
| 4 |
603-0909A-0637 |
STEERING SPINDLE ASSEMBLY (RH) (POWDER BLACK) Not Available Price: |
| 5 |
619-3078AP |
FRONT WHEEL HUB ASSEMBLY Not Available This part replaces 619-3078A. Price: |
| 5 |
741-3116 |
Bearing, Ball Price: $33.37 |
| 6 |
703-05188 |
BRACKET, CYLINDER MOUNTING Not Available Price: |
| 7 |
710-04208 |
HEX SCREW M12-1.75 x 25 GR8 Not Available Price: |
| 8 |
710-1808 |
BOLT M12-1.75 C 14 GR8.8 Not Available Price: |
| 9 |
710-3118 |
Screw, Hex Cap Lock 3/8-16 x 1.0 GR5 Price: $4.77 |
| 10 |
710-3126 |
Screw, Hex Cap Lock 1/2-13 x 1.0 GR5 Price: $6.01 |
| 11 |
710-3181 |
Screw, Hex Cap 1/2-13 x 1.5 GR5 Price: $6.01 |
| 12 |
712-04065 |
Nut, Hx Insert Flnge Lk, 3/8-16 GrF (Replaces 712-3005) Price: $3.68 |
| 13 |
712-3016 |
Nut, Hex Insert Lock 5/8-11 GR5 Price: $5.94 |
| 14 |
712-3083 |
Nut, Hex Insert Lock, 1/2-13 GR8 Price: $4.05 |
| 15 |
712-3103 |
Nut, Hex Flange Lock, M12 x1.75 Not Available Price: |
| 16 |
712-3104 |
Nut, Hex, M12 x 1.75 RH Thrd .. Price: $6.01 |
| 17 |
712-3105 |
NUT (LH) JAM M12X1.75 Not Available Price: |
| 18 |
917-3502 |
STEERING CYLINDER Not Available This part replaces 717-3502. Price: |
| 19 |
719-3163 |
FRONT PIVOT AXLE Not Available Price: |
| 20 |
721-0526 |
O-RING 1.374 x .139 Not Available Price: |
| 21 |
723-0462 |
Ball Joint, RH Thrd Price: $64.18 |
| 22 |
723-0463 |
Ball Joint, LH Thrd Price: $64.82 |
| 23 |
736-0746 |
FLAT WASHER .660X1.94X.25 Not Available Price: |
| 24 |
736-0748 |
Washer, Flat, 1.25 x 1.94 x .063 Price: $17.46 |
| 25 |
736-0869 |
FLAT WASHER 1.250 x 2.250 x .040 Not Available Price: |
| 26 |
736-3027 |
FLAT WASHER Not Available Price: |
| 27 |
937-3000 |
Grease Fitting This part replaces 7373000. Price: $4.04 |
| 28 |
938-04049 |
SHOULDER BOLT .750X1.03 Not Available This part replaces 738-04049. Price: |
| 29 |
741-3110 |
SLEEVE BEARING 1.2 Not Available Price: |
| 30 |
741-3115 |
THRUST BEARING Not Available Price: |
| 32 |
750-04375 |
Spacer, .501 x .75 x .775 Price: $4.13 |
