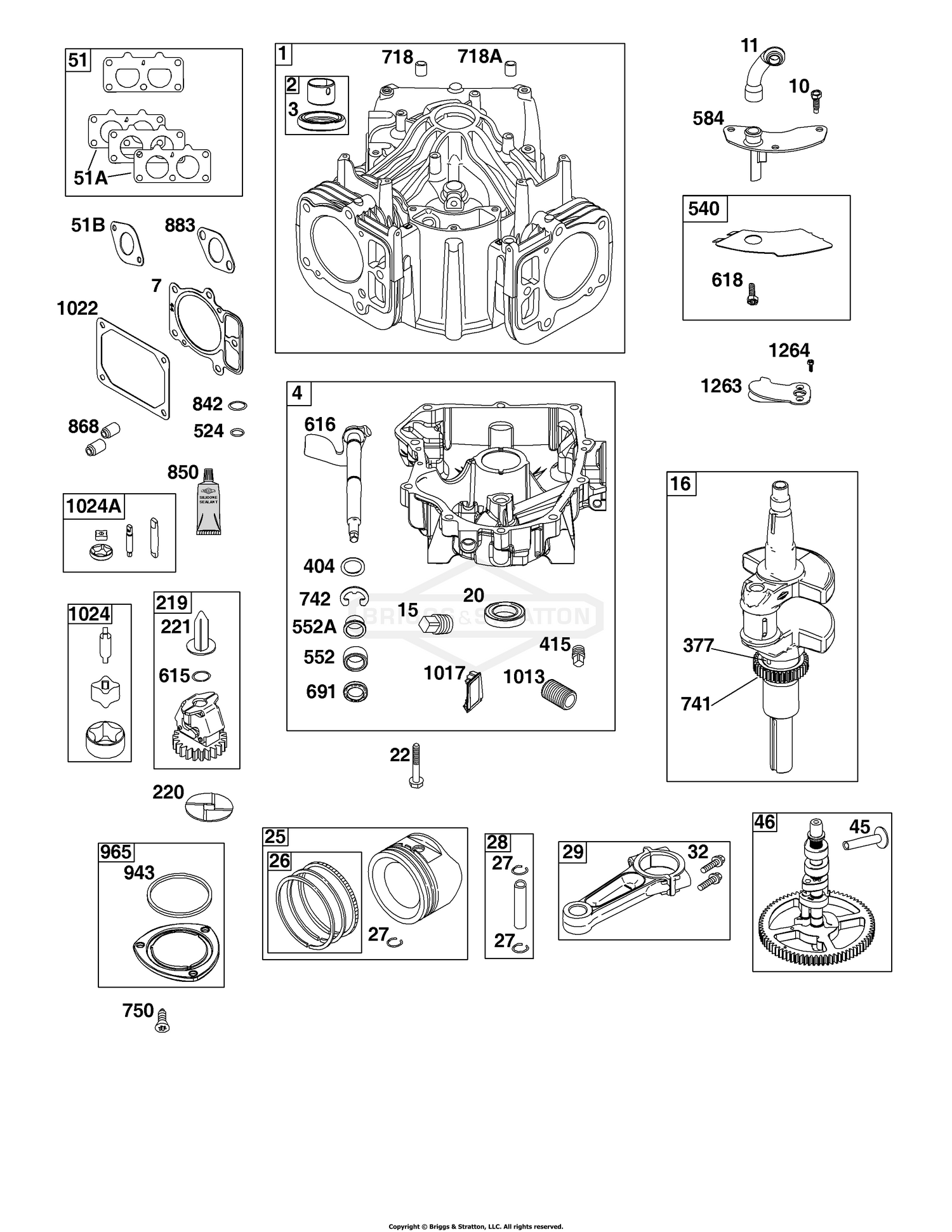

SHORT BLOCK

SHORT BLOCK

Parts (42)

RefPart NumberDescription
1 594970 CYLINDER ASSEMBLY Price: $122.72
4 594974 SUMP, Engine Price: $55.85
7 693997 GASKET, Cylinder Head Price: $22.68
11 594163 TUBE, Breather Price: $6.75
15 690946 PLUG, Oil Drain Price: $5.05
16 597790 CRANKSHAFT Price: $259.99
25 792023 PISTON ASSEMBLY Price: $141.23
26 792026 SET, Ring Price: $40.14
27 690975 LOCK, Piston Pin Price: $3.48
28 593650 PIN, Piston Price: $15.41
29 84007297 ROD, Connecting This part replaces 796209. Price: $16.29
45 690977 TAPPET, Valve Price: $7.38
46 797242 CAMSHAFT Price: $108.27
51 795123 GASKET, Intake Price: $4.15
51A 690949 GASKET, Intake Price: $2.61
51B 690949 GASKET, Intake Price: $2.61
219 793338 GEAR, Governor Price: $24.29
221 841026 CUP, Governor Price: $10.24
377 690979 KEY, Woodruff Price: $2.95
415 794903 PLUG Price: $4.82
540 594325 PLATE, Baffle Price: $6.23
552 796638 BUSHING, Governor Crank Price: $5.64
552A 690553 BUSHING, Governor Crank Price: $5.94
584 594164 COVER, Breather Passage Price: $8.23
615 698290 RETAINER, Governor Shaft Price: $3.87
616 691045 CRANK, Governor Price: $17.00
618 594326 SCREW Price: $4.94
691 790574 SEAL, Governor Shaft Price: $4.94
718 690959 PIN, Locating Price: $5.75
718A 594988 PIN, Locating Price: $6.00
741 690980 GEAR, Timing Price: $13.20
742 690328 RETAINER, E Ring Price: $3.59
850 100106 SEALANT, Liquid Price: $11.90
868 690968 SEAL, Valve Price: $8.25
883 690970 GASKET, Exhaust Price: $4.13
965 796221 COVER, Oil Pump Price: $9.39
1013 690954 NIPPLE, Oil Filter Price: $6.24
1017 796214 SCREEN, Oil Pump Price: $9.64
1022 690971 GASKET, Rocker Cover Price: $6.45
1024 796220 PUMP, Oil Price: $27.98
1024A 794644 PUMP-OIL Price: $31.15
1263 594166 REED, Breather Price: $8.34
