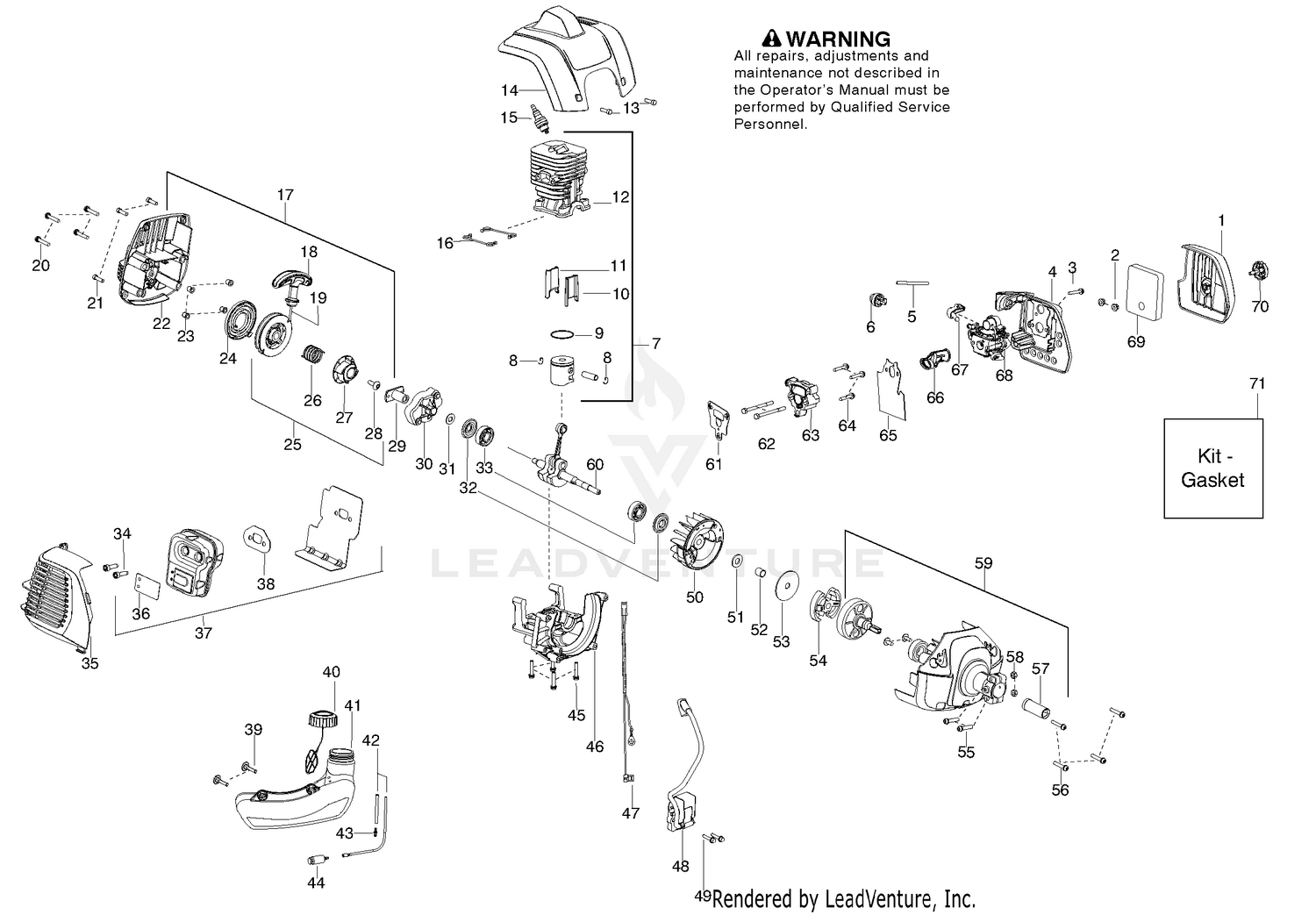

Engine
Parts (80)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 119-9303 | CROSSMEMBER Price: $298.17 |
| 1 | 545177001 | Cover-Airbox Price: $1.99 |
| 2 | 119-4005 | LH SIDEPLATE ASM Price: $110.40 |
| 2 | 530016101 | Nut-Carb. Screw Price: $1.99 |
| 3 | 119-4007 | RH SIDEPLATE ASM Price: $110.40 |
| 3 | 530016301 | Screw 8-32 Price: $1.99 |
| 4 | 115-7042 | BOLT-SHOULDER, FLANGE Price: $2.40 |
| 4 | 545176901 | Base-Airbox Price: $2.99 |
| 5 | 119-4041 | NUT-HF Price: $0.48 |
| 6 | 115-3303-03 | BAR-CUTOFF Price: $11.49 |
| 6 | 530047721 | Purge Bulb Price: $3.99 |
| 7 | 119-4012 | SCREW-HWHTF Price: $0.61 |
| 8 | 119-4095 | GRASS SHIELD ASM Price: $49.61 |
| 8 | 545194801 | Retainer-Piston pin Price: $1.99 |
| 9 | 106-2619 | STRIP-SEAL Price: $4.84 |
| 9 | 545194601 | Ring-Piston Price: $2.99 |
| 10 | 106-5344 | BUSHING-FLANGE, KEYED Price: $2.37 |
| 10 | 545194901 | Insert-Front Transfer Port Price: $1.99 |
| 11 | 106-5363 | SHAFT-ADJUSTER Price: $41.05 |
| 11 | 545195001 | Insert-Rear Transfer Port Price: $1.99 |
| 12 | 119-4164 | WASHER-WAVE Price: $2.73 |
| 12 | 545181801 | Cylinder-Machined Price: $12.99 |
| 13 | 32120-93 | RING-RETAINING Price: $2.49 |
| 13 | 530016449 | Screw M4 x1.75 x 16mm Price: $1.99 |
| 14 | 137-6130 | SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 14 | 545156401 | Cover-Top Price: $5.99 |
| 15 | 119-4155 | WASHER-HARDENED Price: $4.16 |
| 15 | 952030249 | Spark Plug (RCJ- 6Y) Price: $3.99 |
| 16 | 119-4156 | SPRING-COMPRESSION Price: $0.91 |
| 16 | 545008044 | Seal-Cylinder(Kit) Price: $6.99 |
| 17 | 119-4039 | NUT-HEX, NI Price: $0.28 |
| 18 | 545208401 | Handle-Starter Price: $4.99 |
| 18 | 99-2097 | DETENT Price: $12.71 |
| 19 | 119-4067 | SCREW-HH Price: $0.81 |
| 19 | 545029901 | Kit-Rope Price: $9.99 |
| 20 | 530015897 | Screw M4 x .8 x 25mm Price: $1.99 |
| 21 | 530016449 | Screw M4 x 1.75 x 16mm Price: $1.99 |
| 22 | 545190601 | Housing-Starter w/eyelet Price: $7.99 |
| 23 | 545185301 | Spacer Price: $1.99 |
| 24 | 545008013 | Kit-Starter Spring Price: $3.99 |
| 26 | 545188301 | Spring-Starter Hub Price: $2.99 |
| 27 | 545188001 | Hub-Starter Price: $2.99 |
| 28 | 545112801 | Screw M6 Price: $1.99 |
| 29 | 545188201 | Coupling-Starter Price: $1.99 |
| 30 | 545188701 | Assy-Starter Cup Price: $3.99 |
| 31 | 530015828 | Washer-Flat Price: $1.99 |
| 32 | 545008044 | Seal-Crankshaft (kit) Price: $6.99 |
| 33 | 545013401 | Bearing-Crankshaft Price: $6.99 |
| 34 | 530058982 | Bolt-Muffler Price: $1.99 |
| 35 | 545156301 | Guard-Muffler Price: $2.99 |
| 36 | 545224001 | SPARK ARRESTER This part replaces 545008070. Price: $2.99 |
| 38 | 545008044 | Gasket-Muffler (kit) Price: $6.99 |
| 39 | 530016445 | Screw-Tank Retainer Price: $1.99 |
| 40 | 530057973 | Assy - Fuel Cap w/retainer This part replaces 545215901. Price: $7.99 |
| 43 | 530023877 | Fitting-Fuel Line Price: $1.99 |
| 44 | 530095646 | Assy-Fuel Pickup Price: $2.99 |
| 45 | 530015897 | Screw-m5x25mm Price: $1.99 |
| 46 | 545181901 | Crankcase Price: $12.99 |
| 47 | 545191601 | Assy-Leadwire Price: $3.99 |
| 48 | 545189701 | Module-Ignition Price: $22.99 |
| 49 | 530016357 | Screw 8-32 Price: $1.99 |
| 50 | 545120401 | Assy-Flywheel Price: $9.99 |
| 51 | 530016463 | Washer Price: $1.99 |
| 52 | 530057852 | Spacer-Flywheel Price: $2.99 |
| 53 | 530094189 | Washer-Clutch Price: $2.99 |
| 54 | 530055122 | Assy-Clutch This part replaces 545008038. Price: $8.99 |
| 55 | 530015774 | Screw 10-24 x 1" Price: $1.99 |
| 56 | 530015897 | Screw M5 x 25mm Price: $1.99 |
| 57 | 545186401 | Guide-Clutch Drum Price: $2.99 |
| 58 | 530015768 | Locknut 10-24 Price: $1.99 |
| 60 | 545194001 | CRANKSHAFT This part replaces 545008047. Price: $34.99 |
| 61 | 545008044 | Gasket - Adapter / Cyl. (kit) Price: $6.99 |
| 62 | 530016418 | Bolt M5 x .80 Price: $1.99 |
| 63 | 575391501 | Adaptor-Carburetor Price: $6.99 |
| 64 | 530016441 | Screw .20 x 32 Price: $1.99 |
| 65 | 545008044 | Gasket-Carb./Adapter(kit) Price: $6.99 |
| 66 | 545190501 | Boot-Carb. Price: $1.99 |
| 67 | 574719701 | Lever - Choke (red) Price: $6.99 |
| 69 | 545195901 | Filter-Air Price: $1.99 |
| 70 | 545188801 | Assy-Airbox Knob Price: $1.99 |
