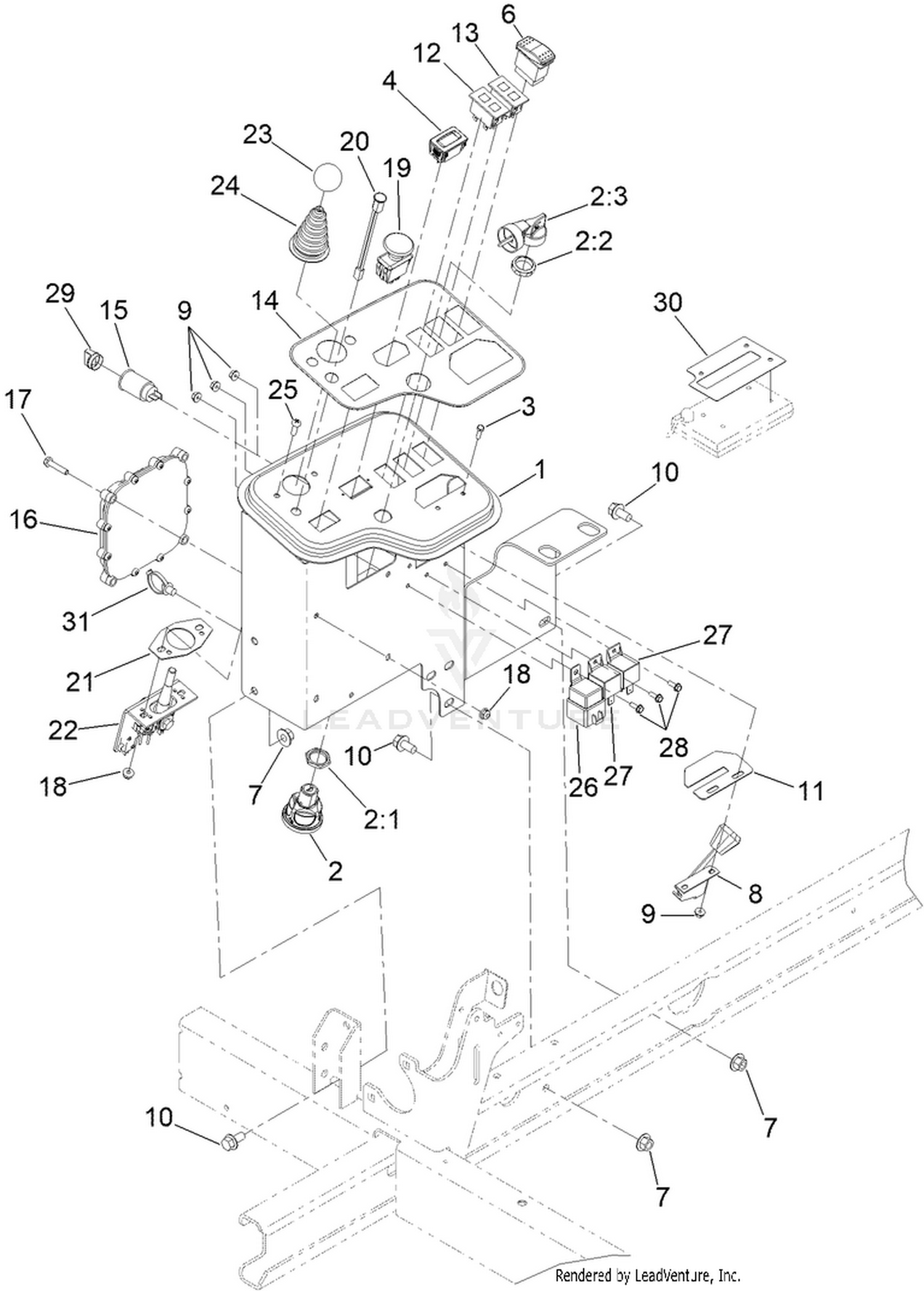

Control Panel Assembly
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-2051-03 | PANEL-CONTROL Price: $346.80 |
| 2 | 121-5159 | IGNITION SWITCH ASM Price: $84.21 |
| 3 | 3290-134 | SCREW Price: $0.27 |
| 4 | 120-2244 | HOURMETER Price: $48.06 |
| 6 | 95-8999 | SWITCH Price: $42.14 |
| 7 | 32128-43 | NUT-FLANGE Price: $0.94 |
| 8 | 138-1224 | CABLE-THROTTLE Price: $61.87 |
| 9 | 3290-148 | NUT-HF Price: $0.25 |
| 10 | 3234-1 | SCREW-HHF Price: $1.62 |
| 11 | 104-0421 | PLATE-STOP, THROTTLE Price: $15.52 |
| 12 | 100-8070 | LAMP-WARNING Price: $38.50 |
| 13 | 100-8071 | LAMP-WARNING Price: $38.50 |
| 14 | 120-2105 | DECAL-CONSOLE Price: $36.45 |
| 15 | 99-7411 | POINT-POWER Price: $30.69 |
| 16 | 122-3374 | CONTROLLER Price: $653.49 |
| 17 | 321-8 | SCREW-HH Price: $0.34 |
| 18 | 104-7201 | NUT-HF Price: $0.69 |
| 19 | 93-9999 | SWITCH-PTO Price: $42.99 |
| 20 | 95-7652 | LIGHT-INDICATOR Price: $45.99 |
| 21 | 112-9181 | PLATE-BOOT Price: $4.90 |
| 22 | 120-5280 | BRACKET-JOYSTICK Price: $203.76 |
| 23 | 233-42 | KNOB Price: $12.88 |
| 24 | 93-5961 | BOOT-LEVER Price: $56.35 |
| 25 | 3258-166 | SCREW-PRH Price: $0.28 |
| 26 | 99-7430 | RELAY-MINI Price: $22.99 |
| 27 | 99-7435 | RELAY Price: $32.43 |
| 28 | 32105-23 | SCREW Price: $0.88 |
| 29 | 99-7416 | CAP Price: $6.64 |
| 30 | 133-4914 | DECAL-DIAGNOSTIC OVERLAY Price: $13.81 |
