| Ref | Part Number | Description |
|---|
| 1 |
45368 |

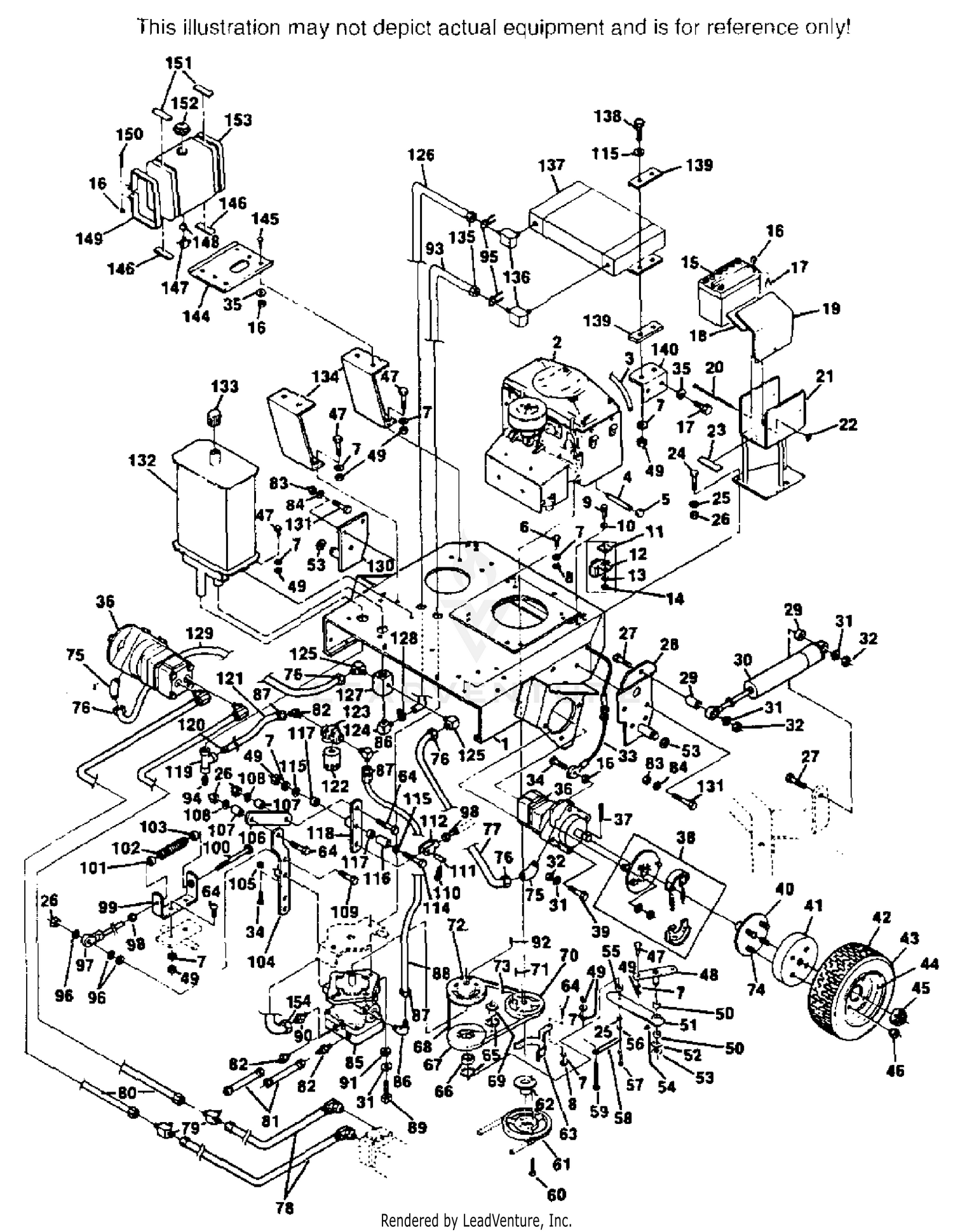

ENGINE DECK Price: Call Us |
| 2 |
48667 |
Relief Fitting, Tapered Spindle This part replaces 48371. Price: Call Us |
| 3 |
483617 |
Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) This part replaces 48058-13. Price: Call Us |
| 4 |
48511 |
OIL DRAIN EXTENSION(INCLUDES PLUG) Price: Call Us |
| 8 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 11 |
42459 |
STOP, MOWER ENGAGE Price: Call Us |
| 12 |
48395 |
SWITCH, MOWER ENGAGE Price: Call Us |
| 15 |
48015 |
BATTERY Price: Call Us |
| 18 |
48099 |
INSULATION, BATTERY COVER Price: Call Us |
| 19 |
42392 |
BATTERY COVER Price: Call Us |
| 21 |
45265 |
BATTERY BOX Price: Call Us |
| 22 |
04029-01 |
WING NUT, 1/4-20 Price: Call Us |
| 23 |
48661 |
PAD, BATTERY SUPPORT Price: Call Us |
| 28 |
45488 |
Sulky Mtg. Brkt. L.H. This part replaces 45257. Price: Call Us |
| 29 |
43041 |
SLEEVE, SHOCK ABSORBER MOUNT Price: Call Us |
| 30 |
48516 |
SHOCK ABSORBER Price: Call Us |
| 33 |
48880 |
Cable Assembly, Parking Brake LH This part replaces 48467. Price: Call Us |
| 33A |
48881 |
Cable Assembly, Parking Brake RH This part replaces 48466. Price: Call Us |
| 36 |
48439 |
MOTOR, WHITE(INCLUDES ITEM 45, LESS BRAKE Price: Call Us |
| 38 |
48461 |
PARKING BRAKE ASSEMBLY Price: Call Us |
| 40 |
46929 |
Hub Assembly This part replaces 46332. Price: Call Us |
| 41 |
48513 |
BRAKE DRUM Price: Call Us |
| 42 |
48416-07 |
RIM AND TIRE ASSEMBLY Price: Call Us |
| 43 |
48416-02 |
TIRE, 20 X 8.00-10, 4 PLY Price: Call Us |
| 44 |
48416-04 |
RIM ONLY Price: Call Us |
| 45 |
48680 |
Nut, Castle 1.0-20 UNF This part replaces 04027-03. Price: Call Us |
| 46 |
04028-01 |
WHEEL NUT Price: Call Us |
| 48 |
45037 |
IDLER PIVOT BASE Price: Call Us |
| 50 |
48100-05 |
BRONZE BUSHING Price: Call Us |
| 51 |
46327 |
PUMP IDLER ARM(INCLUDES(2) 50 AND(1) 54) Price: Call Us |
| 52 |
04041-08S |
FLAT WASHER, 3/4(49/64 X 1-1/4 X .035) Price: Call Us |
| 53 |
04050-02 |
RETAINING RING, 3/4 "E" Price: Call Us |
| 54 |
48114-04 |
Fitting, Grease This part replaces 48114-01. Price: Call Us |
| 55 |
43063 |
SPACER, IDLER Price: Call Us |
| 58 |
48560 |
SPRING, TRACTION DRIVE BELT Price: Call Us |
| 61 |
48378-01 |
PULLEY, BLADE DRIVE(INCLUDES 60 AND 62) Price: Call Us |
| 62 |
48926 |
Hub, Tapered 1.125" bore This part replaces 48378-03. Price: Call Us |
| 63 |
45222 |
BELT GUIDE Price: Call Us |
| 65 |
04050-06 |
RETAINING RING, 1-9/16 INTERNAL Price: Call Us |
| 66 |
48102 |
BEARING, IDLER PULLEY Price: Call Us |
| 67 |
46370 |
PULLEY, IDLER - TRACTION DRIVE(INCL. 65, Price: Call Us |
| 68 |
48585 |
BELT, PUMP DRIVE Price: Call Us |
| 69 |
43117 |
SLEEVE, IDLER(TAPPED) Price: Call Us |
| 70 |
48583 |
PULLEY, ENGINE - PUMP Price: Call Us |
| 71 |
04063-11 |
KEY, 1/4 X 1/4 X 2-1/2(PLATED) Price: Call Us |
| 72 |
48581 |
PULLEY, PUMP INPUT Price: Call Us |
| 74 |
04008-01 |
BOLT, HUB Price: Call Us |
| 75 |
48485-03 |
ELBOW, 45 DEG. MALE, JIC TO "O" RING Price: Call Us |
| 76 |
48353-02 |
COUPLING, SAE FLARE SWIVEL, PUSH ON HOSE END Price: Call Us |
| 77 |
48482 |
Hose, 1/4" Pushlock This part replaces 48482-02. Price: Call Us |
| 78 |
48501 |
HOSE ASSEMBLY - LH MOTOR Price: Call Us |
| 79 |
48505-01 |
TUBE TEE Price: Call Us |
| 80 |
48509 |
HOSE ASSEMBLY - RH MOTOR Price: Call Us |
| 81 |
48500 |
TUBE ASSEMBLY Price: Call Us |
| 82 |
48485-01 |
ELBOW, 45 DEG. MALE, JIC TO "O" RING Price: Call Us |
| 85 |
46761 |
PUMP W/FITTINGS STHM This part replaces 48438. Price: Call Us |
| 86 |
48350-02 |
ELBOW, 90 DEG., JIC TO "O" RING Price: Call Us |
| 87 |
48353-01 |
COUPLING, SAE FLARE SWIVEL, PUSH ON HOSE END Price: Call Us |
| 88 |
48351 |
Hose Assembly, 1/2” ID This part replaces 48351-07. Price: Call Us |
| 89 |
04015-03 |
CAPSCREW, 1/2-13 X 1-1/4 SOCKET HD. Price: Call Us |
| 90 |
48572-04 |
Tube, Union 1/2 x 1/2 This part replaces 48483-02. Price: Call Us |
| 92 |
04063-12 |
KEY, 3/16 X 5/8 WOODRUFF #61 Price: Call Us |
| 93 |
48634 |
HOSE Price: Call Us |
| 94 |
48731-02 |
PIPE PLUG, 1/2 NPT - MAGNETIC Price: Call Us |
| 95 |
48502-02 |
CORBIN CLAMP - 1" Price: Call Us |
| 97 |
48464 |
ROD END Price: Call Us |
| 99 |
421148 |
Retainer, Neutral Spring This part replaces 42667. Price: Call Us |
| 100 |
48512 |
BOLT, HEX HD., 3/8-24 X 6-3/4 SPECIAL Price: Call Us |
| 101 |
43151 |
BUSHING, SPRING KEEPER, SHORT Price: Call Us |
| 102 |
48463 |
SPRING, NEUTRAL RETURN Price: Call Us |
| 103 |
43257 |
Bushing, Spring Keeper This part replaces 43150. Price: Call Us |
| 104 |
45260 |
CONTROL ARM, PUMP Price: Call Us |
| 105 |
04021-08 |
HEX NUT, ELASTIC STOP LOCK, 1/4-20 Price: Call Us |
| 106 |
42658 |
LINK, SPEED CONTROL Price: Call Us |
| 107 |
43042 |
SLEEVE, PUMP CONTROL LINK Price: Call Us |
| 110 |
04062-02 |
HAIR PIN COTTER, SMALL Price: Call Us |
| 111 |
44024 |
CLEVIS PIN Price: Call Us |
| 112 |
48343-04 |
Clevis, 3/8-24 This part replaces 48343-02. Price: Call Us |
| 116 |
43110 |
SLEEVE, CONTROL ARM Price: Call Us |
| 117 |
48100-04 |
BRONZE BUSHING Price: Call Us |
| 118 |
46328 |
CONTROL ARM, BELLCRANK(INCLUDES(2) 117) Price: Call Us |
| 119 |
48365 |
PIPE TEE, 1/2 NPT Price: Call Us |
| 120 |
48352-01 |
COUPLING, STRAIGHT MALE, PIPE NPT, PUSH ON Price: Call Us |
| 121 |
48351 |
Hose Assembly, 1/2” ID This part replaces 48351-06. Price: Call Us |
| 122 |
48462-01 |
OIL FILTER(SPECIAL) Price: Call Us |
| 123 |
48462-02 |
HEAD, OIL FILTER Price: Call Us |
| 124 |
48486-02 |
ELBOW, 90 DEG. MALE, PIPE NPT, PUSH ON HOSE Price: Call Us |
| 125 |
48489-01 |
ELBOW, 90 DEG. MALE, JIC TO NPT Price: Call Us |
| 126 |
48635 |
HOSE Price: Call Us |
| 127 |
48532 |
MANIFOLD Price: Call Us |
| 128 |
48136-04 |
CLAMP, WORM DRIVE Price: Call Us |
| 129 |
48482 |
Hose, 1/4" Pushlock This part replaces 48482-01. Price: Call Us |
| 130 |
45256 |
HITCH BRACKET - RH Price: Call Us |
| 132 |
45266 |
OIL RESEVOIR Price: Call Us |
| 133 |
48376 |
CAP, OIL RESEVOIR Price: Call Us |
| 134 |
42386 |
MOUNTING BRACKET, FUEL TANK Price: Call Us |
| 135 |
48353-04 |
COUPLING Price: Call Us |
| 136 |
48350-05 |
ELBOW 90 DEG Price: Call Us |
| 137 |
48645 |
RADIATOR, OIL COOLER Price: Call Us |
| 139 |
48636 |
PAD, RUBBER Price: Call Us |
| 140 |
42925 |
BRACKET, RADIATOR MOUNTING Price: Call Us |
| 144 |
42377 |
SUPPORT, FUEL TANK Price: Call Us |
| 146 |
48205 |
PAD, FUEL TANK SUPPORT Price: Call Us |
| 147 |
483747 |
Ball Valve w/Screen This part replaces 48308. Price: Call Us |
| 148 |
482571 |
Bushing This part replaces 48309. Price: Call Us |
| 149 |
421239 |
Strap, Fuel Tank This part replaces 42369. Price: Call Us |
| 151 |
48292 |
PAD, FUEL TANK STRAP Price: Call Us |
| 152 |
483787 |
FUEL CAP W/GAUGE This part replaces 48658. Price: Call Us |
| 153 |
46846 |
Fuel Tank Assy. This part replaces 46174. Price: Call Us |
