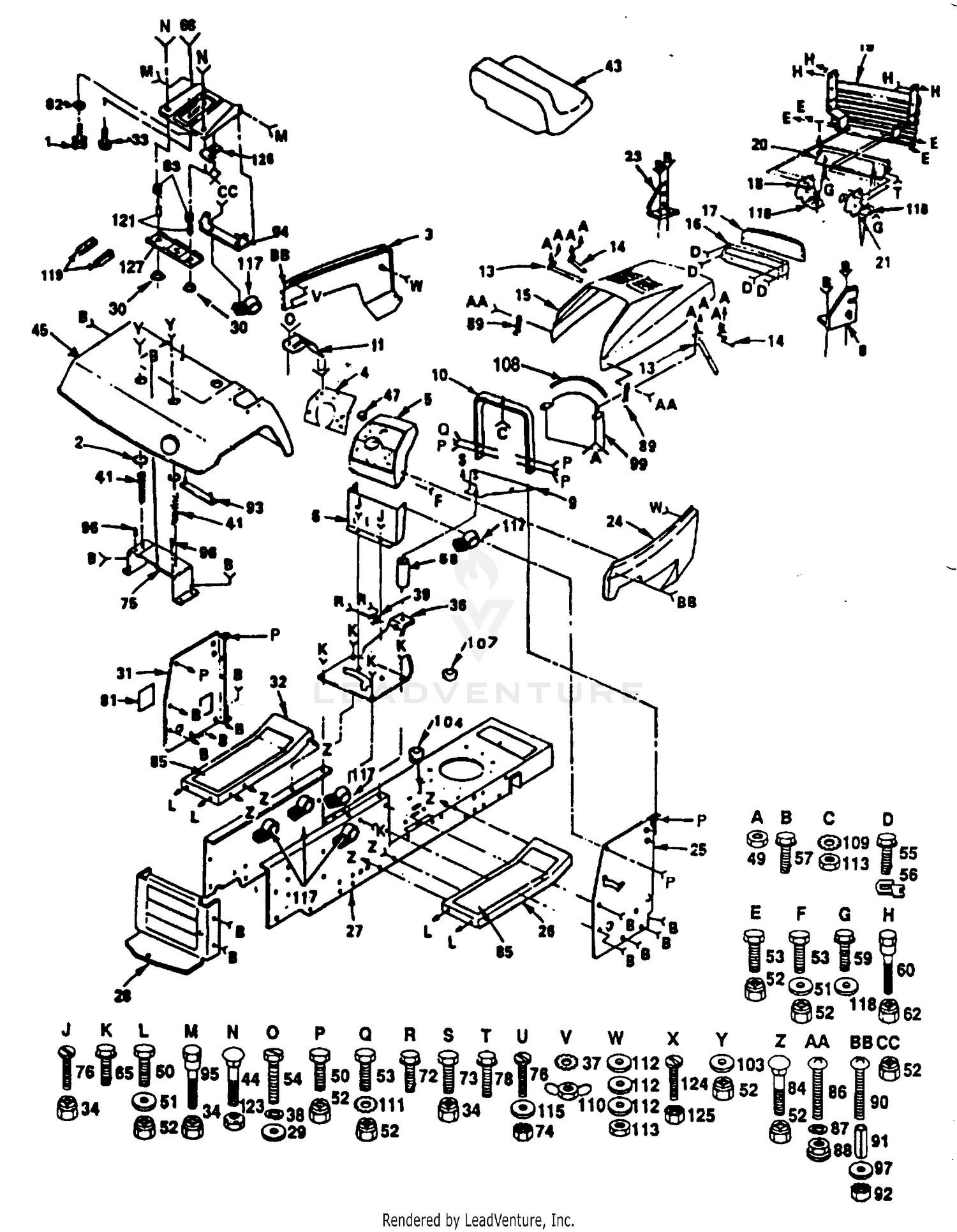

| Ref | Part Number | Description |
|---|
| 1 |
323-4 |
SCREW-HH Price: $1.02 |
| 1 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 2 |
23-2100 |
DISCONTINUED Price: Call Us |
| 2 |
532124238 |
Cap, Spring (AYP part number) Price: $3.99 |
| 3 |
21-3600 |
FOAM-SUPPORT, TANK Price: $25.75 |
| 3 |
532124986 |
Panel, Side, L.H. (AYP part number) Price: $3.33 |
| 4 |
21-3620 |
DISCONTINUED Price: Call Us |
| 4 |
532125093 |
Dash, Plate (AYP part number) Price: $3.33 |
| 5 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 5 |
532140398 |
Dash Black Yard Pro (AYP part number) This part replaces 532124252. Price: $129.99 |
| 6 |
3258-19 |
SCREW Price: $0.42 |
| 6 |
532104805 |
Dash Assembly, Lower (AYP part number) Price: $34.49 |
| 7 |
21-3630 |
DISCONTINUED Price: Call Us |
| 8 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 8 |
532110853 |
Bracket Assembly R.H. (AYP part number) Price: $3.74 |
| 9 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 9 |
532106965 |
Plate, Support, Battery (AYP part number) Price: $10.37 |
| 10 |
23-2080 |
DISCONTINUED Price: Call Us |
| 10 |
532110829 |
Support, Assembly, Dash (AYP part number) Price: $22.07 |
| 11 |
256-237 |
BUSHING Price: $14.99 |
| 11 |
532123825 |
Console, Shifter (AYP part number) Price: $17.28 |
| 12 |
321-4 |
SCREW-HH Price: $0.99 |
| 13 |
10-7950 |
GAS CAP Price: $59.46 |
| 13 |
532106784 |
Strap, Assembly, Hinge, Rear (AYP part number) Price: $82.19 |
| 14 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 14 |
532104618 |
Strap, Assembly, Hinge, Front (AYP part number) Price: $82.19 |
| 15 |
3217-5 |
NUT-HEX Price: $0.25 |
| 15 |
532124976 |
Hood (AYP part number) Price: $3.33 |
| 16 |
21-3610 |
FOAM-SUPPORT, TANK Price: $20.11 |
| 16 |
532124392 |
Bezel, Assembly (AYP part number) Price: $109.99 |
| 17 |
2412-41 |
CLAMP-R Price: $4.82 |
| 17 |
532106395 |
Lens (AYP part number) Price: $55.81 |
| 18 |
110-4100 |
HOSE-FUEL This part replaces 23-2140. Price: $28.86 |
| 18 |
532110855 |
Bracket, Pivot, L.H. (AYP part number) Price: $6.91 |
| 19 |
2412-6 |
CLAMP-HOSE Price: $4.57 |
| 19 |
532122100 |
Grill, Assembly (AYP part number) Price: $219.99 |
| 20 |
353-536 |
DISCONTINUED Price: Call Us |
| 20 |
532124978 |
Strap, Grill (AYP part number) Price: $3.33 |
| 21 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 21 |
532110854 |
Bracket, Pivot, R.H. (AYP part number) Price: $18.29 |
| 22 |
231-101 |
TIRE (23X8.5-12) 4-PLY TURF SAVER This part replaces 231-41. Price: $147.85 |
| 23 |
23-7270 |
NUT-LUG Price: $10.37 |
| 23 |
532110852 |
Bracket Assembly L.H. (AYP part number) Price: $3.79 |
| 24 |
217-105 |
DISCONTINUED X-REF Price: Call Us |
| 24 |
532124989 |
Panel, Side, R.H. (AYP part number) Price: $3.33 |
| 25 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 25 |
532110828 |
Panel, Dash, R.H. (AYP part number) Price: $17.13 |
| 26 |
43-7630 |
AXLE WA *RO This part replaces 23-1920. Price: $4,368.18 |
| 26 |
532124889 |
Footrest, R.H. (AYP part number) Price: $3.33 |
| 27 |
324-5 |
SCREW-HH Price: $0.54 |
| 27 |
532127166 |
Chassis (AYP part number) Price: $85.21 |
| 28 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 28 |
532145009 |
KIT.DRAWBAR.SERVICE This part replaces 532123785. Price: $37.99 |
| 29 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 29 |
819060718 |
Washer 3/16 x 7/16 x 18 Gauge (AYP part number) Price: $2.99 |
| 30 |
3217-6 |
NUT-HEX Price: $1.19 |
| 30 |
532121248 |
Bushing, Snap (AYP part number) Price: $3.99 |
| 31 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 31 |
532124118 |
Panel, Dash, L.H. (AYP part number) Price: $17.94 |
| 32 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 32 |
532124888 |
Footrest, L.H (AYP part number) Price: $3.33 |
| 33 |
2811-9 |
FITTING-ELBOW-90 Price: $15.86 |
| 33 |
532127018 |
Bolt, Shoulder 5/16-18 x .62 (AYP part number) Price: $3.99 |
| 34 |
289-37 |
NIPPLE-PIPE Price: $21.68 |
| 34 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 35 |
23-5180 |
DIPSTICK ASM Price: $69.61 |
| 36 |
218-219 |
DISCONTINUED Price: Call Us |
| 36 |
532123783 |
This part replaces 532124771. Price: $25.85 |
| 37 |
21-2360 |
DISCONTINUED Price: Call Us |
| 37 |
810040400 |
LOCKWASHER This part replaces 811030400. Price: $3.99 |
| 38 |
810100800 |
Washer, Lock #8 (AYP part number) Price: $1.99 |
| 39 |
532155108 |
KIT/BUSH This part replaces 532124720. Price: $3.99 |
| 41 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 43 |
532127429 |
Seat (AYP part number) Price: $129.99 |
| 44 |
872170410 |
Bolt, Carriage 1/4-20 x 1-1/4 (AYP part number) Price: $2.99 |
| 45 |
532125119 |
Fender (AYP part number) Price: $329.99 |
| 47 |
532005479 |
Plug, Dash (AYP part number) Price: $2.99 |
| 49 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 50 |
874760612 |
Bolt, Hex 3/8-16 x 3/4 (AYP part number) Price: $1.99 |
| 51 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 52 |
873680600 |
Nut, Crownlock 3/8-16 Price: $1.99 |
| 53 |
874780616 |
BOLT This part replaces 874760616. Price: $3.99 |
| 54 |
874640806 |
Screw #8-3/8 (AYP part number) Price: $2.99 |
| 55 |
817211010 |
Screw, Hex Washer Hd. Tapping #10-16 x 5/8 (AYP part number) Price: Call Us |
| 57 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 58 |
532121236 |
Spacer (AYP part number) Price: $2.38 |
| 59 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 60 |
532007605 |
BOLT This part replaces 532123481. Price: $3.99 |
| 62 |
873680400 |
Nut, Crownlock 1/4-20 (AYP part number) Price: $2.99 |
| 63 |
532123740 |
Spring, Compression (AYP part number) Price: $3.99 |
| 65 |
817490608 |
Screw, Hex Washer Head, Thread Forming 3/8-16 x 1/2 Type TT (AYP part number) Price: $3.99 |
| 66 |
532124294 |
Pan, Seat (AYP part number) Price: $14.69 |
| 72 |
817211008 |
Screw, Hex Wsh. Tap #10-16 x 1/2 (AYP part number) This part replaces 817431008. Price: $2.99 |
| 73 |
874760532 |
Bolt, Hex 5/16 -18 x 2 Grade 2 (AYP part number) Price: $2.99 |
| 74 |
873510500 |
Nut, Keps 5/16-18 (AYP part number) Price: $5.99 |
| 75 |
532137113 |
Bracket Pnt Fender (AYP part number) This part replaces 532105509. Price: $5.99 |
| 76 |
874180512 |
Screw, Machine 5/16-18 x 3/4 (AYP part number) Price: $3.99 |
| 78 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817190412. Price: $3.99 |
| 81 |
532121794 |
Cover, Access (AYP part number) Price: $3.99 |
| 82 |
819171912 |
Washer 17/32 x 1-3/16 x 12 Ga. (AYP part number) Price: $3.99 |
| 84 |
872140606 |
Bolt, Carriage 3/8-16 x 3/4 (AYP part number) Price: $3.99 |
| 85 |
532108256 |
Pad, Footrest (AYP part number) Price: $25.99 |
| 86 |
871191008 |
SCREW.PNHD.10-24 This part replaces 874191008. Price: $3.99 |
| 87 |
810071000 |
Washer, Lock #10 (AYP part number) Price: $2.99 |
| 88 |
532002029 |
NUT.WELD.#10-24 (2 2) This part replaces 532125004. Price: $2.99 |
| 89 |
532109808 |
Latch, Hood (AYP part number) Price: $2.99 |
| 90 |
874981024 |
SCREW.PAN.HEAD This part replaces 874981020. Price: $5.99 |
| 91 |
532007206 |
Spacer, Split #10 x 3/4 (AYP part number) Price: $3.99 |
| 92 |
873271000 |
NUT This part replaces 873731000. Price: $2.99 |
| 93 |
532140675 |
STRAP This part replaces 532105511. Price: $3.99 |
| 94 |
532126656 |
Bracket, Pivot, Seat (AYP part number) Price: $5.46 |
| 95 |
532139888 |
BOLT.SHOULDER.5/16-18 This part replaces 532105529. Price: $2.99 |
| 96 |
532105531 |
Nut, Push (AYP part number) Price: $2.99 |
| 97 |
819070816 |
Washer 7/32 x 1/2 x 16 Ga. (AYP part number) This part replaces 819070818. Price: $5.99 |
| 99 |
532127478 |
Baffle, Rear, Upper Price: $3.33 |
| 103 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 104 |
532124934 |
Grommet (AYP part number) Price: $5.46 |
| 107 |
532009151 |
Grommet (AYP part number) This part replaces 532110436. Price: $2.99 |
| 108 |
532109458 |
Foam, Strip (AYP part number) Price: $6.12 |
| 109 |
810040400 |
LOCKWASHER This part replaces 811050400. Price: $3.99 |
| 110 |
532146525 |
This part replaces 873490400. Price: $3.99 |
| 111 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 112 |
531003379 |
WASHER This part replaces 819091216. Price: $2.99 |
| 113 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 115 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.99 |
| 117 |
532002751 |
Clip, Insulated (AYP part number) This part replaces 532124996. Price: $2.42 |
| 118 |
819111212 |
Washer 11/32 x 3/4 x 12 Gauge (AYP part number) Price: $5.99 |
| 119 |
532121251 |
Foam Strip (AYP part number) Price: $5.46 |
| 121 |
532121249 |
Spacer, Split 0.28 x 0.88 (AYP part number) Price: $3.99 |
| 123 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 124 |
874641008 |
Screw, Sltd. Pan Hd. #10-32 x 1/2 (AYP part number) Price: $2.99 |
| 125 |
873951000 |
Nut, Keps #10-32 UNC (AYP part number) Price: $5.99 |
| 126 |
532124967 |
Clip, Insulated (AYP part number) Price: $5.46 |
| 127 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $4.99 |
