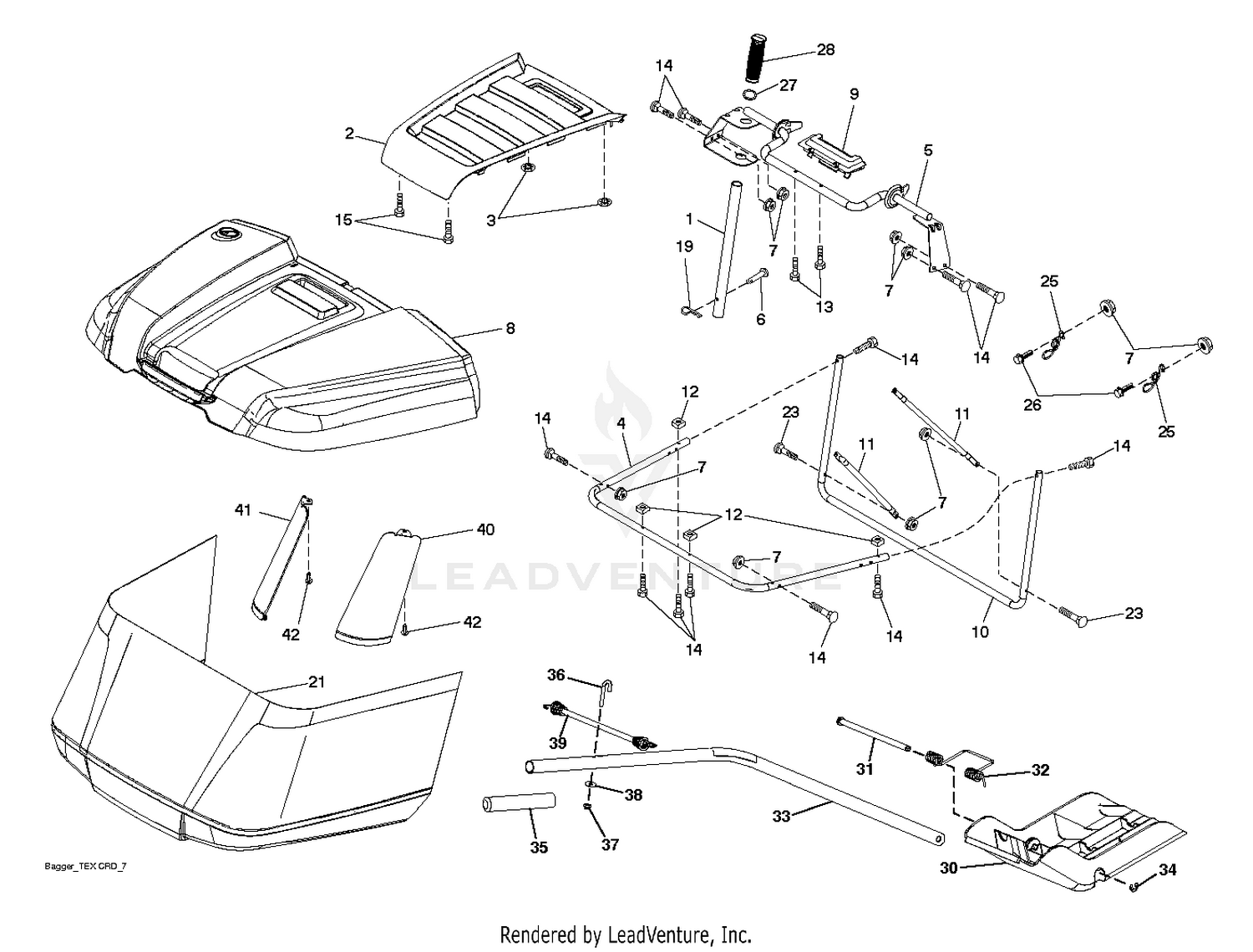

| Ref | Part Number | Description |
|---|
| 1 |
531151701 |
SERVICE KIT TUBE TUBE.HANDLE.B This part replaces 532428610. Price: $14.99 |
| 1 |
70-5020 |
CAMSHAFT GEAR This part replaces 51-6410. Price: $318.14 |
| 2 |
532441358 |
APPLIQUE.TOP.BAG.SRD.ORANGE Price: $34.99 |
| 2 |
60-7110 |
DISCONTINUED Price: Call Us |
| 3 |
51-7250 |
WASHER Price: $1.22 |
| 3 |
583343001 |
NUT.PUSH.156 This part replaces 532413808. Price: $2.99 |
| 4 |
51-5470 |
PLATE Price: $43.13 |
| 4 |
579785402 |
BAGGER SWAGE TUBE HANDLE ASSY This part replaces 532439612. Price: $44.99 |
| 5 |
51-5460 |
KEY Price: $10.14 |
| 5 |
583365901 |
FRAME.ASM.TOP.BAGGER.SRD This part replaces 532417632. Price: $89.99 |
| 6 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 6 |
70-5010 |
TAPPET This part replaces 51-5440. Price: $40.89 |
| 7 |
51-5450 |
CAMSHAFT Price: $1,030.56 |
| 7 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 8 |
51-5720 |
FRONT PLATE Price: $491.48 |
| 9 |
112-8430 |
GASKET This part replaces 51-5730. Price: $19.87 |
| 9 |
583365801 |
INSERT.HANDLE.BAGGER.SRD This part replaces 532417629. Price: $22.99 |
| 10 |
585384501 |
FRAME FRONT TUBE TEX CRD BLACK This part replaces 532436770. Price: $37.99 |
| 10 |
60-7310 |
DISCONTINUED Price: Call Us |
| 11 |
583511601 |
BRACE.SIDE.TUBE.TEX/CRD.BLACK This part replaces 532436771. Price: $11.99 |
| 12 |
51-6240 |
BEARING Price: $36.00 |
| 12 |
583391701 |
NUT.SQUARE.1/4 This part replaces 532421793. Price: $3.99 |
| 13 |
51-6200 |
CONN ROD Price: $573.19 |
| 13 |
583391201 |
SCREW.1/4X1.150.HXWSH This part replaces 532421780. Price: $2.99 |
| 14 |
51-6190 |
SNAP RING Price: $9.23 |
| 14 |
583392001 |
BOLT.SHOULDER.HX.WSH.1/4X1.150 This part replaces 532421800. Price: $6.99 |
| 15 |
583392101 |
SCREW,#8.FLAT.HEAD.DRILL.TIP This part replaces 532421801. Price: $3.99 |
| 15 |
72-0240 |
DISCONTINUED Price: Call Us |
| 16 |
51-6170 |
STD PISTON Price: $339.53 |
| 17 |
51-6160 |
PISTON RING SET Price: $239.40 |
| 18 |
51-5770 |
MAIN BEARING Price: $227.77 |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 21 |
532438162 |
Price: Call Us |
| 23 |
872040410 |
BOLT Price: $3.99 |
| 25 |
583389801 |
SPRING.LATCH.BAGGER.SRD (3 2) This part replaces 532421614. Price: $3.99 |
| 26 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 27 |
583387201 |
GROMMET.RUBBER.SRD This part replaces 532421262. Price: $3.99 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $5.99 |
| 30 |
583519701 |
PLUG.97CM.TEX.CRD.MULCH This part replaces 532437452. Price: $19.99 |
| 31 |
583507401 |
PIN.HINGE This part replaces 532435861. Price: $5.99 |
| 32 |
584455101 |
SPRING.DOUBLE.TORSION.SPRING This part replaces 532437454. Price: $11.99 |
| 33 |
583531101 |
SHAFT.TEX.CRD.MULCH.PLUG This part replaces 532438451. Price: $29.99 |
| 34 |
532437988 |
E-RING.5/16" Price: $7.99 |
| 35 |
583539101 |
GRIP.MULCH.PLUG.HAND. This part replaces 532439139. Price: $11.99 |
| 36 |
594093401 |
Bolts This part replaces 532439098. Price: $5.99 |
| 37 |
532069180 |
LOCKNUT Price: $2.99 |
| 38 |
819070818 |
WASHER Price: $5.99 |
| 39 |
583539501 |
BUNGEE.TEX.CRD This part replaces 532439242. Price: $12.99 |
| 40 |
532439418 |
Price: Call Us |
| 41 |
532439435 |
Price: Call Us |
| 42 |
583548101 |
CHRISTMAS.TREE.CLIP This part replaces 532440428. Price: $2.99 |
