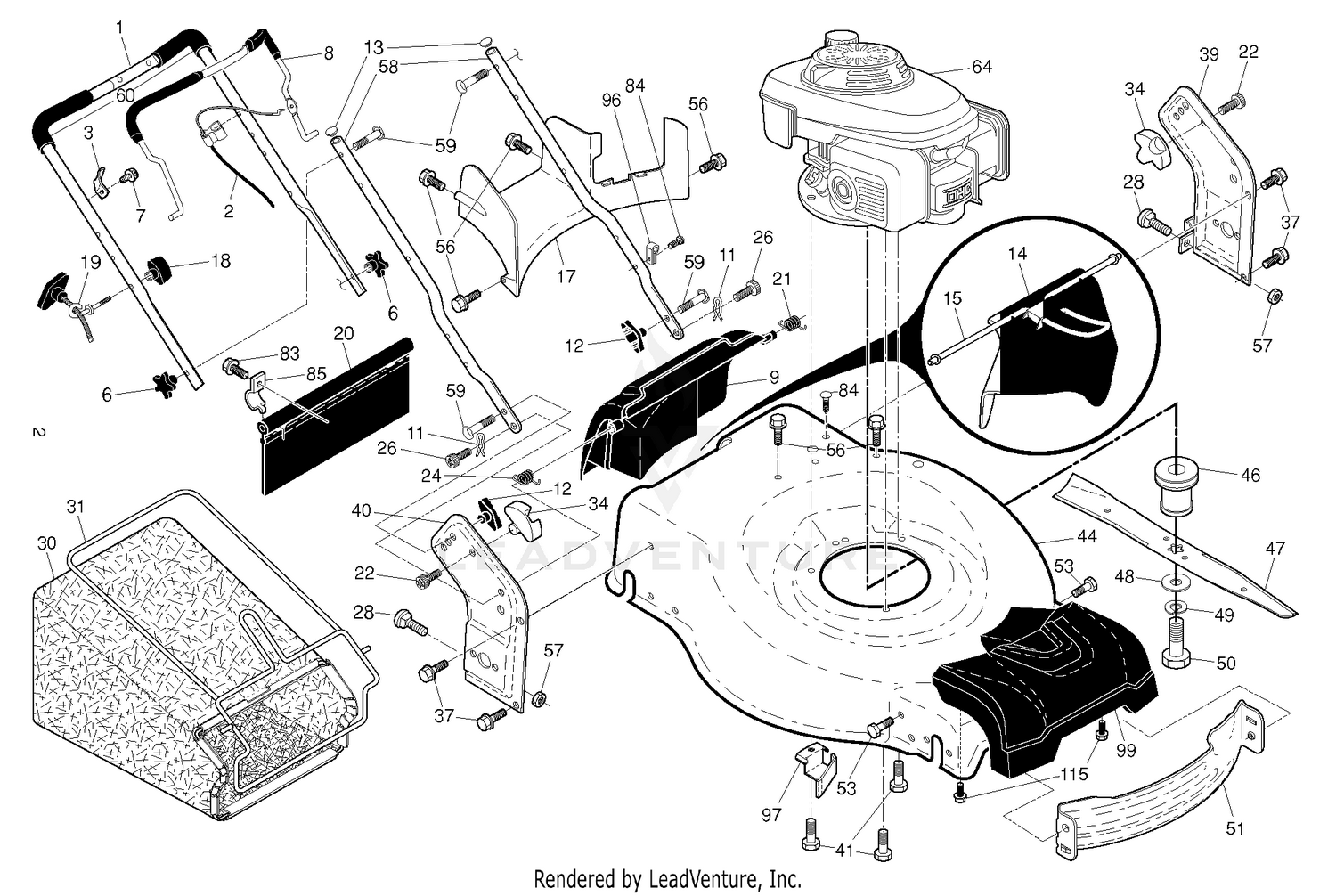

| Ref | Part Number | Description |
|---|
| 2 |
532427497 |
CABLE.MZR.50.SNAP-IN Price: $12.99 |
| 3 |
532430034 |
BRACKET.UPSTOP.RT Price: $5.99 |
| 6 |
532182398 |
KNOB.HANDLE.PLASTIC.STAR.BLACK Price: $5.99 |
| 7 |
532178848 |
SCREW Price: $3.99 |
| 8 |
580849102 |
BAIL.OVER.MOLD.ERGO.MZR.ORANGE Price: $44.99 |
| 9 |
593304501 |
DOOR ASSY REAR;22+.HUSQVARNA N This part replaces 532431390. Price: $39.99 |
| 11 |
532425575 |
COTTER.HAIRPIN.DOOR/HANDLE.PIV Price: $2.99 |
| 12 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532191938. Price: $7.99 |
| 13 |
532437516 |
PLUG.PLASTIC.7/8".14-20.GAUGE Price: $3.99 |
| 14 |
532437132 |
DEFLECTOR.CHUTE.22+REAR Price: $22.99 |
| 15 |
532437273 |
HANDLE DEFLECTOR.22+REAR Price: $14.99 |
| 17 |
581782101 |
BAFFLE.REAR.22+RGD.AWD.PLASTIC Price: $32.99 |
| 18 |
581912601 |
T-KNOB.NEW ROPE GUIDE Price: $3.99 |
| 19 |
581902101 |
GUIDE.ROPE.BLK.ZINC.CHROM Price: $3.99 |
| 21 |
532419949 |
SPRING.LH.BLACK Price: $4.99 |
| 22 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 30 |
580947302 |
GBAG.A3610010.BLK.GENERIC This part replaces 580947315. Price: $59.99 |
| 31 |
585054702 |
FRAME.GBAG.22+.BLK Price: $17.99 |
| 34 |
532438134 |
BRACKET.GRASSBAG.ATTACHING.BLK Price: $4.99 |
| 37 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 40 |
585900803 |
BRACKET.ASM.HANDLE.RT.22+.GREY Price: $19.99 |
| 41 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 46 |
581851501 |
ADAPTER.BLADE.25MM.3MPH Price: $14.99 |
| 47 |
532421825 |
BLADE.22+.PREMIUM/PREC.FGD/RGD Price: $17.99 |
| 48 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 49 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 50 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 53 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 56 |
817411312 |
SCREW.HX.13X.750 Price: $4.99 |
| 57 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 58 |
532441197 |
HANDLE.LOWER.22+BT.2PC.GRY Price: $14.99 |
| 59 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 83 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 84 |
532428124 |
FASTENER.PUSH.O.250X0.783 Price: $1.99 |
| 85 |
532434530 |
BRACKET.SKIRT.22+.BZP Price: $3.99 |
| 96 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 97 |
581115302 |
BRACKET.BELT.GUIDE.22+.BZP Price: $3.99 |
| 99 |
585668702 |
COVER.ASM.FRONT.HUSQ.22+RGD Price: $24.99 |
