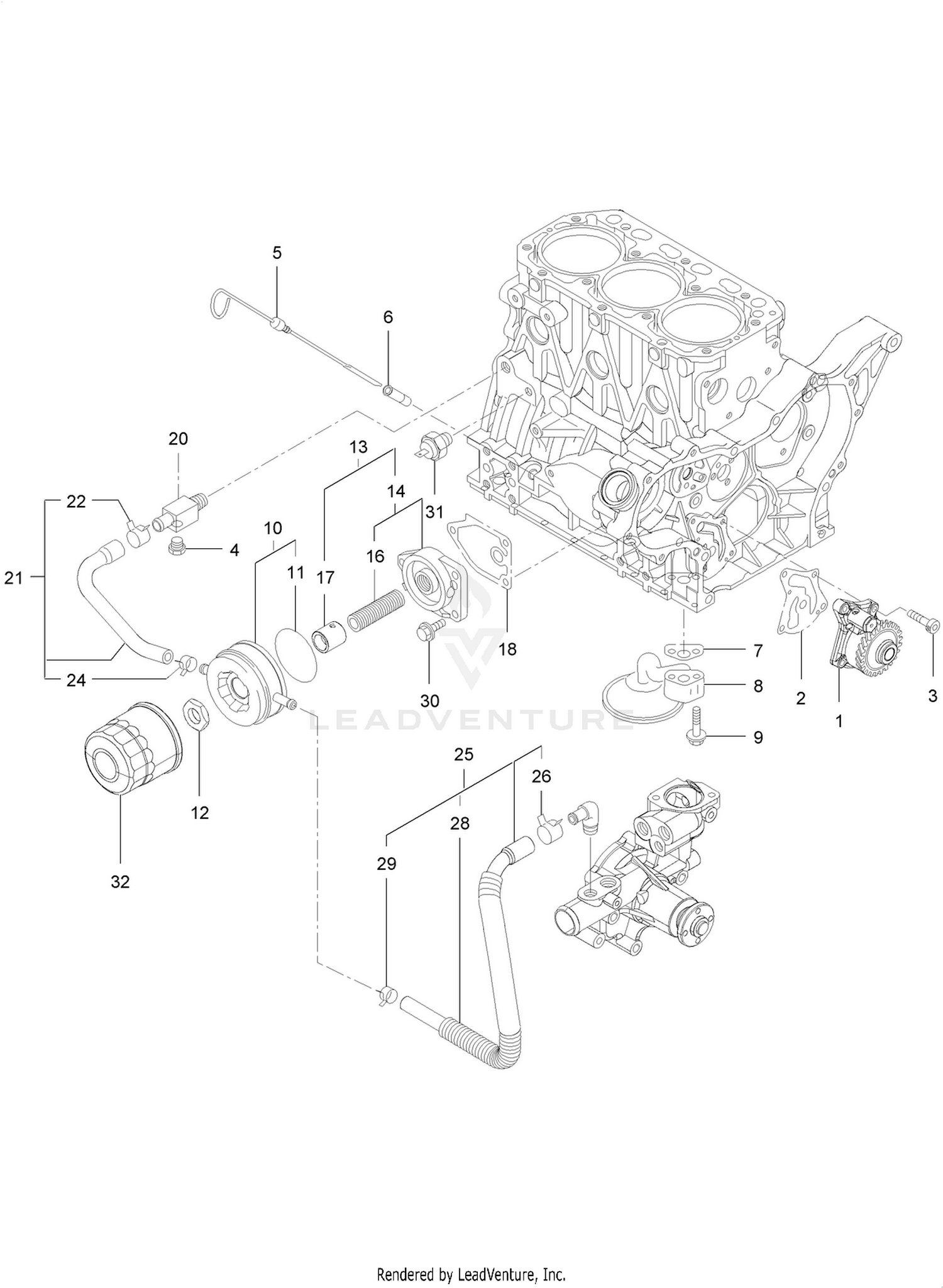

Oil Pump Assembly
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 127-4753 | OIL PUMP ASM Price: $188.99 |
| 2 | 127-3004 | GASKET Price: $2.19 |
| 3 | 125-7232 | BOLT Price: $1.29 |
| 4 | 125-7171 | PLUG-DRAIN Price: $18.99 |
| 5 | 125-6987 | DIPSTICK Price: $62.99 |
| 6 | 125-6954 | GUIDE-DIPSTICK Price: $7.99 |
| 7 | 125-7022 | GASKET Price: $2.29 |
| 8 | 135-4017 | PIPE ASM-OIL INLET Price: $100.99 |
| 9 | 125-7217 | BOLT Price: $1.39 |
| 10 | 135-4018 | COOLER ASM-OIL Price: $1,288.99 |
| 11 | 135-4019 | PACKING-OIL COOLER Price: $13.99 |
| 12 | 135-4020 | NUT Price: $8.99 |
| 13 | 135-4021 | BRACKET ASM-LO FILT Price: $111.99 |
| 14 | 125-6989 | BRACKET ASM Price: $54.99 |
| 16 | 125-7042 | STUD Price: $14.99 |
| 17 | 135-4022 | COLLAR-OIL COOLER Price: $12.99 |
| 18 | 125-7024 | GASKET Price: $2.59 |
| 20 | 125-6990 | JOINT Price: $52.99 |
| 21 | 125-7078 | PIPE ASM Price: $36.99 |
| 22 | 125-7162 | CLIP Price: $2.19 |
| 24 | 125-7191 | CLAMP-HOSE Price: $4.99 |
| 25 | 127-3804 | PIPE ASM Price: $25.99 |
| 26 | 125-7162 | CLIP Price: $2.19 |
| 28 | 127-3805 | TUBE Price: $12.99 |
| 29 | 125-7191 | CLAMP-HOSE Price: $4.99 |
| 30 | 125-7595 | BOLT Price: $0.89 |
| 31 | 125-6918 | SWITCH-OIL Price: $22.99 |
