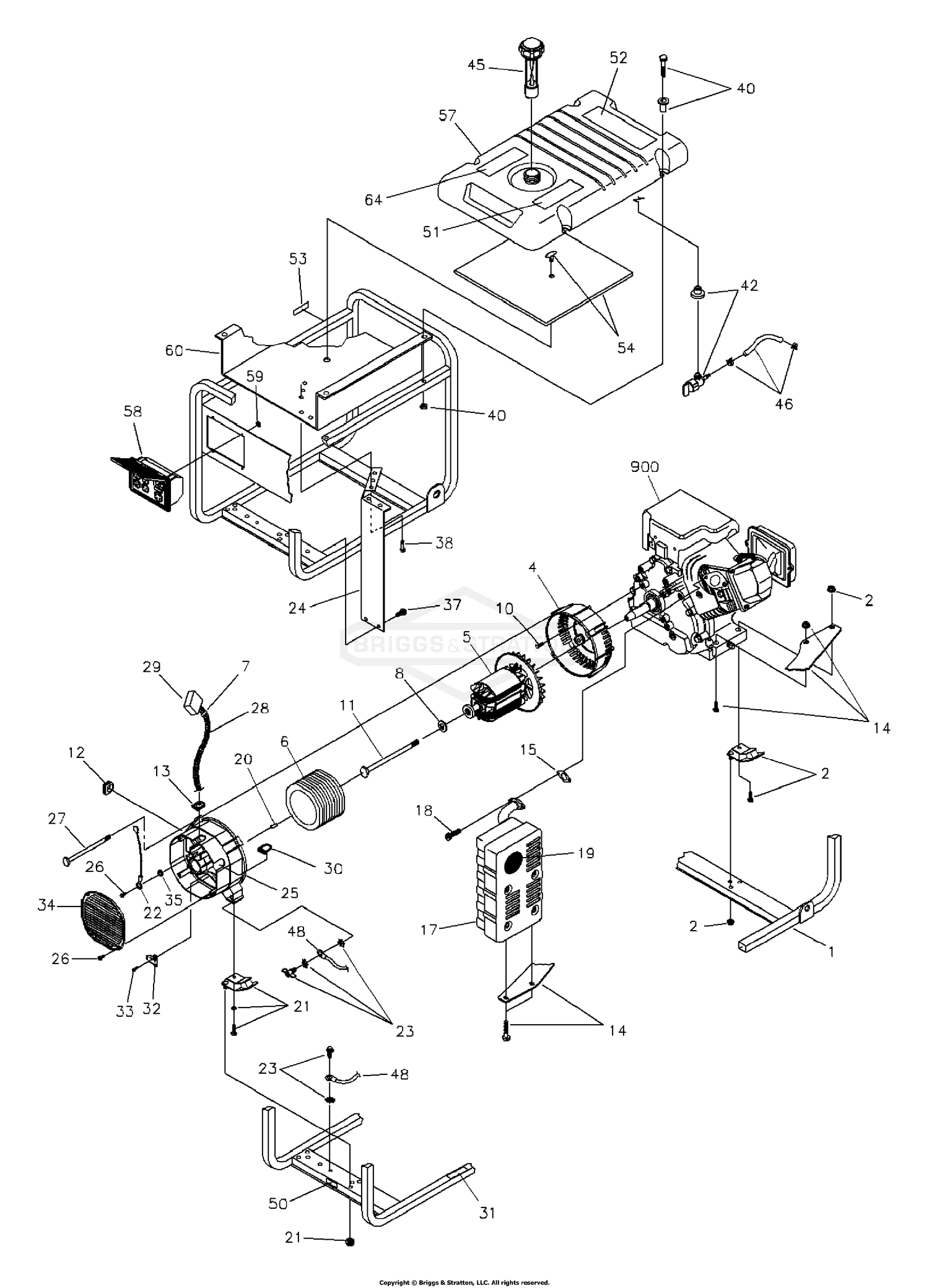

| Ref | Part Number | Description |
|---|
| 1 |
M191281GS |
CRADLE Price: $299.99 |
| 2 |
194150GS |
KIT,Vibration Mount, 45°. This part replaces 194396GS. Price: $12.92 |
| 4 |
66365GGS |
HOUSING, Engine Adapter Price: Call Us |
| 5 |
187746GS |
ASSY, Rotor Price: $254.99 |
| 6 |
187745GS |
ASSY, Stator Price: $342.00 |
| 7 |
28739AGS |
WRAP, Tie Price: Call Us |
| 8 |
96796GS |
WASHER Price: $2.79 |
| 10 |
86307GS |
SCREW Price: $2.19 |
| 11 |
99383GS |
SCREW Price: $14.89 |
| 12 |
67022GS |
GROMMET, Rubber Price: $2.55 |
| 13 |
189127GS |
GROMMET, Rubber Price: $4.19 |
| 14 |
194729GS |
KIT, Muffler & Brct Hardware This part replaces 194399GS. Price: $9.20 |
| 15 |
695398 |
GASKET, Exhaust Price: $6.62 |
| 17 |
189008GS |
MUFFLER Price: $60.60 |
| 18 |
60706GS |
SCREW Price: $1.60 |
| 19 |
83083GS |
SCREEN, Spark Arrest Price: $8.49 |
| 20 |
81917GS |
PIN, Roll Price: $2.79 |
| 21 |
194849GS |
KIT, Mount Vibration Price: $7.65 |
| 22 |
189521AGS |
WIRE, Ground, Panel Price: $3.95 |
| 23 |
193646GS |
KIT, Grounding Hardware Price: $4.49 |
| 24 |
194390GS |
SHIELD, Heat Price: $75.99 |
| 25 |
SRV66825DGS |
CARRIER, Rear Bearing Price: $120.36 |
| 26 |
74908GS |
SCREW Price: $2.69 |
| 27 |
86308AGS |
BOLT, Stator Price: $3.89 |
| 28 |
84409GS |
SLEEVING, Flexo Price: $3.30 |
| 29 |
22695GS |
FASTEN, On Tab Housing 6P Price: $3.20 |
| 30 |
84242GS |
GROMMET, Plastic Price: $4.19 |
| 31 |
191436GS |
DECAL, Hot Muffler Price: $7.19 |
| 32 |
91825GS |
ASSY, Brush Holder Price: $48.14 |
| 33 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849GS. Price: $2.96 |
| 34 |
B4871GS |
COVER, Bearing Carrier Price: $4.15 |
| 37 |
B2153GS |
SCREW Price: $3.95 |
| 38 |
56893GS |
SCREW Price: $1.95 |
| 42 |
192980GS |
KIT, Fuel Valve Price: $16.43 |
| 45 |
B4363GS |
CAP, Fuel Gauge Price: $38.55 |
| 46 |
791745 |
LINE, Fuel Price: $8.97 |
| 48 |
195373GS |
WIRE, Ground Price: $1.85 |
| 50 |
B4986GS |
DECAL, Ground, Green Price: $2.75 |
| 51 |
194799GS |
DECAL, Danger Price: $10.48 |
| 52 |
191438GS |
DECAL, Danger Price: $14.09 |
| 53 |
191435GS |
DECAL, Fuel Shut-off Price: $7.19 |
| 54 |
194448GS |
KIT, Insulation w/ Clip Price: $25.55 |
| 57 |
194851GS |
ASSY,Tank, Fuel 7-Gallon Price: $102.75 |
| 59 |
189164GS |
NUT, Palnut Price: $3.28 |
| 60 |
208564GS |
HEATSHIELD This part replaces 194389GS. Price: $107.49 |
| 64 |
191437GS |
DECAL, Instruction, Fuel Level Price: $14.09 |
