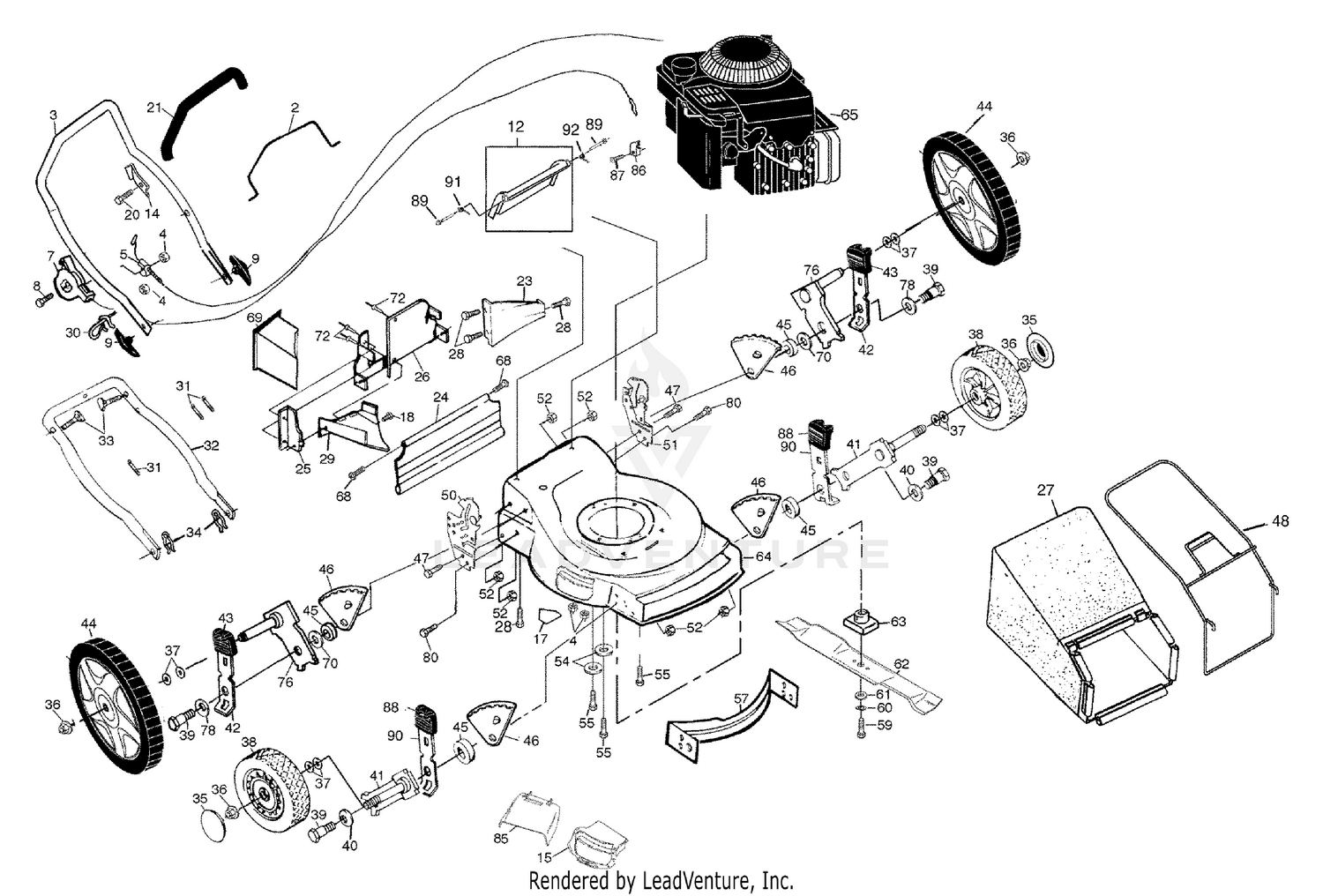

| Ref | Part Number | Description |
|---|
| 1 |
94-3123 |
CAPSCREW Price: $0.96 |
| 2 |
532176573 |
CONTROL BAR Price: $6.99 |
| 2 |
94-3117 |
DISCONTINUED Price: Call Us |
| 3 |
532167163 |
HANDLE, UPPER DLX COMF. (GRIP) Price: $37.99 |
| 3 |
94-3116 |
DISCONTINUED Price: Call Us |
| 4 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 4 |
74-7600 |
PLUG (BALL) Price: $6.93 |
| 5 |
532130861 |
CABLE.MZR.51.RT.SP./PU. Price: $10.99 |
| 5 |
94-3113 |
DISCONTINUED Price: Call Us |
| 6 |
76-5130 |
STUD Price: $2.11 |
| 7 |
532700637 |
THROTTLE CONTROL Price: $11.99 |
| 7 |
74-8900 |
WASHER-FLAT Price: $2.29 |
| 8 |
532158755 |
SCREW.PAN.HEAD This part replaces 532144929. Price: $4.99 |
| 8 |
94-3115 |
NUT Price: $1.30 |
| 9 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532136376. Price: $9.99 |
| 9 |
74-6570 |
CUP-VALVE SPRING, LOWER Price: $3.36 |
| 10 |
74-6560 |
SPRING-VALVE Price: $14.26 |
| 11 |
74-6550 |
CUP Price: $4.84 |
| 12 |
532193679 |
KIT.DOOR.ASM.REAR.PLAZ.22 This part replaces 532170947. Price: $17.99 |
| 12 |
74-7240 |
COLLAR-SPLIT Price: $5.39 |
| 13 |
74-6580 |
INSERT-VALVE (1.65MM) Price: $44.94 |
| 13 |
74-6720 |
INSERT-VALVE (2.400MM) Price: $9.73 |
| 13 |
74-6980 |
INSERT-VALVE (3.050MM) Price: $9.31 |
| 14 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 14 |
74-6540 |
TAPPET-VALVE Price: $41.87 |
| 15 |
532147738 |
DOOR.ASM.MULCHER.COMBI-CUT. This part replaces 532150756. Price: $24.99 |
| 15 |
74-7570 |
LIFTING HOOK This part replaces 94-3135. Price: $9.76 |
| 16 |
74-7560 |
LOCKWASHER Price: $0.67 |
| 17 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $3.99 |
| 17 |
76-5470 |
CAPSCREW-HH Price: $2.24 |
| 18 |
532150050 |
SCREW.HXTAP.10-24 Price: $2.99 |
| 18 |
74-7630 |
GASKET-COVER, VALVE Price: $30.06 |
| 19 |
74-7640 |
COVER-VALVE Price: $171.54 |
| 20 |
74-7650 |
WASHER-FLAT Price: $1.03 |
| 20 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 21 |
585161003 |
GRIP.HANDLE.FOAM.438MM This part replaces 532164265. Price: $4.99 |
| 21 |
94-3125 |
DISCONTINUED Price: Call Us |
| 22 |
94-3124 |
SCREW-HH Price: $1.30 |
| 23 |
532133040 |
REAR BAFFLE This part replaces 532125348. Price: $4.99 |
| 24 |
532413160 |
SKIRT.REAR.22RD/SD.FO/VE This part replaces 532140540. Price: $11.99 |
| 25 |
532138860 |
SIDE BAFFLE Price: $3.16 |
| 25 |
98-3840 |
BRACKET This part replaces 94-3137. Price: $9.35 |
| 26 |
532166800 |
BACK PLATE Price: $6.39 |
| 26 |
94-3139 |
SCREW Price: $14.51 |
| 27 |
532410685 |
GBAG.29510010.BLK.GEN.250R2 This part replaces 532176575. Price: $54.99 |
| 27 |
94-3174 |
WASHER-REPAIR Price: $10.07 |
| 28 |
532054583 |
SCREW Price: $4.99 |
| 28 |
74-7270 |
WASHER-FLAT Price: $3.60 |
| 29 |
532176655 |
BAFFLE.DISCHRG.22RD.VE.N/SLOTS This part replaces 532177133. Price: $8.99 |
| 29 |
74-7260 |
BOLT-HEAD Price: $17.07 |
| 30 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532132001. Price: $7.99 |
| 30 |
94-3197 |
O-RING Price: $2.63 |
| 31 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 31 |
94-3196 |
DISCONTINUED Price: Call Us |
| 32 |
532175245 |
HANDLE.LOWER.21.FWGD.BLACK This part replaces 532153605. Price: $19.99 |
| 32 |
94-3118 |
DISCONTINUED Price: Call Us |
| 33 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532131959. Price: $9.99 |
| 33 |
74-7840 |
PLUG Price: $2.02 |
| 34 |
3253-4 |
WASHER-LOCK This part replaces 68-9420. Price: $0.25 |
| 34 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 35 |
532077400 |
CAP.HUB.BLACK.WALK Price: $4.99 |
| 35 |
94-3198 |
SCREW-HHF Price: $2.62 |
| 36 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 36 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 37 |
532428450 |
KIT.O-RING/WASHER This part replaces 532057143. Price: $3.99 |
| 37 |
94-3200 |
DISCONTINUED Price: Call Us |
| 38 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 38 |
532750550 |
WHEEL.8X2.PR.LP.RAD.GREY Price: $27.99 |
| 39 |
532174719 |
BOLT SHOULDER 3/8 -16X1 This part replaces 532142748. Price: $7.99 |
| 39 |
94-3199 |
PIPE-BY PASS Price: $195.25 |
| 40 |
532062335 |
WASHER.BELLEVILLE (3 2 LB) Price: $7.99 |
| 40 |
98-9971 |
HOSE - BY PASS Price: $76.81 |
| 41 |
532145935 |
ARM.AXLE.ASM.BZP This part replaces 532149857. Price: $4.99 |
| 41 |
74-7400 |
TUBE Price: $46.54 |
| 42 |
532198456 |
SPRING.SELECTOR.EXTENSION This part replaces 532177132. Price: $5.99 |
| 42 |
74-7840 |
PLUG Price: $2.02 |
| 43 |
532175477 |
SELECTOR KNOB Price: $3.99 |
| 43 |
94-3122 |
GASKET Price: $5.17 |
| 44 |
532752063 |
WHEEL.14X2.PR.SP.RAD.GY Price: $69.99 |
| 44 |
94-3121 |
PLUG Price: $12.11 |
| 45 |
532401629 |
SPACER.HEIGHT.ADJUSTER This part replaces 532146630. Price: $3.99 |
| 45 |
74-7420 |
BALL Price: $1.11 |
| 46 |
532700325 |
WHEEL ADJUSTING BRACKET This part replaces 532155047. Price: $3.99 |
| 46 |
74-7430 |
CHAMBER-TURBULENCE Price: $119.14 |
| 47 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 47 |
92-7792 |
GUIDE-VALVE (14.29 MM) Price: $25.96 |
| 48 |
532169931 |
CATCHER FRAME Price: $44.99 |
| 48 |
74-7450 |
DISCONTINUED Price: Call Us |
| 49 |
74-7480 |
VALVE-INTAKE Price: $55.79 |
| 50 |
532195914 |
BRKT.ASM.HND/HW.RT.BLACK This part replaces 532177130. Price: $11.99 |
| 50 |
92-7794 |
VALVE-EXHAUST Price: $72.59 |
| 51 |
532195915 |
BRACKET.ASM.HDL.LT.EZEM.22.BLA This part replaces 532177131. Price: $11.99 |
| 51 |
92-7795 |
SEAT-VALVE Price: $56.11 |
| 52 |
596322601 |
Nuts This part replaces 532751592. Price: $2.99 |
| 52 |
92-7791 |
VALVE-SEAL, STEM Price: $9.11 |
| 53 |
94-8132 |
GASKET-HEAD, 1.48 Price: $239.46 |
| 54 |
532125078 |
WASHER.ENGINE.BZP Price: $4.99 |
| 54 |
94-3120 |
BRACKET Price: $216.10 |
| 55 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 57 |
532170557 |
KIT.BAFFLE.FRT.22RD.FO.PU/FWGD Price: $27.99 |
| 59 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 60 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 61 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 62 |
532141114 |
BLADE 22" Price: $24.99 |
| 63 |
532851514 |
BLADE ADAPTOR Price: $7.99 |
| 68 |
532088652 |
HINGE SCREW Price: $3.99 |
| 69 |
532166649 |
PLUG.MULCH.22RD Price: $27.99 |
| 70 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 72 |
532128415 |
RIVET BLIND Price: $3.99 |
| 76 |
532750913 |
ARM.ASM.AXLE.REAR.BZP. This part replaces 532162233. Price: $5.99 |
| 78 |
532401630 |
WASHER.CURVED.CYLINDRICAL This part replaces 532061651. Price: $3.99 |
| 80 |
874760612 |
BOLT Price: $3.99 |
| 85 |
532145285 |
CLIP-ON DISCHARGE DEFLECTOR This part replaces 532150653. Price: $8.99 |
| 86 |
532111190 |
CABLE CLAMP(ENGINE) Price: $4.99 |
| 87 |
532083816 |
SCREW.HEX.HEAD.WASHER.10-16 Price: $4.99 |
| 88 |
532087877 |
KNOB Price: $3.99 |
| 89 |
532184193 |
BOLT This part replaces 532165912. Price: $4.99 |
| 90 |
532401621 |
SPRING.SELECTOR.5POS.BZP This part replaces 532141730. Price: $4.99 |
| 91 |
532170939 |
DOOR SPRING RH Price: $5.99 |
| 92 |
532170938 |
DOOR SPRING LH Price: $4.99 |
| 530402152 |
WARNING |
DECAL This part replaces 532162300. Price: $1.33 530402152 |
