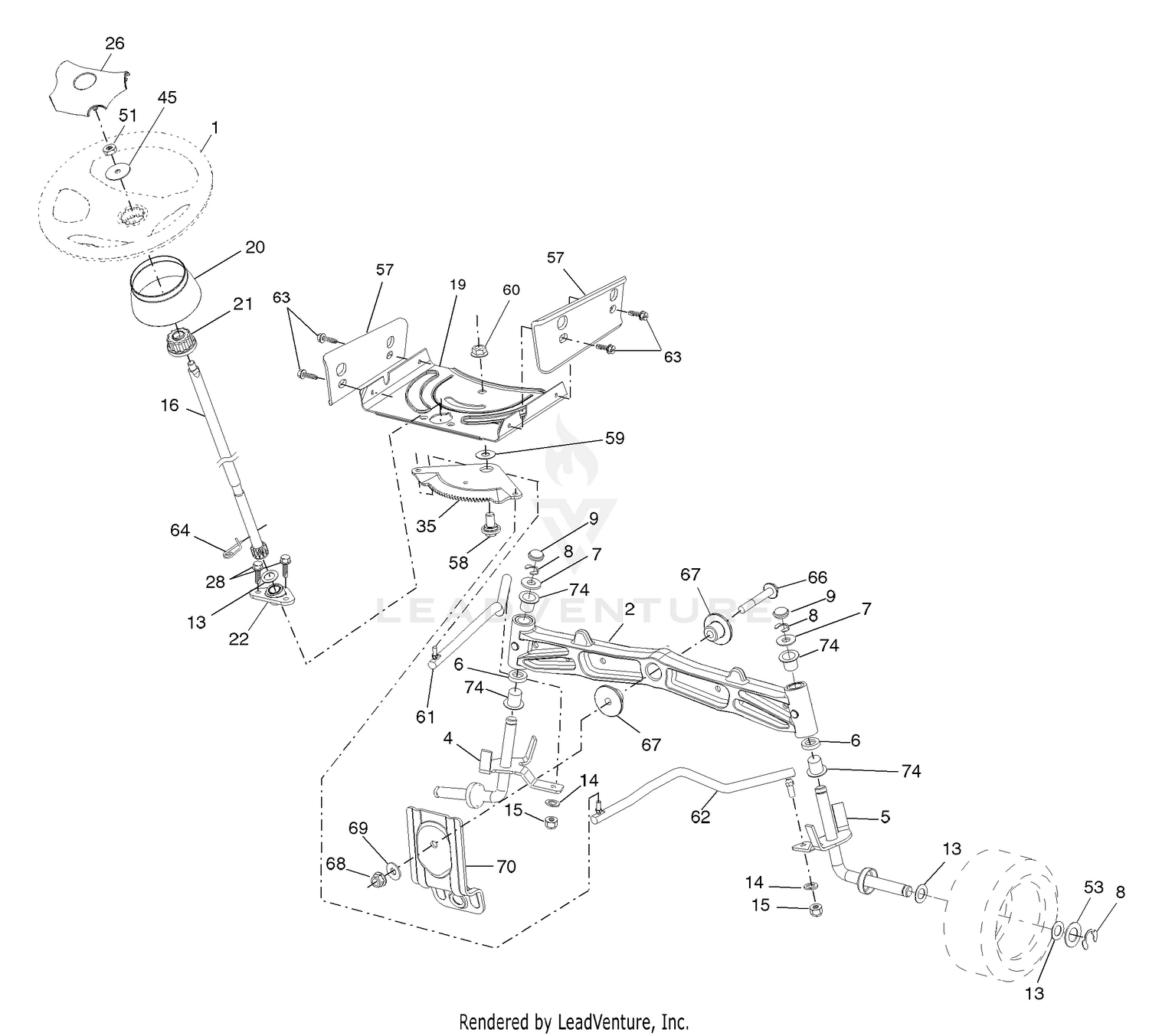

| Ref | Part Number | Description |
|---|
| 1 |
3217-7 |
NUT-HEX Price: $0.28 |
| 1 |
532186093 |
WHEEL.STEERING.LEGND2.GRY This part replaces 532193943. Price: $89.99 |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $119.99 |
| 3 |
69-9170 |
SHAFT-CRUISE Price: $17.03 |
| 4 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 4 |
596873601 |
SPINDLE.WELDED.LH.15"TEX.X431 This part replaces 532403087. Price: $14.99 |
| 5 |
42-1720 |
CORE-FIELD, COIL Price: $387.41 |
| 5 |
538691201 |
SPINDLE.WLDMT.RH.15INTIRE.X431 This part replaces 532403088. Price: $19.99 |
| 6 |
321-3 |
SCREW-HH Price: $0.28 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
3217-26 |
NUT-HEX Price: $0.25 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
3245-31 |
SCREW-HSH Price: $12.15 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
144-6182 |
PLATE-CLUTCH This part replaces 43-6110. Price: $25.59 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 10 |
43-6320 |
COLLAR Price: $24.71 |
| 11 |
69-9390 |
SHAFT-PEDAL Price: $71.62 |
| 12 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 13 |
32128-20 |
NUT-HF Price: $0.99 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 14 |
69-9030 |
POST-DEVICE, NEUTRAL Price: $39.15 |
| 15 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 532408219. Price: $34.99 |
| 16 |
74-2700-03 |
CONTROL ROD ASM This part replaces 74-2700. Price: $132.44 |
| 17 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 18 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 19 |
3220-5 |
NUT-JAM Price: $0.65 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
99-5686 |
RH SOCKET ASM This part replaces 21-0140. Price: $99.81 |
| 21 |
32136-4 |
NUT-HEX,SLOTTED Price: $1.56 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532194845. Price: $14.99 |
| 23 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 24 |
69-7650 |
DISCONTINUED Price: Call Us |
| 25 |
71-0440 |
ABRASIVE-PEDAL Price: $15.80 |
| 26 |
3245-32 |
SCREW-HSH Price: $3.59 |
| 26 |
532193652 |
INSERT.CAP.STRG.WH.GRAY Price: $11.99 |
| 27 |
43-6200 |
SPRING-COMPRESSION Price: $20.42 |
| 28 |
256-273 |
BUSHING-FLANGE Price: $4.55 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 29 |
71-0450 |
ABRASIVE-PEDAL, REAR Price: $10.39 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 45 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 51 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
