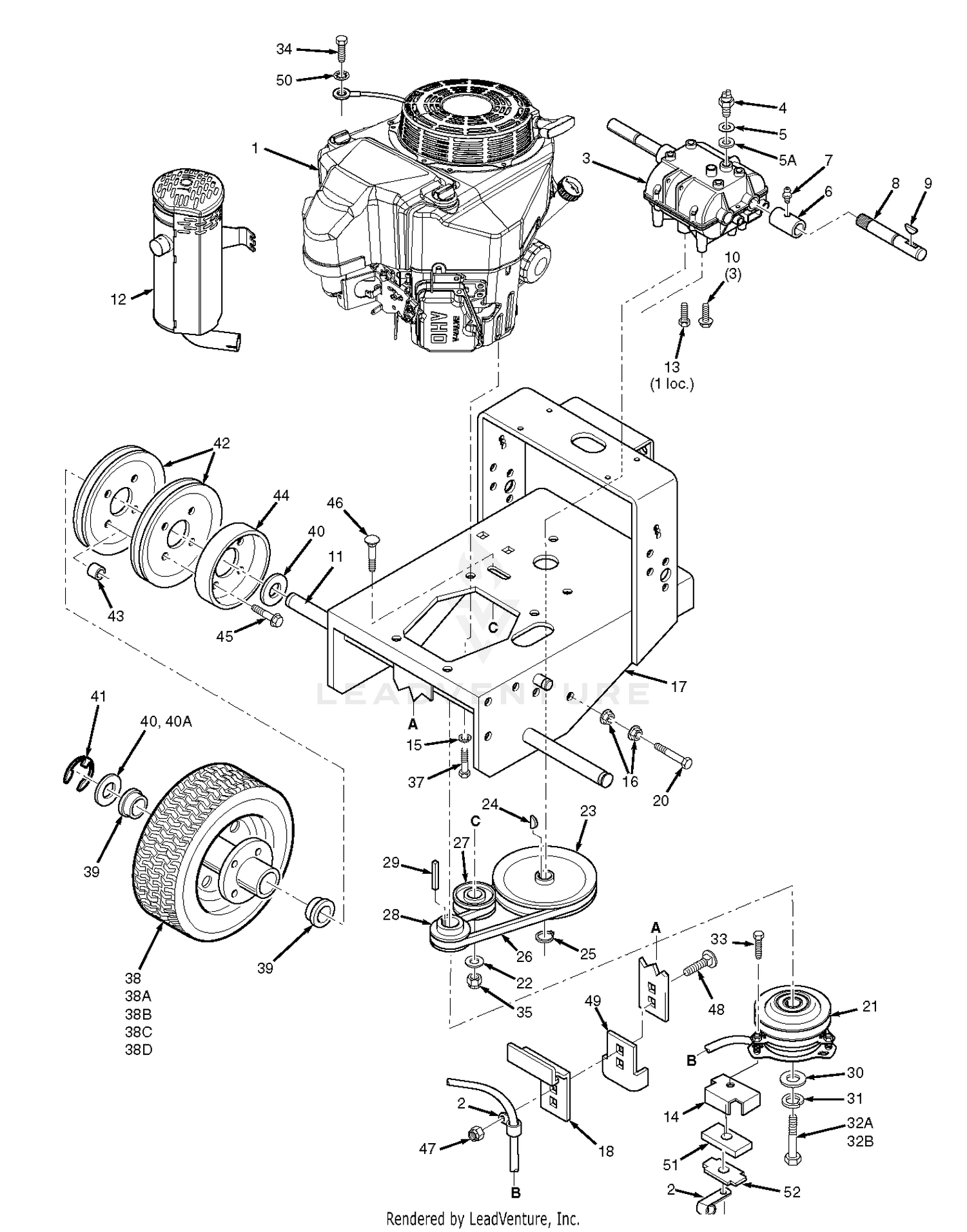

| Ref | Part Number | Description |
|---|
| 1 |
484212 |
Engine, Kawasaki FS481Z Price: Call Us |
| 1 |
484213 |
Engine, Kawasaki FS541V Price: Call Us |
| 2 |
48030-09 |
Cable Clamp Price: Call Us |
| 3 |
481580 |
Transmission, 5-speed (Peerless 700-070, 9 tooth spline) Price: Call Us |
| 4 |
48231 |
Neutral Safety Switch Price: Call Us |
| 5 |
48122-01 |
Fibre Washer, thin Price: Call Us |
| 5A |
48122-02 |
Fibre Washer, thick Price: Call Us |
| 6 |
481581 |
Coupler, Jackshaft Price: Call Us |
| 7 |
48114-05 |
Grease Fitting, straight 1/4-28 Price: Call Us |
| 8 |
481582 |
Jackshaft (fits SW32,36,48& 52) Price: Call Us |
| 9 |
04063-09 |
Key, Hi-Pro #9 Price: Call Us |
| 10 |
04017-16 |
Bolt, 5/16-18 X 3/4" Hex Head Price: Call Us |
| 12 |
484620 |
Muffler - Kawasaki Price: Call Us |
| 13 |
04001-08 |
Bolt, 5/16-18 X 3/4" Hex Head Price: Call Us |
| 14 |
422533 |
Backing Plate Price: Call Us |
| 15 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 16 |
04019-04 |
Nut, 3/8-16 Serrated Flange Price: Call Us |
| 17 |
462285 |
Engine Deck (fits SW32) Price: Call Us |
| 17 |
462286 |
Engine Deck (fits SW36,48 & 52) Price: Call Us |
| 18 |
424620 |
Plate, Clutch Bracket Price: Call Us |
| 19 |
04019-03 |
Nut, 5/16-18 Serrated Flange Price: Call Us |
| 20 |
04001-51 |
Bolt, 3/8-16 x 3-3/4" Hex Head Price: Call Us |
| 21 |
461397 |
Electric Clutch (Ogura) Price: Call Us |
| 22 |
04041-07 |
Washer, 3/8" (.391 x .938 x .105) Price: Call Us |
| 23 |
48197 |
Pulley, Transmission Input Price: Call Us |
| 24 |
04063-07 |
Key, Woodruff #9 Price: Call Us |
| 25 |
04050-09 |
Retaining Ring, 5/8" Ext, Basic Price: Call Us |
| 26 |
48203 |
Belt, Transmission Drive Price: Call Us |
| 27 |
483208 |
Idler Pulley, Transmission Price: Call Us |
| 28 |
481666 |
Pulley, Traction Drive Price: Call Us |
| 29 |
04063-19 |
Key, 1/4 x 1/4 x 3/4" Price: Call Us |
| 30 |
04041-28 |
Flat Washer, 7/16" Special Price: Call Us |
| 31 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 32A |
04102-04 |
Bolt, 7/16-20 x 2-1/2" Hex Head Price: Call Us |
| 32B |
04103-03 |
Cpsrw, M10-1.5 x55 Metric Hex Hd Price: Call Us |
| 33 |
04001-12 |
Bolt, 5/16-18 x 1-3/4" Hex Head Price: Call Us |
| 34 |
04002-06 |
Bolt, M8-1.25 x 16 Price: Call Us |
| 35 |
04021-09 |
Nut, 3/8-16 Elastic Stop Price: Call Us |
| 36 |
04040-15 |
Flat Washer, 5/16" Price: Call Us |
| 37 |
040001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4" Price: Call Us |
| 38A |
481860 |
Tire, 13 x 6.50-6, 2-ply (fits SW36,48,52) Price: Call Us |
| 38C |
481861 |
Tire, 13 x 5.00-6 2-ply (SW32 only) Price: Call Us |
| 39 |
481858 |
Wheel Bearing Price: Call Us |
| 40 |
04042-05 |
Washer, 1-1/16 x 1-3/4 x 12 ga Price: Call Us |
| 40A |
04041-14 |
Washer, 1-1/16 x 1-1/2 x 18 ga Price: Call Us |
| 41 |
04050-08 |
Retaining Ring, 1" Ext.- "E" Price: Call Us |
| 42 |
48200 |
Pulley, Wheel Drive Price: Call Us |
| 43 |
43088 |
Spacer, Wheel Pulley Price: Call Us |
| 44 |
48209 |
Brake Drum Price: Call Us |
| 45 |
04017-19 |
Bolt, 5/16-18 x 1-1/2" Serrated Flange Price: Call Us |
| 46 |
04003-03 |
Bolt, 3/8-16 x 2" Carriage Price: Call Us |
| 47 |
04021-10 |
Nut, 5/16-18 Elastic Stop Price: Call Us |
| 48 |
04003-04 |
Bolt, 5/16-18 x 1" Carriage Price: Call Us |
| 49 |
421370 |
Anti Rotation Bracket Price: Call Us |
| 50 |
04031-03 |
Lock Washer External Tooth Price: Call Us |
| 51 |
481716 |
Rubber Pad, Clutch Stop Price: Call Us |
