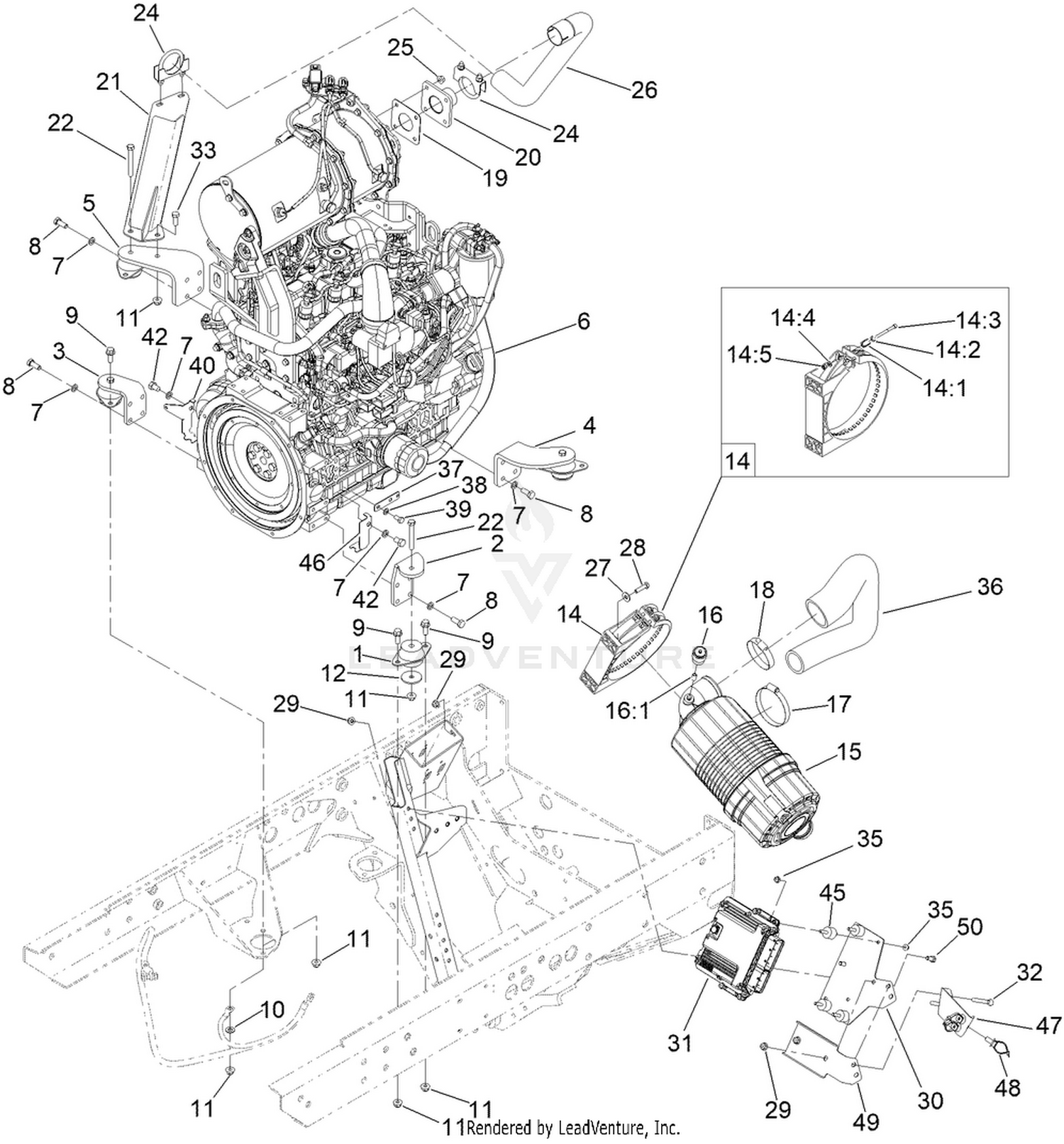

| Ref | Part Number | Description |
|---|
| 1 |
53-9682 |
MOUNT-ENGINE Price: $108.69 |
| 2 |
120-8001-0P |
MOUNT-ENGINE,LH,FRONT Price: $32.33 |
| 3 |
120-8002-0P |
MOUNT-ENGINE, RH FRONT Price: $26.44 |
| 4 |
120-8003-0P |
MOUNT-ENGINE, LH REAR Price: $41.80 |
| 5 |
120-8004-0P |
MOUNT-ENGINE, RH REAR Price: $43.35 |
| 6 |
138-6917 |
ENGINE-YANMAR, 4TNV86CT-DTR Price: $20,763.34 |
| 7 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 8 |
33115-025 |
SCREW-HH Price: $0.61 |
| 9 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 10 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 11 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 12 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 14 |
99-5414 |
STRAP-CLEANER, AIR Price: $48.46 |
| 15 |
99-5410 |
AIR CLEANER ASM Price: $381.32 |
| 16 |
104-3563 |
INDICATOR Price: $58.60 |
| 17 |
2412-110 |
CLAMP-BAND/SCREW Price: $3.60 |
| 18 |
2412-125 |
CLAMP-HOSE Price: $5.22 |
| 19 |
121-3058 |
GASKET-EXHAUST Price: $19.54 |
| 20 |
121-3060 |
FLANGE-EXHAUST Price: $113.53 |
| 21 |
121-3098-0P |
TAILPIPE SUPPORT ASM [PRIMED] Price: $113.25 |
| 22 |
323-14 |
SCREW-HH Price: $1.34 |
| 24 |
18-2130 |
CLAMP Price: $5.63 |
| 25 |
33004-00 |
NUT-HF Price: $0.34 |
| 26 |
121-3061 |
PIPE-EXHAUST Price: $77.04 |
| 27 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 28 |
322-6 |
SCREW-HH Price: $0.45 |
| 29 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 30 |
136-3405-0P |
BRACKET-ECU MOUNT Price: $28.19 |
| 31 |
121-5592 |
CONTROLLER-ENGINE Price: $3,077.07 |
| 32 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 33 |
323-6 |
SCREW-HH Price: $0.66 |
| 35 |
104-7201 |
NUT-HF Price: $0.69 |
| 36 |
121-3142 |
HOSE-AIR CLEANER, OUTLET Price: $83.16 |
| 37 |
121-5636 |
TAB-HARNESS Price: $3.37 |
| 38 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 39 |
33114-016 |
SCREW-HH Price: $0.27 |
| 40 |
127-2774 |
BRACKET-HARNESS, RH Price: $17.26 |
| 42 |
33115-016 |
SCREW-HH Price: $0.75 |
| 45 |
132-1356 |
MOUNT-ISOLATOR Price: $5.89 |
| 46 |
127-2773 |
BRACKET-HARNESS, LH Price: $14.53 |
| 47 |
136-3587-0P |
BRACKET-STRAIN RELIEF Price: $16.40 |
| 48 |
32180-031 |
CLIP-TREE (W/TIE) Price: $5.63 |
| 49 |
136-3406-0P |
SUPPORT-ECU MOUNT Price: $25.51 |
