Home / OPE / Riding Products / 653D, Groundsmaster 3240-D Traction Unit, 2009 (SN 290000001-NONE) / Engine Mounted Components

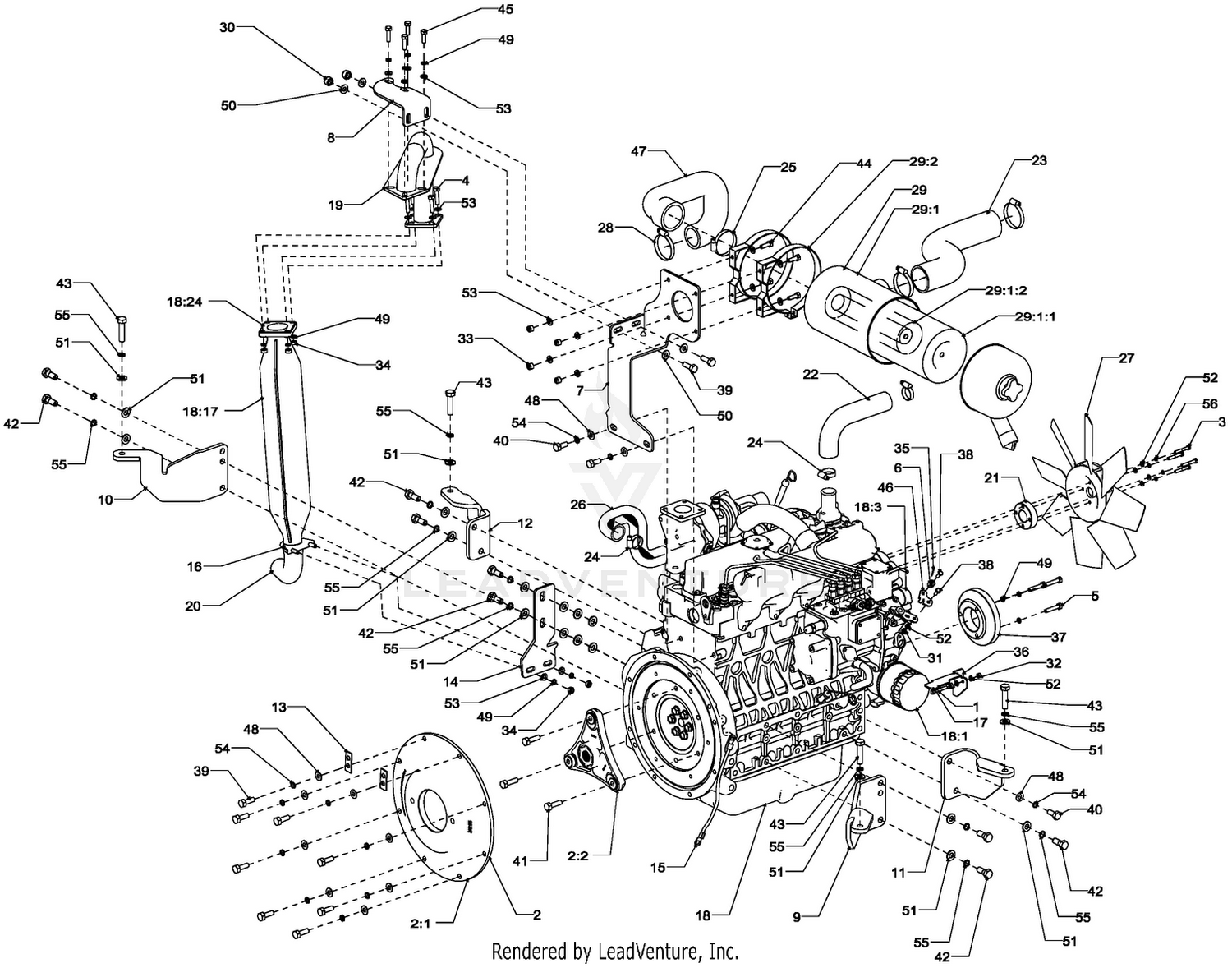

Engine Mounted Components

Engine Mounted Components

Parts (54)

RefPart NumberDescription
1 953832 ADJUSTER THROTTLE CABLE Price: $2.50
2 111-2326 BELL HOUSING AND COUPLING V2403MT Price: $552.19
3 ZBH1F040U HEX HD BOLT M6*40 Price: $1.26
4 09631 BOLT M8*35 Price: $1.40
5 09681 BOLT M8*40 Price: $1.40
6 940243 BOSS - THROTTLE CLAMP Price: $48.47
7 994242W BRACKET AIR CLEANER Price: $74.57
8 994243W BRACKET AIR CLEANER SUPPORT Price: Call Us
9 953120W BRACKET ENGINE MOUNT FRONT LH Price: $62.79
10 953121W BRACKET ENGINE MOUNT FRONT RH Price: $62.79
11 953122W BRACKET ENGINE MOUNT REAR LH Price: $60.07
12 953123W BRACKET ENGINE MOUNT REAR RH Price: $60.07
13 74-01-327 BRACKET LOOM TIE Price: $10.83
14 111-2258-03 BRACKET MUFFLER MOUNT - V2403MT Price: $35.97
15 70-09-023 EARTH CABLE Price: $10.21
16 74-07-018 CLAMP EXHAUST 45MM S.8878 Price: $3.82
17 219097 CLIP CABLE Price: $1.40
18 111-2249 ENGINE - KUBOTA V2403-M-T Price: $4,117.12
19 111-2257 EXHAUST MANIFOLD W/A - V2403MT Price: $249.28
20 950415 EXHAUST TAIL PIPE Price: $38.23
21 994509 FAN SPACER R324 Price: $62.77
22 70-07-150 HOSE RADIATOR Price: $61.59
24 924437 CLAMP-HOSE Price: $13.31
25 65-07-042 HOSE CLIP(58-75MM DIA) Price: $2.81
26 953805 HOSE RADIATOR BOTTOM Price: $66.23
27 994821 IMPELLER DIA 380 Price: $257.85
28 910936 JUBILEE CLIP 45-60MM 102010 Price: $2.97
29 111-5014 CLEANER-AIR, ASM This part replaces 953862. Price: $338.52
30 09447 NUT M10 X 1.5 NYL INS Price: $1.40
31 09438 NUT M6 X 1.5 PLAIN Price: $1.39
32 09437 NUT M6 PLAIN Price: $1.40
33 09442 NUT M8 NYL INS P TYPE Price: $1.40
34 ZNH1H000U HEX.NUT M8 Price: $1.40
35 70-07-107 SPLIT PIN 0 2,5*16 Price: $1.35
36 994382W BRACKET THROTTLE CONTROL Price: $37.99
37 966103 CRANKSHAFT PULLEY V2203 Price: $128.92
38 09362 SCREW M6 X 16 HEX HD ZINC Price: $1.42
39 09392 SETSCREW M10 X 30 HEX HD Price: $1.31
40 50-11-005 SET SCW.M10*1.25P*25LG Price: $3.19
41 111-0597 SETSCREW M10*35*1.25 FINEPITCH Price: $1.41
42 70-11-017 HEX HED SETSCREW M12*30 FINE Price: $5.90
43 09417 SETCSREW - HIGH TENSILE Price: $5.82
44 03162 STEEL BOLT Price: $1.39
45 09369 SETSCREW M8 X 30 Price: $1.40
46 994381 PLATE THROTTLE CONTROL Price: $12.19
47 111-2256 HOSE AIR TUBE - V2403MT Price: $91.67
48 09479 WASHER M10 X 21 X 1.45 THK (P) Price: $1.39
49 03469 WASHER M8 SC SPRING Price: $1.40
50 ZWQ1J000U PLAIN HEAVY WASHER M10 Price: $1.38
51 HY09485 WASHER M12 PLAIN Price: $1.40
52 09472 WASHER-PLAIN Price: $1.25
53 ZWP1H000U WASHER (M8) Price: $1.40
54 09480 WASHER M10 SC SPRING Price: $1.36
55 09599 WASHER Price: $1.42
