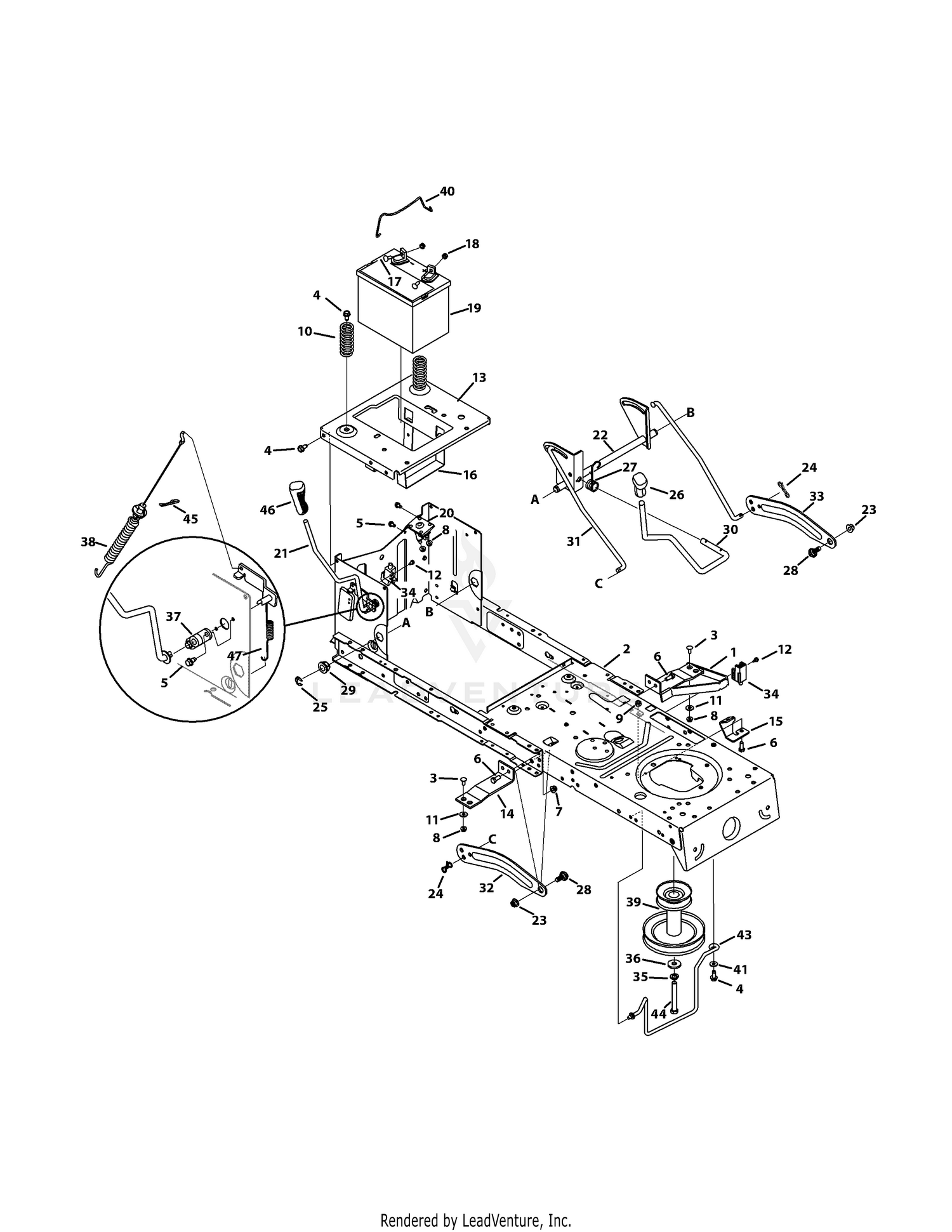

| Ref | Part Number | Description |
|---|
| 1 |
683-04195-0637 |
Support Bracket - Black Price: $37.53 |
| 1 |
683-04195-0638 |
Support Bracket - Red Price: $34.92 |
| 2 |
683-04649-0638 |
FRAME ASSEMBLY (MTD RED) Not Available Price: |
| 2 |
683-04649B-0637 |
FRAME ASSEMBLY (POWDER BLACK) Not Available This part replaces 683-04649-0637. Price: |
| 3 |
710-0134 |
Screw Carriage, 1/4-20 x .62 Price: $3.71 |
| 4 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 5 |
710-0599 |
Screw, 1/4-20 x .500 Price: $3.86 |
| 6 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 7 |
712-04063 |
Flangelock Nut, 5/16-18 Price: $3.56 |
| 8 |
712-04064 |
Flangelock Nut, 1/4-20 Price: $3.64 |
| 9 |
712-0429 |
Lock Nut, 5/16-18 This part replaces 912-0429. Price: $3.56 |
| 10 |
732-04035 |
Compression Spacer, 1.28 x 3.125 Price: $9.61 |
| 11 |
736-0173 |
Flat Washer, .28 x .74 x .063 Price: $3.76 |
| 12 |
738-04237A |
Shoulder Spacer, 10-32 x .500 Price: $5.30 |
| 13 |
783-04548D-0637 |
Seat Frame Bracket - Black Price: $51.45 |
| 13 |
783-04548D-0638 |
Seat Frame Bracket - Red Price: $47.86 |
| 14 |
783-04637-0637 |
Running Board Bracket - Black Price: $14.46 |
| 15 |
783-04753 |
Frame Support Bracket This part replaces 783-04753-0638. Price: $60.75 |
| 15 |
783-04753-0637 |
Support Frame Bracket - Black Price: $69.83 |
| 16 |
783-04869A-0637 |
Battery Bracket Price: $7.91 |
| 17 |
710-04666 |
Hex Head Flange, 1/4-20 x .75 Price: $6.04 |
| 18 |
712-0271 |
Sems Nut, 1/4-20 Price: $3.78 |
| 19 |
925-1707D |
BATTERY Not Available Price: |
| 21 |
647-04096A-0637 |
Handle Assembly, PTO This part replaces 647-04096-0637. Price: $36.03 |
| 22 |
683-04155A-0637 |
Lift Assembly, 38/42" - Black Price: $48.80 |
| 23 |
712-04065 |
Flangelock Nut, 3/8-16 Price: $3.68 |
| 24 |
714-04040 |
Bow-tie Cotter Pin Price: $1.28 |
| 25 |
716-0106A |
E Ring Price: $4.42 |
| 26 |
720-0311 |
Handle Grip, 1/2 Price: $13.26 |
| 27 |
732-04225 |
Torsion Springing Price: $10.75 |
| 28 |
738-04130A |
Shoulder Screw, .625 x .175, 3/8-16 This part replaces 738-04130. Price: $8.20 |
| 29 |
941-0225 |
Hex Flange Bearing Price: $6.55 |
| 30 |
747-04282 |
Deck Lift Handle 38" Price: $33.10 |
| 30 |
747-05296 |
Deck Lift Handle 42" Price: $23.28 |
| 31 |
747-04393 |
Lift Rod Price: $20.87 |
| 32 |
783-04494C-0637 |
Lift Arm, RH, 42" This part replaces 783-04494C-0638. Price: $19.05 |
| 33 |
783-04711C-0637 |
Lift Arm, LH, 42" This part replaces 783-04711C-0638. Price: $21.52 |
| 34 |
725-04363 |
Switch Interlock Price: $13.25 |
| 35 |
936-0171 |
Regular Duty Washer Lock, 7/16 Price: $3.86 |
| 36 |
736-0322 |
Flat Washer, .450 x 1.250 x .164 Price: $8.42 |
| 37 |
741-04119A |
PTO Bearing Price: $4.56 |
| 38 |
946-04173E |
Deck Engage Cable This part replaces 946-04173C. Price: $55.45 |
| 39 |
756-04196A |
Engine Pulley, 3.39 x 6.12, 38/42" Price: $79.88 |
| 40 |
747-04744A |
BATTERY ROD ASSEMBLY This part replaces 683-04448-0637. Price: $9.09 |
| 41 |
736-0300 |
Fl-Wash. .385" I.D. This part replaces 936-0300. Price: $3.93 |
| 42 |
783-05389A-0637 |
Frame Brace Bracket - Black Price: $7.18 |
| 42 |
783-05389A-0638 |
Frame Brace Bracket - Red Price: $6.68 |
| 44 |
710-04608 |
Hex Screw, 7/16-20 x 3.25, 38/42" Price: $5.95 |
| 45 |
714-0145 |
Click Pin This part replaces 914-0145. Price: $4.42 |
| 46 |
720-04049A |
Handle Grip, 3/8 Price: $14.09 |
