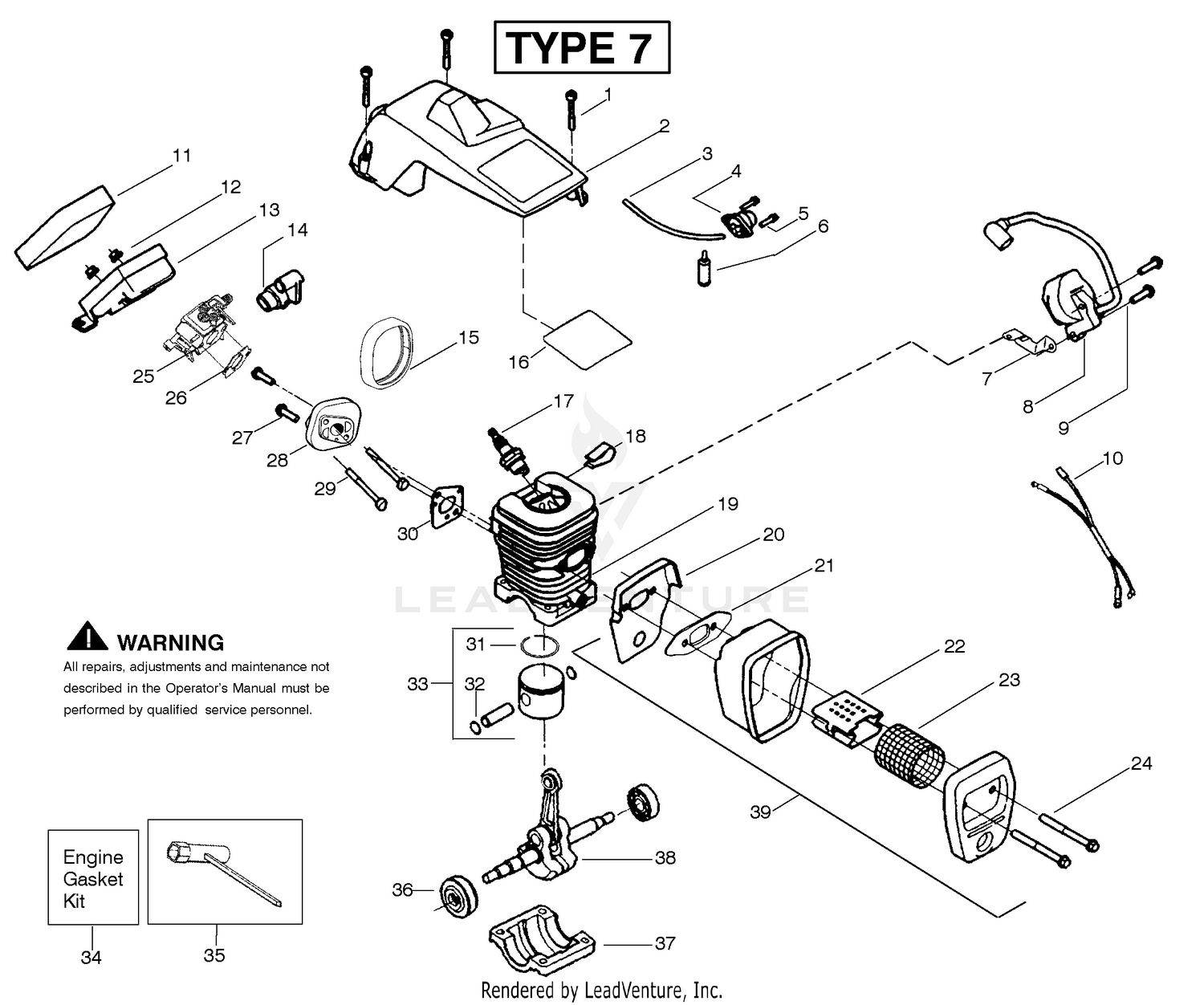

Engine Assembly Type 7
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530016153 | Screw Price: $1.99 |
| 1 | 98-5877-01 | SCREEN Price: $159.94 |
| 2 | 100-4092-01 | MOUNT-SPRING Price: $27.55 |
| 3 | 115-4902-01 | ARM Price: $176.31 |
| 4 | 115-4901-01 | STOP Price: $125.20 |
| 5 | 3241-7 | SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 5 | 530015780 | Screw Price: $1.99 |
| 6 | 3256-35 | WASHER-FLAT Price: $0.68 |
| 6 | 530095646 | Assy-Fuel Pick-up Price: $2.99 |
| 7 | 324-13 | SCREW-HH Price: $1.22 |
| 7 | 530047442 | Strap-Ground Price: $1.99 |
| 8 | 110-9655 | IDLER ARM ASM Price: $469.90 |
| 8 | 530039198 | Ignition Module Price: $29.99 |
| 9 | 302-5 | FITTING-GREASE Price: $0.59 |
| 9 | 530015814 | Screw Price: $1.99 |
| 10 | 104-0270 | MOUNT-BEARING Price: $324.50 |
| 10 | 530052296 | Assy-Wire Harness Price: $4.99 |
| 11 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 11 | 530037793 | Foam- Air Filter Price: $1.99 |
| 12 | 530016101 | Nut Price: $1.99 |
| 12 | 92-0625 | FLAT PULLEY ASM Price: $75.60 |
| 13 | 104-0265 | SPRING-EXTENSION Price: $66.36 |
| 13 | 530057480 | Assy- Air Box Price: $4.99 |
| 14 | 323-14 | SCREW-HH Price: $1.34 |
| 14 | 530035526 | Grommet-Carb Adjust Price: Call Us |
| 15 | 323-2 | SCREW-HH Price: $0.68 |
| 15 | 530054144 | Seal-Carb Adapter Price: $2.99 |
| 16 | 3256-25 | WASHER-FLAT Price: $0.25 |
| 16 | 530055698 | Reflector-Heat Price: $1.99 |
| 18 | 530016136 | Clip-High Tension Lead Price: $1.99 |
| 19 | 323-7 | SCREW-HH Price: $0.65 |
| 19 | 530012550 | Cylinder Price: $17.99 |
| 20 | 3296-48 | NUT-LOCK, NI Price: $0.37 |
| 20 | 530049870 | Backplate-Muffler Price: $3.99 |
| 21 | 323-5 | SCREW-HH Price: $0.41 |
| 22 | 3253-21 | WASHER-LOCK Price: $0.28 |
| 22 | 530037813 | Diffuser-Muffler Price: $1.99 |
| 23 | 324-6 | SCREW-HH Price: $0.81 |
| 23 | 530036103 | Screen-Spark Price: Call Us |
| 24 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 24 | 530016132 | Bolt-Muffler Price: $1.99 |
| 25 | 94-8987 | BEARING Price: $162.04 |
| 27 | 530016386 | Screw Price: $5.99 |
| 28 | 530049700 | Carb. Adapter Price: $3.99 |
| 29 | 530016187 | Screw Price: $1.99 |
| 31 | 545160401 | Ring-Piston This part replaces 530038729. Price: $2.99 |
| 32 | 530015697 | Retainer-Piston Pin Price: $1.99 |
| 35 | 530031163 | Bar Wrench Price: $4.99 |
| 36 | 530056363 | Assy-Seal & Bearing Price: $11.99 |
| 37 | 530037935 | Cap-Crankcase Price: $8.99 |
| 38 | 545113101 | CRANKSHAFT ASSY This part replaces 530047062. Price: $54.99 |
