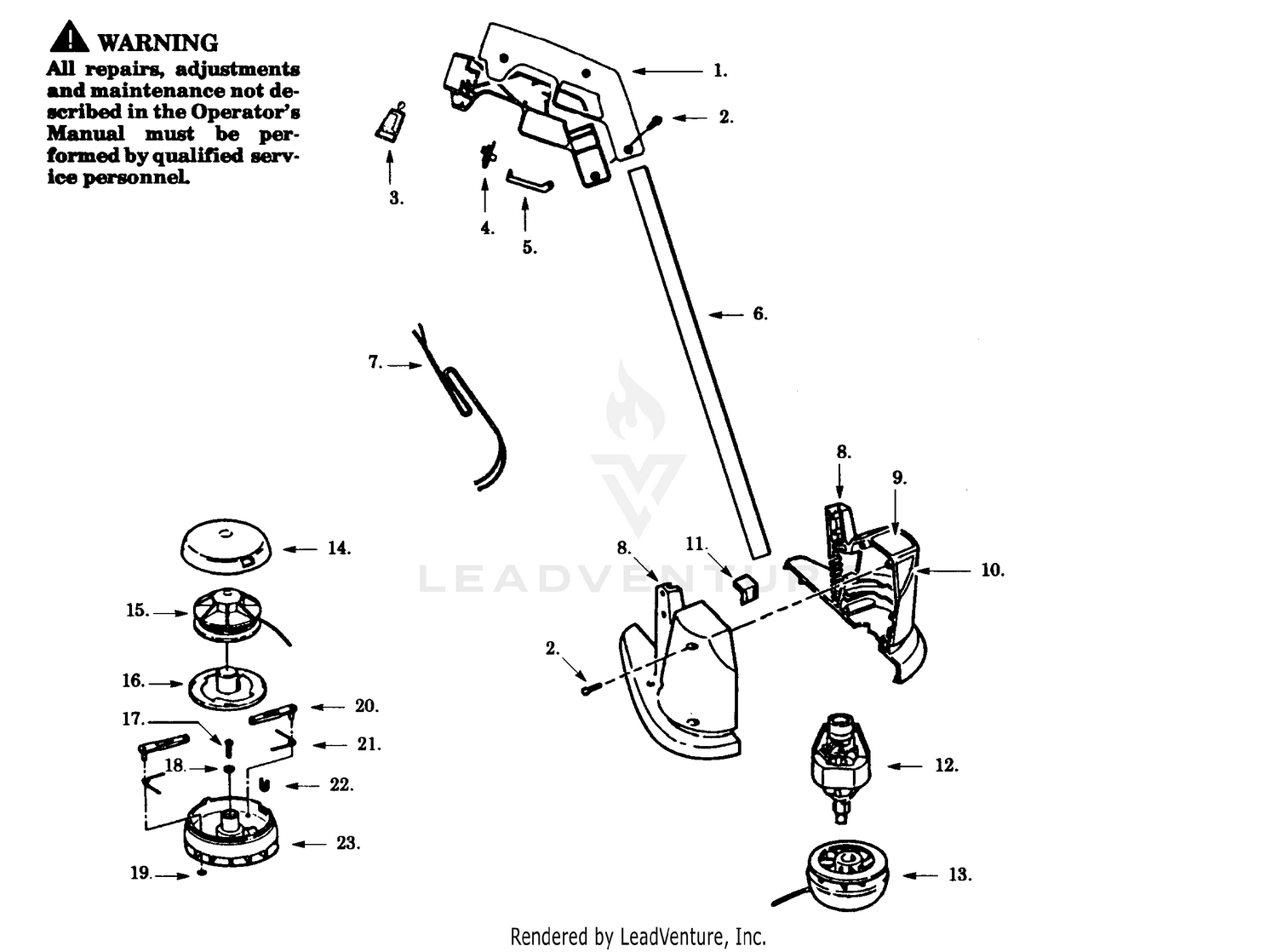

TRIMMER ASSEMBLY
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-3488 | GROOMER SHAFT ASM Price: $440.69 |
| 1 | 530351822 | Handle Set Price: $3.33 |
| 2 | 140-5606 | SPACER-SS This part replaces 107-4430. Price: $2.49 |
| 2 | 534193800 | Screw Price: $3.33 |
| 3 | 140-5580 | BLADE-GR GROOMER, TWIN TIP (0.032") This part replaces 121-9531. Price: $3.65 |
| 3 | 530347653 | Cord Retainer Price: $3.99 |
| 4 | 530347897 | On/Off Switch Price: $2.99 |
| 5 | 530351826 | Trigger Switch Price: $1.99 |
| 6 | 534014579 | Tube Ass'y. w/ Decal Price: $6.99 |
| 7 | 534014581 | Plug/Harness Ass'y. Price: $3.33 |
| 8 | 534014580 | Housing Set Price: $14.99 |
| 9 | 534036697 | Housing Top Label (Not a serviceable part) Price: $3.33 |
| 10 | 534036696 | Hsg. Front Label Price: $3.33 |
| 11 | 534958002 | Blade/Bracket Ass'y. Price: $3.33 |
| 12 | 534102003 | Motor Ass'y. Price: $54.99 |
| 13 | 534918301 | Cutting Head Ass'y. Price: $19.99 |
| 14 | 534919200 | Cover Price: $2.99 |
| 15 | 534919002 | Spool w/Line Price: $2.68 |
| 16 | 534100640 | Cam Price: $2.99 |
| 17 | 534978600 | Screw Price: $1.99 |
| 18 | 534908700 | Washer Price: $1.99 |
| 19 | 534400701 | Push Nut Price: $1.99 |
| 20 | 530400713 | Arm Price: $3.33 |
| 21 | 534908501 | Spring Price: $1.99 |
| 22 | 534918500 | Line Shield Price: $1.99 |
| 23 | 530400739 | Housing Ass'y. Price: $8.04 |
