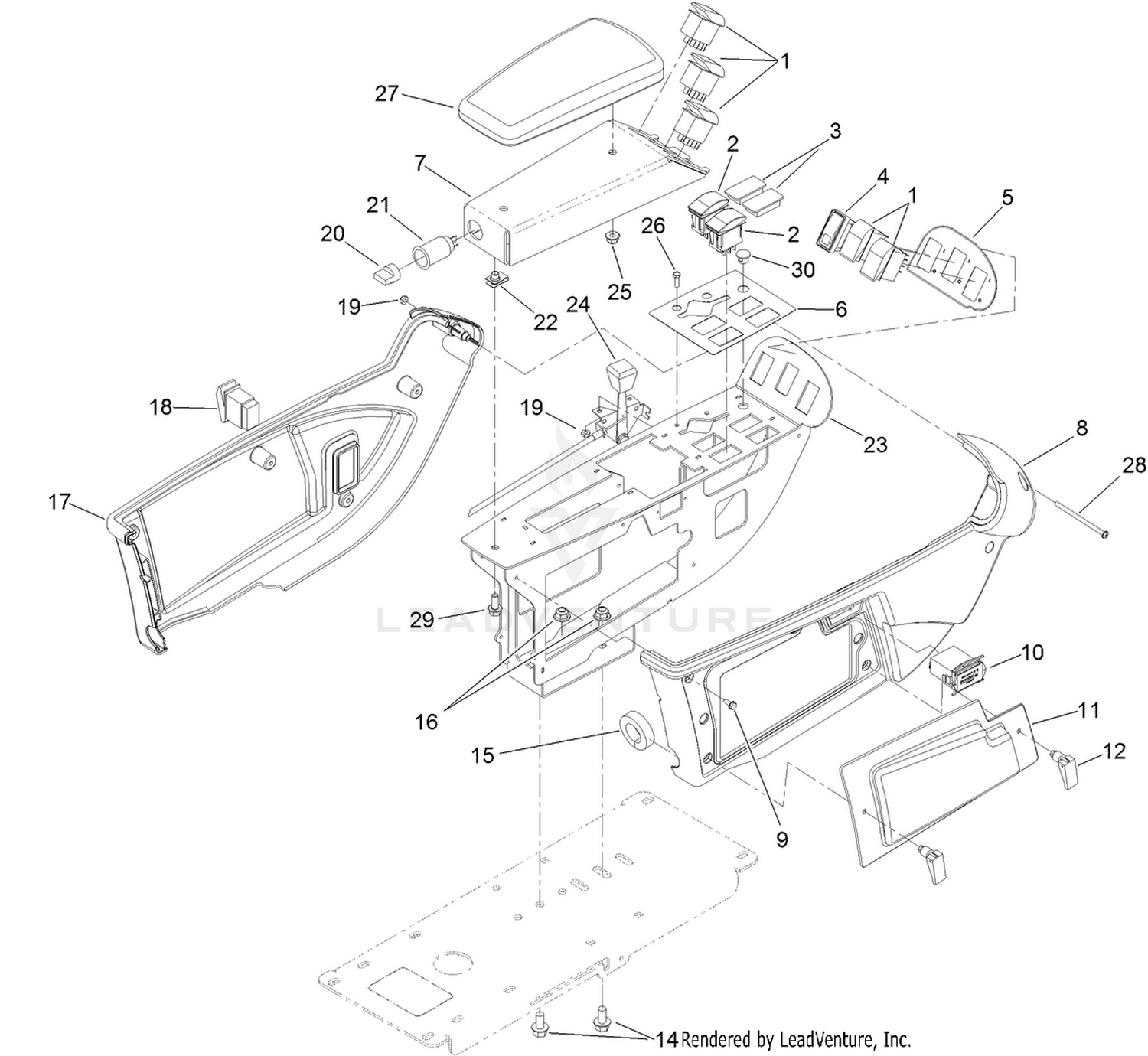

Console Assembly — Parts Catalog

Ref	Part Number	Description
1	100-8490	SWITCH-ROCKER, ON-NONE-ON Price: $33.76
2	100-1535	SWITCH Price: $84.91
3	99-7420	PLUG-HOLE Price: $7.64
4	104-9007	SWITCH-ROCKER Price: $75.33
5	119-0568	DECAL-CONSOLE, UPPER Price: $15.79
6	119-0567	DECAL-CONSOLE, LOWER Price: $20.84
7	117-0777-03	PANEL-ARM Price: $58.76
8	108-7605	COVER-RH Price: $55.56
9	32144-112	SCREW-HWH Price: $0.99
10	120-2244	HOURMETER This part replaces 1-513374. Price: $48.06
11	108-7616	PANEL-ACCESS Price: $36.37
12	74-5950	LATCH-SWELL Price: $21.28
14	3234-1	SCREW-HHF Price: $1.62
15	110-8912	SEAL-FOAM Price: $2.23
16	104-8301	NUT-HF, NI Price: $1.09
17	108-7604	COVER-LH Price: $55.56
18	95-8999	SWITCH Price: $42.14
19	3296-2	NUT-LOCK, NI Price: $1.89
20	99-7416	CAP Price: $6.64
21	99-7411	POINT-POWER Price: $30.69
22	112-3306	NUT Price: $0.82
23	117-0770-03	ARM-CONSOLE, FRONT Price: $192.29
24	119-0564	CONTROL-THROTTLE Price: $102.25
25	104-8300	NUT-HF, NI Price: $0.39
26	32105-13	SCREW-HWH Price: $1.59
27	108-7602	REST-ARM Price: $158.43
28	3250-22	SCREW-PPH Price: $4.09
29	3234-47	SCREW-HHF Price: $1.79
