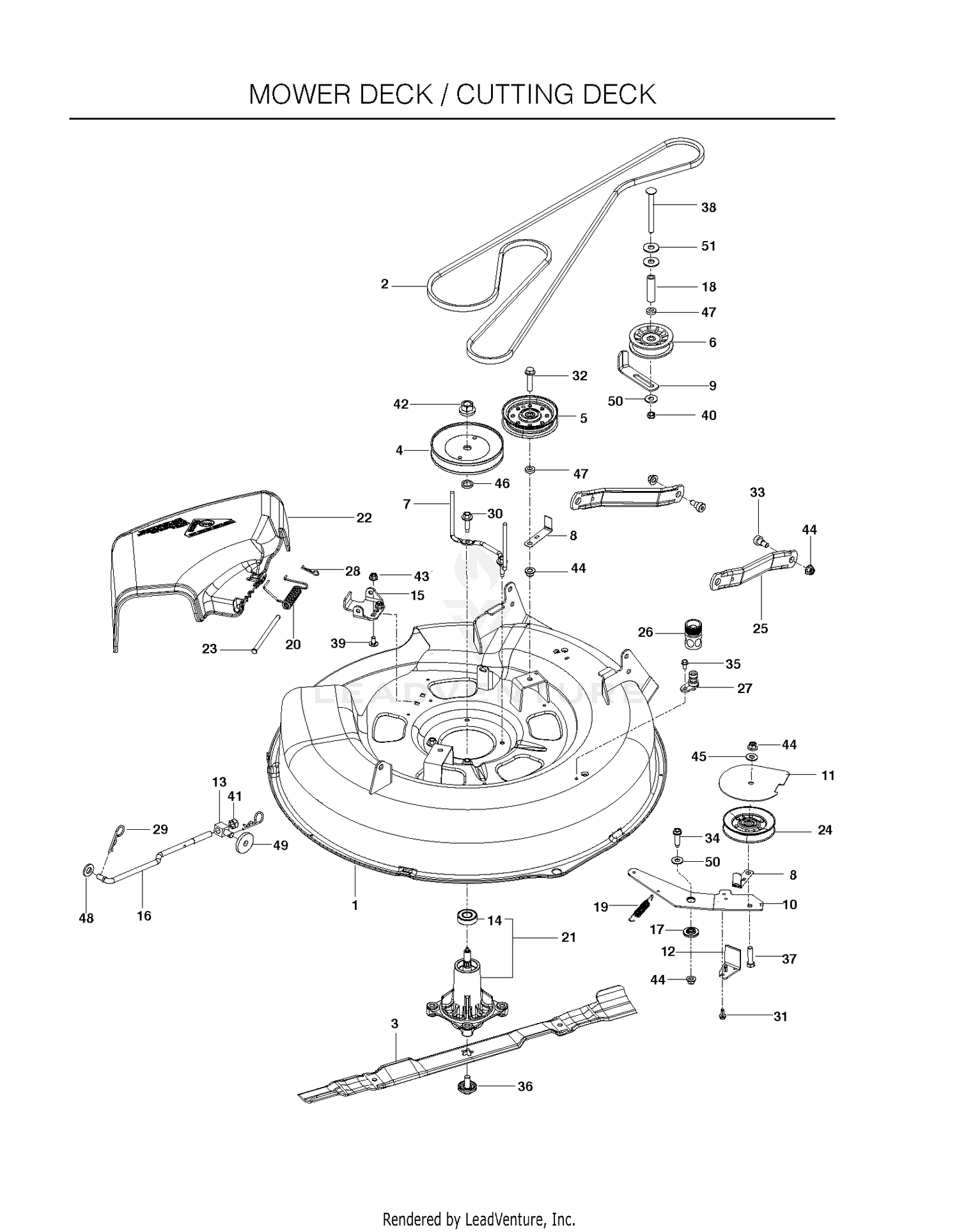

| Ref | Part Number | Description |
|---|
| 1 |
3-7902 |
DISCONTINUED Price: Call Us |
| 2 |
23-5020 |
DISCONTINUED Price: Call Us |
| 2 |
574173002 |
BELT, 100" EL Price: $44.99 |
| 3 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 3 |
532419274 |
BLADE.MOWER.BAGGING.30" Price: $19.99 |
| 4 |
3217-5 |
NUT-HEX Price: $0.25 |
| 4 |
532199791 |
PULLEY MANDREL 5.0" Price: $17.99 |
| 5 |
3-7898 |
WASHER-THRUST Price: $1.47 |
| 5 |
532175820 |
PULLEY.IDLER.FLAT.46.PR.DR. Price: $19.99 |
| 6 |
3-8015 |
DISCONTINUED Price: Call Us |
| 6 |
539110311 |
PULLEY, IDLER Price: $9.99 |
| 7 |
5-1413 |
DISCONTINUED Price: Call Us |
| 7 |
532400140 |
KEEPER, MANDREL BELT Price: $24.99 |
| 8 |
256-154 |
BUSHING Price: $10.71 |
| 8 |
529311701 |
KEEPER, BELT, BLACK Price: $2.99 |
| 9 |
5-1401 |
DISCONTINUED Price: Call Us |
| 9 |
525851801 |
GUIDE, BELT Price: $8.99 |
| 10 |
3-8026 |
GEAR BUSHING SHAFT Price: $16.20 |
| 10 |
574172804 |
ARM, IDLER 30, BLK Price: $27.99 |
| 11 |
3-8025 |
DISCONTINUED Price: Call Us |
| 11 |
573970402 |
COVER, PULLEY, BLACK Price: $14.99 |
| 12 |
5-1335 |
SIDE GEAR Price: $282.05 |
| 12 |
532400130 |
BRAKE.ARM.LH.38"TEX.COATED This part replaces 529311801. Price: $11.99 |
| 13 |
5-2036 |
DISCONTINUED Price: Call Us |
| 13 |
539114789 |
SWIVEL Price: $9.99 |
| 14 |
5-2037 |
SIDE GEAR Price: $525.58 |
| 14 |
539112050 |
BEARING, BALL Price: $3.99 |
| 15 |
321-5 |
SCREW-HH Price: $0.22 |
| 15 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $3.99 |
| 16 |
2710-11 |
LINK-CHAIN Price: $5.68 |
| 16 |
532195264 |
LINK.ASM.SUSP.FRONT.MWR.10.5 This part replaces 532195740. Price: $14.99 |
| 17 |
3-7856 |
DISCONTINUED Price: Call Us |
| 17 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 18 |
32150-1 |
KEY-SQUARE Price: $4.39 |
| 18 |
525848801 |
SPACER .39 ID X 2.25 Price: $5.99 |
| 19 |
3-7903 |
DISCONTINUED Price: Call Us |
| 19 |
532401872 |
SPRING RETURN Price: $2.99 |
| 20 |
3-8529 |
DISCONTINUED Price: Call Us |
| 20 |
539107609 |
TORSION SPRING Price: $1.99 |
| 21 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 21 |
587125401 |
MANDREL.W/SPCR.BRG.TALL.NONREV This part replaces 539112057. Price: $32.99 |
| 22 |
242-33 |
DISCONTINUED Price: Call Us |
| 22 |
532417344 |
SHIELD.DEFLECT.MWR.30S.BLACK Price: $34.99 |
| 23 |
242-39 |
WHEEL ASM Price: $244.32 |
| 23 |
539110736 |
PIN-CLEVIS 5/16 DIA X 5.19 ZD Price: $1.99 |
| 24 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 24 |
532146763 |
PULLEY.IDLER.4.25 This part replaces 532173902. Price: $14.99 |
| 25 |
237-70 |
DISCONTINUED Price: Call Us |
| 25 |
532195185 |
ARM.SUSPENSION.MOWER Price: $11.99 |
| 26 |
231-105 |
TIRE-RIBBED This part replaces 231-43. Price: $62.56 |
| 26 |
532416405 |
COUPLING.QUICK CONNECT Price: $5.99 |
| 27 |
242-32 |
LUG NUT Price: $4.77 |
| 27 |
532415598 |
PORT.WASHOUT Price: $5.99 |
| 28 |
323-4 |
SCREW-HH Price: $1.02 |
| 28 |
539976988 |
HAIRPIN #2 Price: $1.99 |
| 29 |
539976989 |
HAIRPIN #4 Price: $1.99 |
| 29 |
95-1823 |
WASHER This part replaces 3-3391. Price: $29.18 |
| 30 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 539107630. Price: $1.99 |
| 31 |
3-0737 |
WASHER Price: $7.59 |
| 31 |
532137729 |
SCREW.1/4-20X5/8 This part replaces 539107631. Price: $2.99 |
| 32 |
5-1077 |
KEY-SQUARE Price: $6.18 |
| 32 |
539990701 |
BLT 3/8-16X1-3/4 WHIZLK ZN SP Price: $1.99 |
| 33 |
5-2038 |
DISCONTINUED Price: Call Us |
| 33 |
539113621 |
SB 3/8-16 X 3/8 SKT HD ZD Price: $17.99 |
| 34 |
539110025 |
BOLT 3/8-16 X 1 1/2 ZINC CLEAR Price: $2.99 |
| 35 |
539108461 |
BOLT 1/4-20 X 1/2 HWST Price: $1.99 |
| 36 |
5-1404 |
DISCONTINUED Price: Call Us |
| 36 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 37 |
3-7858 |
DISCONTINUED Price: Call Us |
| 37 |
539990588 |
HCS 3/8C X 2 Price: $1.99 |
| 38 |
525848601 |
RHSNB 3/8-16 X 4 GR5 ZD Price: $1.99 |
| 39 |
2710-15 |
LINK-OFFSET Price: $29.98 |
| 39 |
539990799 |
CARRIAGE BOLT 5/16C X 5/8" Price: $1.99 |
| 40 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 40 |
539109332 |
NUT 3/8-16 HEX JAM Price: $1.99 |
| 41 |
3-6168 |
KEY Price: $11.99 |
| 41 |
573975201 |
NUT, 7/16-20 HEX NYLOC ZC Price: $1.99 |
| 42 |
5-2187 |
TRACTION SPROCKET Price: $91.00 |
| 42 |
532400234 |
NUT.FLANGE.LOCK.TOP This part replaces 539107590. Price: $3.99 |
| 43 |
5-2188 |
DISCONTINUED Price: Call Us |
| 44 |
251-318 |
BEARING-BALL This part replaces 251-204. Price: $16.40 |
| 44 |
521996501 |
NUT 3/8-16 HEX FLG NYLOC ZD Price: $1.99 |
| 45 |
322-4 |
SCREW-HH Price: $0.35 |
| 45 |
539990122 |
WASHER 3/8 SAE FLAT Price: $1.99 |
| 46 |
3290-238 |
WASHER-LOCK Price: $2.71 |
| 46 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 539107520. Price: $1.99 |
| 47 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 47 |
539109562 |
WASHER 3/8 X 3/4 X .187 TK Price: $1.99 |
| 48 |
4-8049 |
DISCONTINUED Price: Call Us |
| 48 |
539990250 |
WASHER 1/2" FLAT Price: $1.99 |
| 49 |
3-7896 |
REEL BELT Price: $75.42 |
| 49 |
539106504 |
SPINDLE WASHER Price: $4.99 |
| 50 |
3-7167 |
DISCONTINUED Price: $2.00 |
| 50 |
539990517 |
WASHER 3/8 FLAT Price: $1.99 |
| 51 |
3290-245 |
DISCONTINUED Price: Call Us |
| 52 |
3-6952 |
DISCONTINUED Price: Call Us |
| 53 |
3-8286 |
DISCONTINUED Price: Call Us |
| 54 |
5-1444 |
ROD & FLANGE WA Price: $28.78 |
| 55 |
3-8284 |
DISCONTINUED Price: Call Us |
| 56 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 57 |
32121-7 |
PIN-ROLL, SLOTTED Price: $0.31 |
| 58 |
3-8325 |
DISCONTINUED Price: Call Us |
| 59 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 60 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 61 |
3220-2 |
NUT-JAM Price: $0.50 |
| 62 |
3-6543 |
DISCONTINUED Price: Call Us |
| 63 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 64 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 65 |
4-2390 |
WASHER-FLAT Price: $0.62 |
| 66 |
302-42 |
DISCONTINUED Price: Call Us |
| 67 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 68 |
3219-2 |
NUT-HEX Price: $0.37 |
| 69 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 70 |
3-3129 |
DISCONTINUED Price: Call Us |
| 73 |
3-7861 |
DISCONTINUED Price: Call Us |
| 74 |
5-1354 |
DISCONTINUED Price: Call Us |
| 75 |
3290-244 |
WASHER-LOCK Price: $0.85 |
| 76 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 77 |
3-7243 |
SPRING-EXTENSION Price: $11.23 |
| 78 |
256-149 |
DISCONTINUED Price: Call Us |
| 79 |
32120-69 |
RING-SNAP Price: $2.78 |
| 80 |
3-6561 |
DISCONTINUED Price: Call Us |
| 81 |
3-6049 |
BELL CRANK & SHAFT Price: $531.69 |
| 82 |
3-6557 |
THRUST WASHER Price: $6.96 |
| 83 |
5-1841 |
DISCONTINUED Price: Call Us |
| 84 |
2710-6 |
LINK-CONNECTING Price: $18.99 |
| 85 |
3-6535 |
TRACTION CHAIN Price: $108.13 |
| 86 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 87 |
3246-4 |
SCREW-SET Price: $0.75 |
| 88 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 89 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 90 |
3-7386 |
SPINDLE Price: $9.47 |
| 91 |
3-6379 |
DISCONTINUED Price: Call Us |
| 92 |
252-62 |
DISCONTINUED Price: Call Us |
| 93 |
3-7843 |
DISCONTINUED Price: Call Us |
| 94 |
3-7857 |
BELT-V, RIBBED Price: $102.86 |
| 95 |
8-4639 |
DISCONTINUED This part replaces 28-0560. Price: Call Us |
| 97 |
32120-41 |
DISCONTINUED Price: Call Us |
| 98 |
11-4640 |
TENSION SPRING Price: $7.99 |
| 100 |
5-1992 |
DISCONTINUED Price: Call Us |
