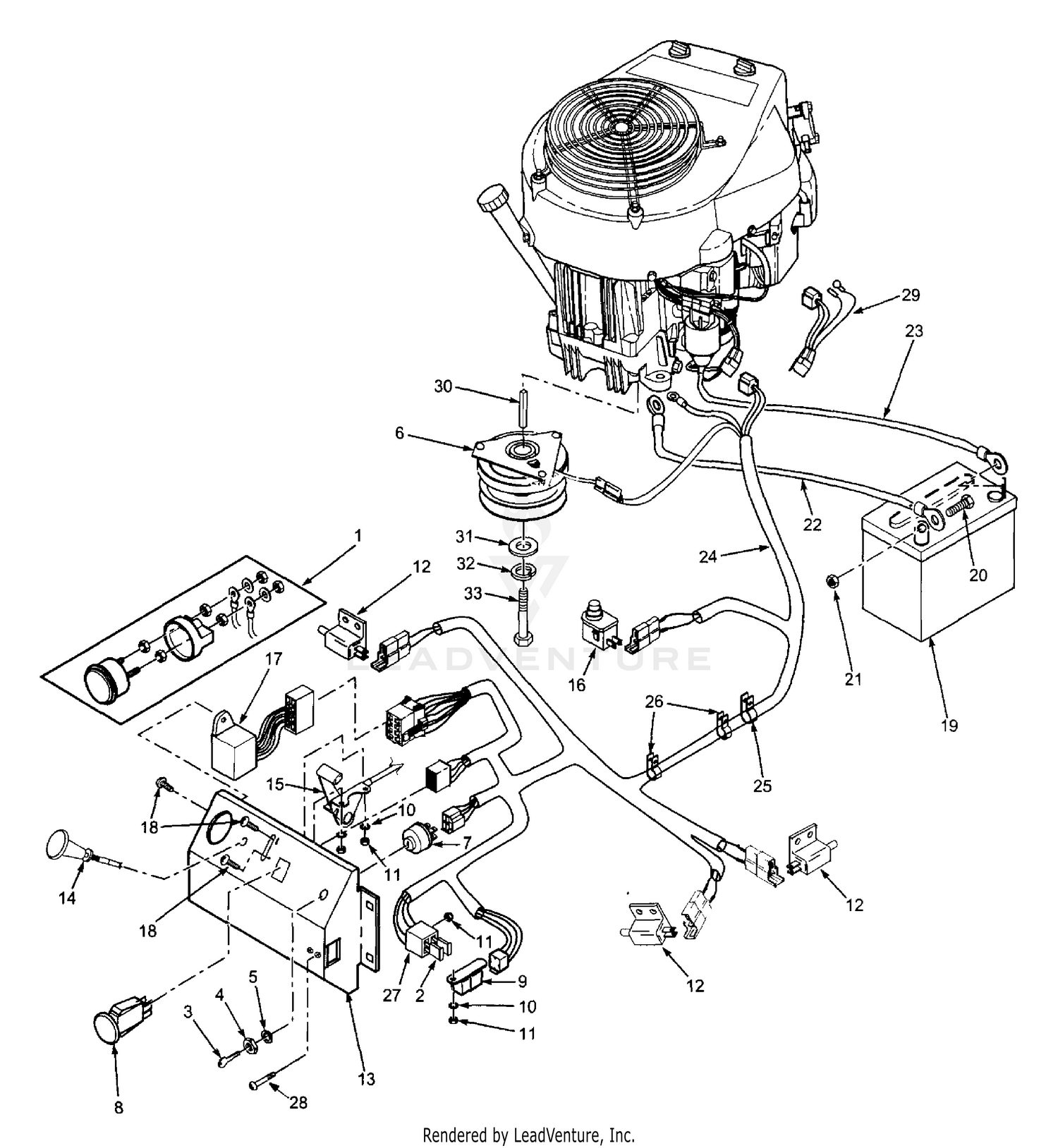

| Ref | Part Number | Description |
|---|
| 1 |
48023 |
Hourmeter Price: Call Us |
| 2 |
48298 |
Fuse, 20 amp Price: Call Us |
| 3 |
48017-02 |
Key,lgnition Price: Call Us |
| 4 |
48017-04 |
Nut, Hex 5/8-32 Price: Call Us |
| 5 |
48017-03 |
Lockwasher, 5/8" Internal Price: Call Us |
| 6 |
461397 |
Clutch, Electric This part replaces 461073. Price: Call Us |
| 7 |
48798 |
Switch, Ignition Price: Call Us |
| 8 |
463034 |
SEALED PTO SWITCH KIT This part replaces 481687. Price: Call Us |
| 9 |
48788 |
Relay Price: Call Us |
| 10 |
04031-01 |
Lock Washer, #10 External Tooth Price: Call Us |
| 11 |
04020-01 |
Nut, Hex #10-32 Price: Call Us |
| 12 |
481637 |
Switch, N/O Price: Call Us |
| 13 |
423218 |
Panel, Instrument Price: Call Us |
| 14 |
482210 |
Choke Control - Kawasaki Price: Call Us |
| 15 |
482209 |
Throttle Control Price: Call Us |
| 16 |
481638 |
Switch, Seat Price: Call Us |
| 17 |
483599 |
Electric Module This part replaces 482313. Price: Call Us |
| 18 |
04010-01 |
Screw, #10-32 x .5" Phillips Head Price: Call Us |
| 19 |
48015 |
Battery Price: Call Us |
| 20 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 21 |
04020-02 |
Nut, Hex 1/4-20 Price: Call Us |
| 22 |
48029-14 |
Cable, Battery Black (negative) Price: Call Us |
| 24 |
482215 |
Wiring Harness, Main Price: Call Us |
| 25 |
48030-10 |
Clamp, Cable 3/4" ID Price: Call Us |
| 26 |
48030-09 |
Clamp, Cable 1/2" ID Price: Call Us |
| 27 |
42413 |
Block, Fuse Price: Call Us |
| 28 |
04010-11 |
Screw, #10-32 x 1.5" Phillips Head Price: Call Us |
| 30 |
04063-24 |
Key, 1/4 x 1/4 x 2-3/4" Price: Call Us |
| 31 |
04041-28 |
Flatwasher, 7/16- .469 x 1-3/4" x 1/4" Price: Call Us |
| 32 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 482221 |
Choke |
Control - Kohler Price: Call Us 482221 |
