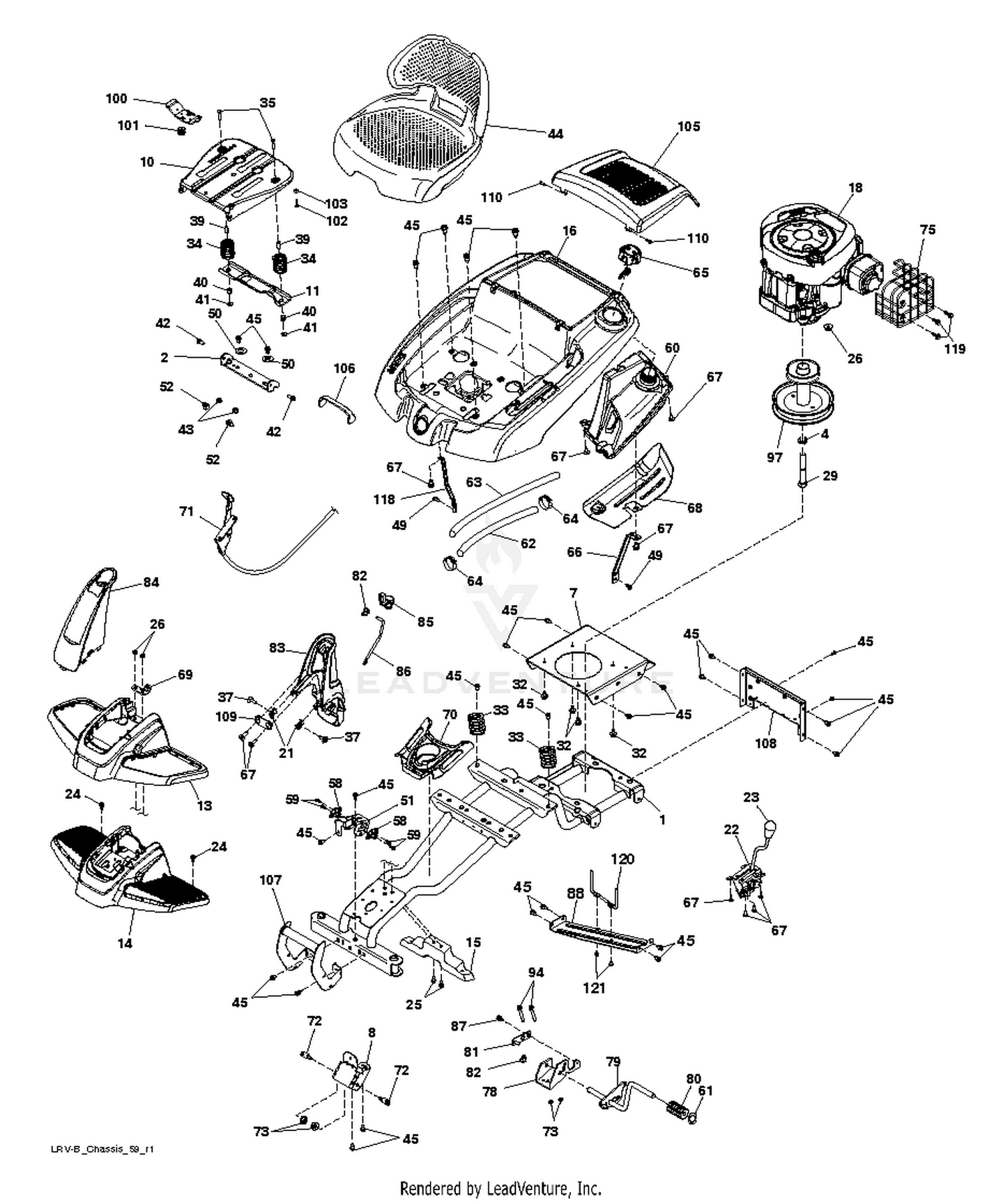

| Ref | Part Number | Description |
|---|
| 1 |
583508401 |
CHASSIS.WLD.30"LRV This part replaces 532436176. Price: $129.99 |
| 1 |
X-159-3 |
Screw Price: Call Us |
| 2 |
235057 |
Gasket Price: Call Us |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $5.99 |
| 4 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 7 |
583508501 |
PLATE.ENGINE.LRV2 This part replaces 532436177. Price: $29.99 |
| 8 |
587581801 |
BRACKET.SUSP.CHAS.FR.LRV Price: $2.99 |
| 10 |
532441805 |
PAN.ASM.SEAT.SHORT.SLD.ADJ.TEX Price: $29.99 |
| 11 |
532199370 |
BRKT.MNT.OPC.SW.SEAT. Price: $2.99 |
| 13 |
532442071 |
COVER.AESTH.FOOTREST.MS428 Price: $22.99 |
| 14 |
532442075 |
FOOTREST.STRUCTURAL. Price: $74.99 |
| 15 |
532442069 |
SUPPORT. FOOTREST.LRV.MS428 Price: $19.99 |
| 16 |
584976914 |
PANEL CONTROL ASM.LRVB.GEARDRV Price: $179.99 |
| 21 |
585523501 |
NUT.U-TYPE.SPEED Price: $1.99 |
| 22 |
586041901 |
CLUTCH.DECK.ASSEMBLY.LRVB Price: $99.99 |
| 23 |
532149846 |
KNOB.OVAL.CUSTOM.BLACK Price: $5.99 |
| 24 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 25 |
872140424 |
BOLT.CARRIAGE Price: $2.99 |
| 26 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 29 |
501606901 |
BOLT.HEX.7/16-20X3.GR5.YELLOW Price: $1.99 |
| 32 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 33 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK Price: $2.99 |
| 34 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 35 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $3.99 |
| 37 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 39 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 40 |
532121248 |
BUSHING Price: $3.99 |
| 41 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 42 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER Price: $1.99 |
| 43 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 44 |
532436612 |
COMFORT.SEAT.ASSEMBLY Price: $149.99 |
| 45 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 49 |
817060516 |
SCREW 5/16-18X1 Price: $3.99 |
| 50 |
819132016 |
Washer 13/32 x 1-1/4 x 16 Gauge (AYP part number) Price: $5.99 |
| 51 |
585920302 |
STEERING.BRACKET.PNT Price: $5.99 |
| 52 |
532145006 |
PUSH CLIP Price: $2.99 |
| 58 |
588452501 |
BUSHING.RACK.LRVB Price: $2.99 |
| 59 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 60 |
532437856 |
LRVB.FUEL.TANK.ASSEMBLY.EPA Price: $119.99 |
| 61 |
587015702 |
NUT.PUSH.50".BLACK Price: $1.99 |
| 62 |
532401135 |
LINE.FUEL.64"REAR.EMIS This part replaces 532400414. Price: $19.99 |
| 63 |
532448562 |
KIT.PURGE.LINE.55" This part replaces 532414119. Price: $14.99 |
| 64 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 65 |
581176101 |
CAP.FUEL.2 WAY VENT Price: $34.99 |
| 66 |
583509701 |
LRVB.FUEL.TANK.SUPPORT.BRACKET This part replaces 532436606. Price: $3.99 |
| 67 |
532421756 |
SCREW.#10 X 0.500 Price: $2.99 |
| 68 |
532439851 |
SHIELD.HEAT.FUEL.TANK Price: $12.99 |
| 69 |
583519101 |
BRACKET.MOUNT.CABLE.BRAKE This part replaces 532437427. Price: $2.99 |
| 70 |
532442068 |
CONSOLE.CENTER.CUPHOLDER Price: $11.99 |
| 71 |
583524501 |
THROTTLE.ASM.LRVB This part replaces 532437857. Price: $22.99 |
| 72 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 73 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 75 |
585883001 |
GUARD.LRVB.MUFFLER Price: $17.99 |
| 78 |
583515701 |
BRACKET.SUPPORT.ROD This part replaces 532437056. Price: $11.99 |
| 79 |
583515801 |
WLEDMENT.BRAKE This part replaces 532437057. Price: $11.99 |
| 80 |
532429693 |
COVER.PEDAL.BRAKE.LRV Price: $4.99 |
| 81 |
583518001 |
WLEDMENT.LINK.CONNECTING This part replaces 532437374. Price: $3.99 |
| 82 |
532169484 |
RETAINER CLIP Price: $4.99 |
| 83 |
587686402 |
COLUMN.R.STEERING.ASM.ENG/FR Price: $17.99 |
| 84 |
582702001 |
COVER.ASM.BOOT.STEER.FRT LRVB Price: $14.99 |
| 85 |
583521701 |
HANDLE PARKING BRAKE This part replaces 532437660. Price: $3.99 |
| 86 |
583534101 |
LRVB.PARKING.BRAKE.WIREFORM This part replaces 532438762. Price: $6.99 |
| 87 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $3.99 |
| 88 |
581514002 |
BRACE.LOW.LRVB.PMST.PLATEX431 Price: $3.99 |
| 94 |
874490548 |
BOLT HEX FLGHD 5/16-18X3 GR. 5 Price: $2.99 |
| 97 |
581438001 |
PULLEY.ENGINE.LRVB.PMST Price: $22.99 |
| 100 |
532197661 |
HANDLE.SLIDE.SEAT.TEX.BLACK Price: $12.99 |
| 101 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $2.99 |
| 102 |
874760612 |
BOLT Price: $1.99 |
| 103 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133812. Price: $3.99 |
| 105 |
532447992 |
LRVB.ENGINE.COVR.PATTRN.2.X428 Price: $22.99 |
| 106 |
532436834 |
STRAP.BATTERY.LRVB Price: $5.99 |
| 107 |
532442074 |
WELDMENT.FRT.PNT.BRUSHGAD.LR Price: $17.99 |
| 108 |
581525202 |
COVER.REAR.LRVB.PMSTX431 Price: $7.99 |
| 109 |
583537101 |
PLATE.HANDLE.BRAKE This part replaces 532439008. Price: $2.99 |
| 110 |
583759801 |
LRVB CONTROL PANEL HINGE This part replaces 532422145. Price: $2.99 |
| 118 |
532445002 |
SUPPORT.CONTROL.PANEL Price: $2.99 |
| 119 |
586422701 |
SCREW NO 8-18 X 1/2;HEX WASHER Price: $1.99 |
| 120 |
588064602 |
KEEPER.PNT.GEARDRV.LRV.ENG.BLT Price: $2.99 |
