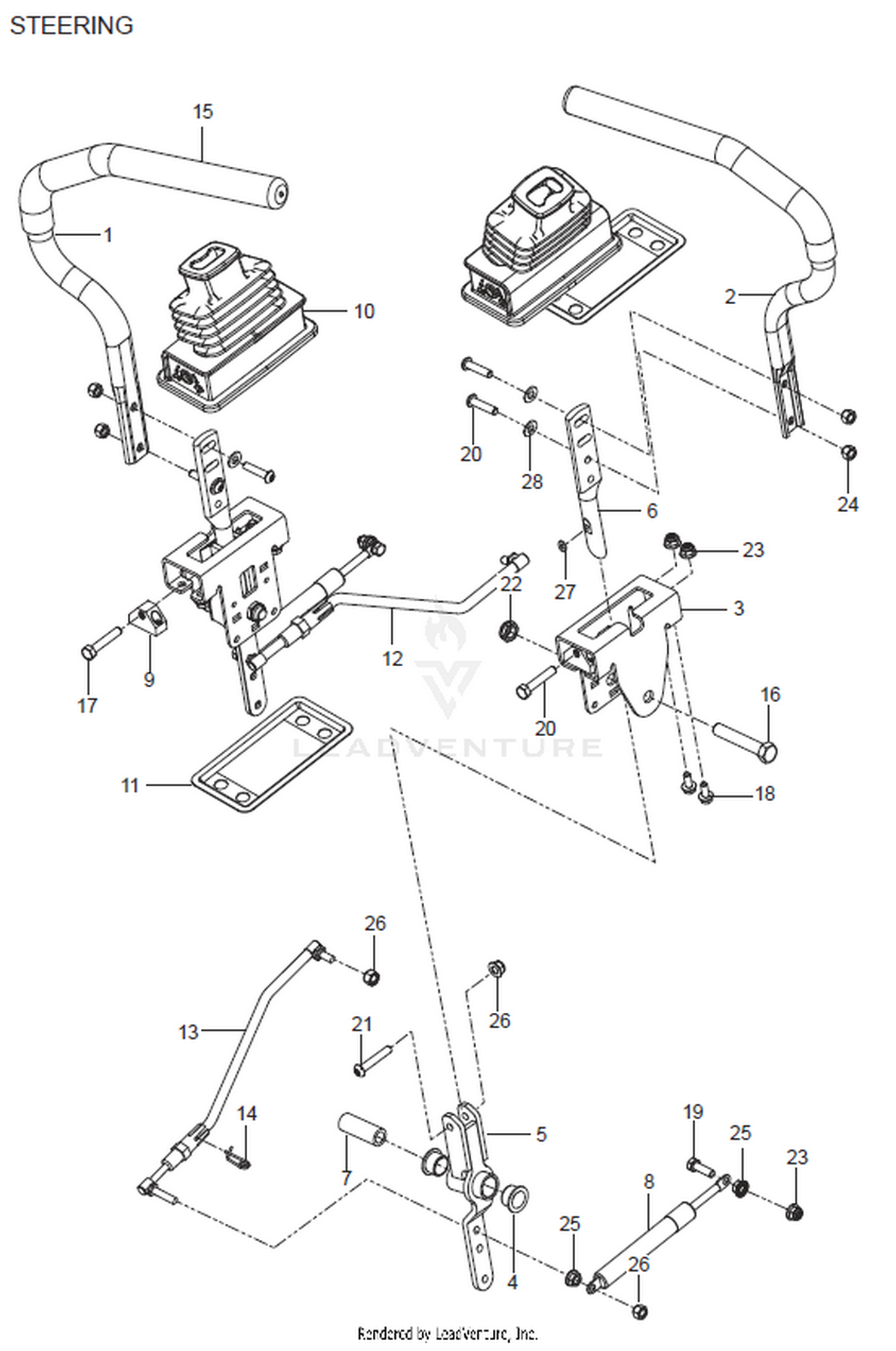

| Ref | Part Number | Description |
|---|
| 1 |
2410-71 |
PLUG-PLASTIC Price: $3.77 |
| 1 |
598851703 |
TUBE RZ CONTROL LEVER RIGHT MS This part replaces 582313803. Price: $44.99 |
| 2 |
32151-100 |
RING-RETAINING Price: $4.41 |
| 2 |
598851704 |
TUBE RZ CONTROL LEVER LEFT MS This part replaces 582313804. Price: $44.99 |
| 3 |
585124705 |
BRACKET.CONTROLS.ZTR.X431 Price: $14.99 |
| 3 |
69-8910 |
WASHER Price: $1.70 |
| 4 |
539131518 |
BEARING, FLANGE Price: $9.99 |
| 4 |
82-7850 |
SPRING-COMPRESSION Price: $12.29 |
| 5 |
354-104 |
RING-BACK UP Price: $2.24 |
| 5 |
576140301 |
LEVER CONTROL PIVOT Price: $19.99 |
| 6 |
237-175 |
O-RING Price: $4.39 |
| 6 |
587601704 |
Controls This part replaces 587601702. Price: $11.99 |
| 7 |
584927201 |
SPACER.PIVOT.CONTROL Price: $4.99 |
| 7 |
82-7840 |
PISTON-BRAKE Price: $220.21 |
| 8 |
21-2070-03 |
END-YOKE This part replaces 21-2070. Price: $40.78 |
| 8 |
539102720 |
DAMPENER Price: $39.99 |
| 9 |
237-174 |
O-RING Price: $4.01 |
| 9 |
581437502 |
Blocks This part replaces 581437501. Price: $5.99 |
| 10 |
354-105 |
RING-BACK UP Price: $3.12 |
| 10 |
585831601 |
BOOT.STEERING.LEVER Price: $19.99 |
| 11 |
585488202 |
CONTROL.BOOT.FLANGE.X431 Price: $7.99 |
| 11 |
82-7830 |
SCREW-BLEEDER, BRAKE Price: $21.68 |
| 12 |
105-0606 |
HOUSING-RH This part replaces 82-7790. Price: $555.70 |
| 12 |
588604902 |
Controls This part replaces 588604901. Price: $22.99 |
| 13 |
588605002 |
Rods This part replaces 588605001. Price: $19.99 |
| 13 |
82-7820 |
SEAT-TUBE, BRAKE Price: $6.91 |
| 14 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 14 |
93-7417 |
GASKET This part replaces 71-3920. Price: $5.86 |
| 15 |
525392902 |
PURCHASE THE COMPLETE LEVER Price: $27.99 |
| 15 |
71-3850-03 |
COVER-ACTUATOR, BRAKE This part replaces 71-3850. Price: $13.99 |
| 16 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 16 |
596434301 |
Bolts This part replaces 874780844. Price: $2.99 |
| 17 |
321-2 |
SCREW-HH Price: $2.79 |
| 17 |
585986101 |
SCREW.SHAKEPROOF.1.25.BLACK Price: $2.99 |
| 18 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 18 |
592858702 |
Bolts This part replaces 874490512. Price: $3.99 |
| 19 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 19 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 20 |
32128-25 |
NUT-HF Price: $3.19 |
| 20 |
585985901 |
BUTTONHEAD.5/16-18X1.125.BLACK Price: $2.99 |
| 21 |
587885301 |
SCREW.CAP.SOCKET.6PT.5/16-18 Price: $2.99 |
| 21 |
71-3830-03 |
BELLCRANK-BRAKE This part replaces 71-3830. Price: $82.63 |
| 22 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 22 |
539108010 |
NUT 1/2-13 HEX JM NYL Price: $2.99 |
| 23 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 23 |
71-3880 |
CLEVIS Price: $61.78 |
| 24 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 24 |
596583702 |
Nuts This part replaces 585986001. Price: $2.99 |
| 25 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 25 |
71-3900 |
GASKET Price: $17.82 |
| 26 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 26 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 27 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 27 |
587614201 |
WASHER.11/32ID.11/16OD.116THIC Price: $2.99 |
| 28 |
71-3860 |
CLEVIS Price: $16.88 |
| 29 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 30 |
69-0030 |
SPRING-COMPRESSION Price: $21.80 |
| 31 |
283-15 |
PIN-CLEVIS Price: $4.07 |
| 32 |
12-8900 |
BOLT-SHOULDER, HH Price: $22.27 |
| 33 |
93-7417 |
GASKET This part replaces 71-3920. Price: $5.86 |
| 34 |
71-3910 |
COLLAR Price: $35.77 |
| 35 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 36 |
93-7418 |
CAP-ACTUATOR, BRAKE This part replaces 71-4110. Price: $28.84 |
