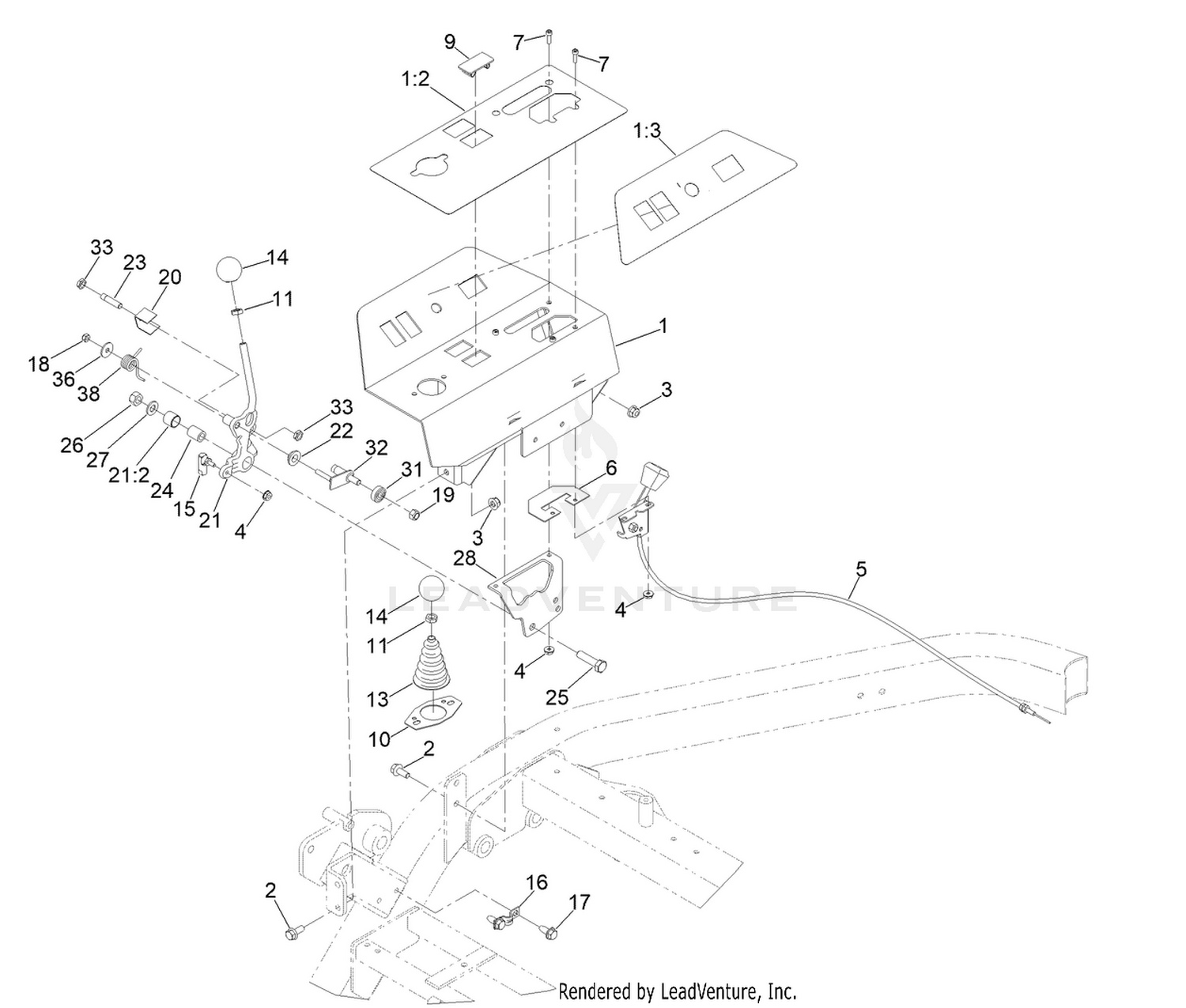

Operator Platform Assembly
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 136-8572 | CONSOLE Price: $206.33 |
| 2 | 3234-47 | SCREW-HHF Price: $1.79 |
| 3 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 4 | 32149-8 | NUT-KEPS Price: $0.88 |
| 5 | 120-5261 | CONTROL-THROTTLE Price: $68.18 |
| 6 | 112-9179 | PLATE-COVER Price: $7.23 |
| 7 | 3273-26 | SCREW-HSH Price: $0.41 |
| 9 | 99-7420 | PLUG-HOLE Price: $7.64 |
| 10 | 112-9181 | PLATE-BOOT Price: $4.90 |
| 11 | 3218-3 | NUT-JAM Price: $0.25 |
| 13 | 93-5961 | BOOT-LEVER Price: $56.35 |
| 14 | 233-42 | KNOB Price: $12.88 |
| 15 | 2411-38 | JOINT-BALL Price: $21.96 |
| 16 | 93-2279 | CLAMP-CABLE Price: $7.12 |
| 17 | 32104-32 | SCREW-HWH Price: $1.99 |
| 18 | 33023-00 | NUT-LOCK Price: $0.25 |
| 19 | 33024-00 | NUT-LOCK, NI Price: $0.75 |
| 20 | 106-6356 | SHIELD-SWITCH Price: $12.11 |
| 21 | 161-4725 | HANDLE ASM Price: Call Us |
| 22 | 94-9619 | BUSHING Price: $17.13 |
| 23 | 120-5348 | ACTUATOR-SWITCH Price: $50.78 |
| 24 | 94-1378 | TUBE-PIVOT, HANDLE Price: $9.66 |
| 25 | 33115-040 | SCREW-HH Price: $1.22 |
| 26 | 33025-00 | NUT-LOCK, NI Price: $0.54 |
| 27 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 28 | 94-6398 | BRACKET-TRACTION Price: $31.52 |
| 31 | 251-259 | BEARING-BALL Price: $13.67 |
| 32 | 125-1928 | PIN Price: $13.44 |
| 33 | 117-4059 | NUT-HEX Price: $1.84 |
| 36 | 3256-67 | WASHER Price: $0.49 |
