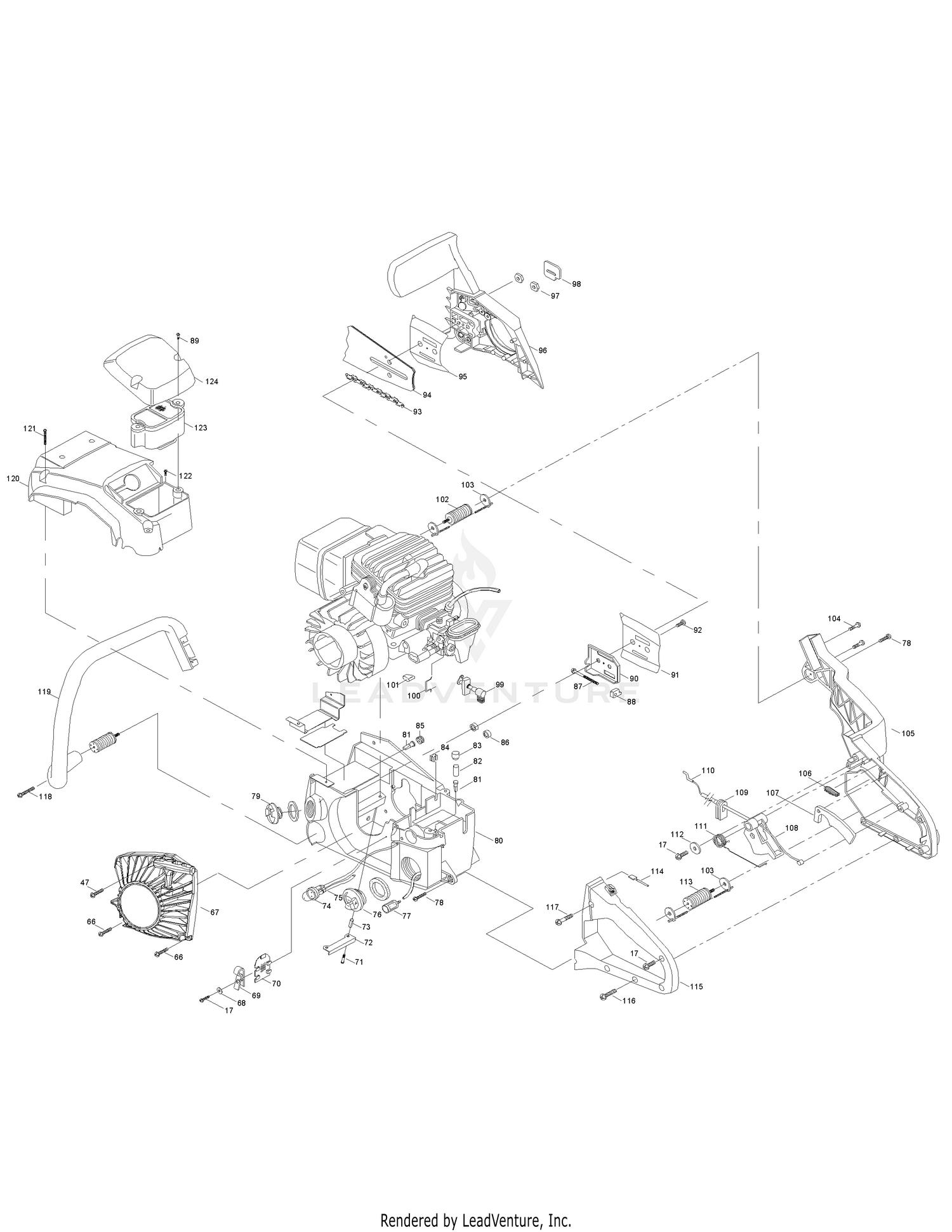

General Assembly 1
Parts (124)
| Ref | Part Number | Description |
|---|---|---|
| 1 | MC-9NAB-5/16-24 | NUT Not Available Price: |
| 2 | MC-9WOC-08 | WASHER Not Available Price: |
| 3 | MC-9228-31B206 | FLYWL Not Available Price: |
| 4 | 710-04505 | SCREW 10/24-2.75 Not Available Price: |
| 5 | MC-9WFB-0.2 | WASHER Not Available Price: |
| 6 | MC-9157-310201 | SEAL Not Available Price: |
| 7 | MC-9DB-620201 | BEARING Not Available Price: |
| 8 | MC-9072-3102Y1F | CRANKCASE LOWER Price: Call Us |
| 9 | MC-9221-310001 | KEY Not Available Price: |
| 10 | MC-9228-310203A | SHAFT ROD ASSEMBLY Not Available Price: |
| 11 | MC-9155-310201 | BEARING Not Available Price: |
| 12 | MC-6014-M96A01 | WASH Not Available Price: |
| 13 | MC-9073-310201 | WORK GEAR Not Available Price: |
| 14 | MC-9WFN-0.4 | WASHER Not Available Price: |
| 15 | MC-9076-310201 | O-RING Not Available Price: |
| 16 | MC-9228-310235 | PUMP ASSEMBLY Not Available Price: |
| 17 | 710-04493 | SCREW 8/16-0.5 Not Available Price: |
| 18 | MC-9WDZ-0.722 | WASHER Not Available Price: |
| 19 | MC-9155-310203 | BEARING Not Available Price: |
| 20 | MC-9228-310211 | DRUM SPRKT ASS'Y Not Available Price: |
| 21 | MC-9228-310210 | CLUTCH ASS'Y Not Available Price: |
| 22 | MC-9NHC-09 | NUT Not Available Price: |
| 23 | MC-9072-3102Y2F | CRANKCASE-UPPER Not Available Price: |
| 24 | MC-9124-310201 | FITTING-PULSE LINE Not Available Price: |
| 25 | MC-9014-3102Y1 | GASKET Not Available Price: |
| 26 | MC-9036-310201 | WIRE CLAMP HOSE Not Available Price: |
| 27 | MC-9059-310201 | CONDUIT-FLEX Not Available Price: |
| 28 | MC-9129-310004 | HOSE Not Available Price: |
| 29 | MC-9CA-0.46 | RING Not Available Price: |
| 30 | MC-9PC-10-32.5 | PIN Not Available Price: |
| 31 | MC-9290-31C201 | PISTON Not Available Price: |
| 32 | MC-9189-31C201 | RING-PISTO Not Available Price: |
| 33 | 710-04491 | SCREW 10-24-0.75 Not Available Price: |
| 34 | 9124-310205 | SPACER Not Available Price: |
| 35 | 725-04321 | COIL-IGNITION 9288 Not Available Price: |
| 36 | MC-9191-310201 | STUD Not Available Price: |
| 37 | MC-9012-330301 | GROMMET Not Available Price: |
| 38 | 710-04491 | SCREW 10-24-0.75 Not Available This part replaces 710-04297. Price: |
| 39 | MC-9014-310203 | FLANGE Not Available This part replaces 322649. Price: |
| 40 | MC-9131-310202 | EYELET Not Available Price: |
| 41 | MC-9292-31C201F | CYLINDER Not Available Price: |
| 42 | MC-9295-320001 | SPARK PLUG Not Available Price: |
| 43 | 710-04506 | SCREW 10/24-2.75 Not Available Price: |
| 44 | MC-9014-310208 | WASHER Not Available Price: |
| 45 | MC-9082-310201 | BAFFLE-MUF Not Available Price: |
| 46 | MC-9228-310217 | MUFFLER Not Available Price: |
| 47 | 710-04549 | SCREW 10/24-0.5 Not Available Price: |
| 48 | MC-9211-310201 | PLATE-MUFF Not Available Price: |
| 49 | MC-9183-310201 | SCREEN-MUF Not Available Price: |
| 50 | MC-9082-310205 | BAFFLER-MU Not Available Price: |
| 51 | MC-9017-310204 | COVER-MUFF Not Available Price: |
| 52 | MC-9158-310201 | LOCKPLATE Not Available Price: |
| 53 | MC-9NAC-10/24 | NUT Not Available Price: |
| 54 | MC-9124-310202 | BOOT-CARB Not Available Price: |
| 55 | MC-9131-310203 | EYELET Not Available Price: |
| 56 | MC-9014-310204 | FLANGE Not Available Price: |
| 57 | MC-9102-310202 | PLATE Not Available Price: |
| 58 | MC-9014-310202 | GASKET Not Available Price: |
| 59 | MC-9287-31C201 | CARBURETOR Not Available Price: |
| 60 | MC-9124-310203 | BOOT Not Available Price: |
| 61 | MC-9014-31C201 | FLANGE Not Available Price: |
| 62 | MC-9024-310202 | SPRING Not Available Price: |
| 63 | MC-9131-310204 | EYELET Not Available Price: |
| 64 | MC-9124-310204 | BOOT Not Available Price: |
| 65 | 710-04503 | SCREW 10/24-1.625 Not Available Price: |
| 66 | 710-04547 | SCREW 10/14-0.625 Not Available Price: |
| 67 | MC-9228-31B205 | STARTER ASSEMBLY Not Available Price: |
| 68 | MC-9WFZ-0.18 | WASHER Not Available Price: |
| 69 | MC-9223-310201 | CLIP Not Available Price: |
| 70 | MC-9183-310202 | SCREEN Not Available Price: |
| 71 | 710-04551 | SCREW 10/24-1 Not Available Price: |
| 72 | MC-9043-310201 | PLATE Not Available Price: |
| 73 | MC-9124-310206 | SPACER Not Available Price: |
| 74 | MC-9142-310002 | PRIMER Not Available Price: |
| 75 | MC-9129-310214 | HOSE Not Available Price: |
| 76 | MC-9228-310206 | FUEL CAP Not Available Price: |
| 77 | MC-9182-310503 | FILTER Not Available Price: |
| 78 | 710-04501 | SCREW 10/14-01 Not Available Price: |
| 79 | MC-9228-310207 | CAP-OIL Not Available Price: |
| 80 | MC-9228-310205 | FUEL/OIL TANK ASS'Y Price: $76.40 |
| 81 | MC-9070-310002 | VALVE-DUCK Not Available Price: |
| 82 | MC-6182-210101 | FUEL FILTER Not Available Price: |
| 83 | MC-9129-310209 | HOSE Not Available Price: |
| 84 | MC-9013-310201 | PLUG Not Available Price: |
| 85 | MC-9252-310002 | FILTER Not Available Price: |
| 86 | MC-9131-310206 | WASHER Not Available Price: |
| 87 | MC-9214-310201 | SCREW Not Available Price: |
| 88 | MC-9035-310201 | NUT Not Available Price: |
| 89 | MC-9214-310101 | SCREW Not Available Price: |
| 90 | MC-9043-310203 | PLATE-BAR Not Available Price: |
| 91 | MC-9043-310202 | PLATE-FLAN Not Available Price: |
| 92 | 710-04992 | SCREW Price: Call Us |
| 95 | MC-9082-310204 | PLATE Not Available Price: |
| 96 | MC-9228-310241 | CHAIN BRAK Not Available Price: |
| 97 | MC-9NAZ-5/16-18 | NUT Not Available Price: |
| 98 | MC-9072-310206 | PLATE Not Available Price: |
| 99 | MC-9228-31C201 | CHOKE ASSEMBLY Not Available Price: |
| 100 | MC-9114-310202 | CHOKE-ROD Not Available Price: |
| 101 | MC-9013-310202 | PLUG Not Available Price: |
| 102 | MC-9228-310213 | ISOLATOR ASSEMBLY Not Available Price: |
| 103 | MC-9228-310214 | CABLE ASSEMBLY Not Available Price: |
| 104 | 710-04490 | SCREW 10-24-6.5 Not Available Price: |
| 105 | MC-9068-310203 | FRAME-REAR Not Available Price: |
| 106 | MC-9017-31C201 | PLUG Not Available Price: |
| 107 | MC-9028-310201 | RELEASE-TRIGGER Not Available Price: |
| 108 | MC-9028-310202 | TRIGGER Not Available Price: |
| 109 | MC-9124-310209 | GROMMET Not Available Price: |
| 110 | MC-9010-310201 | CABLE Not Available Price: |
| 111 | MC-9024-310206 | SPRING Not Available Price: |
| 112 | MC-9WFB-4.9-17 | WASHER Not Available Price: |
| 113 | MC-9228-310222 | ISOLATER Not Available Price: |
| 114 | MC-9010-310203 | WIRE Not Available Price: |
| 115 | MC-9228-310232 | COVER ASSEMBLY Not Available Price: |
| 116 | 710-04494 | SCREW 8/16-0.6 Not Available Price: |
| 117 | 710-04495 | SCREW 8/16-1 Not Available Price: |
| 118 | 710-04496 | SCREW 12/14-1.5 Not Available Price: |
| 119 | MC-9228-31B202P | HANDLE ASSEMBLY Not Available This part replaces MC-9228-31B202. Price: |
| 120 | MC-9228-310216 | COVER ASS'Y Not Available Price: |
| 121 | 710-04504 | SCREW 10/14-02 Not Available Price: |
| 122 | 710-04548 | SCREW 10/14-0.68 Not Available Price: |
| 123 | MC-9228-310204 | CLEANER-AIR Not Available Price: |
| 124 | MC-9067-310202 | AIR CLEANER COVER Not Available Price: |
| 125 | MC-9042-310201 | WRENCH Not Available Price: |
| 126 | MC-9120-MD0701 | CASE-CARRY Not Available Price: |
