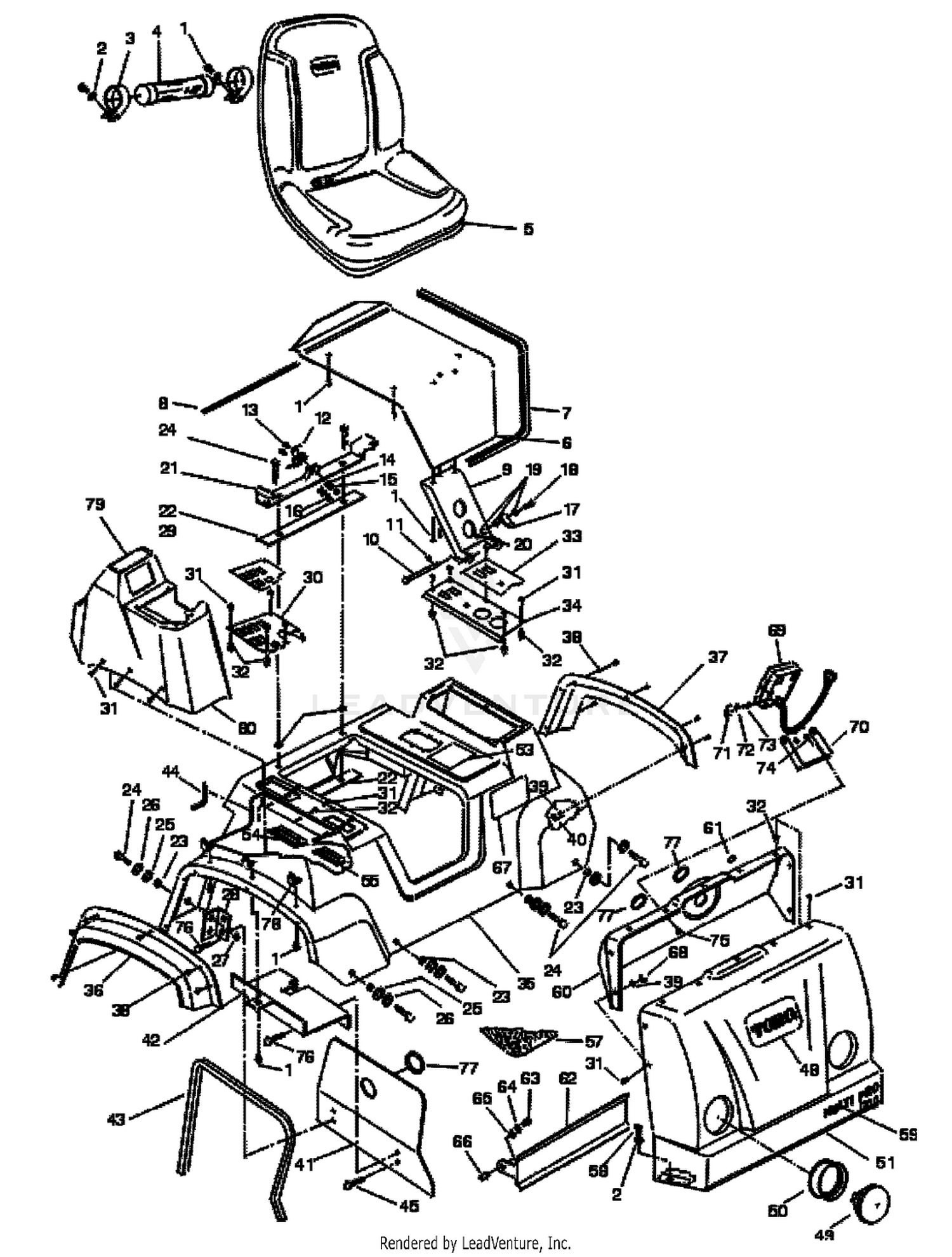

| Ref | Part Number | Description |
|---|
| 1 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 2 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 3 |
042560 |
R-Clamp Price: Call Us |
| 4 |
042559 |
Manual Tube Price: Call Us |
| 5 |
104-4620 |
SEAT Price: $273.15 |
| 6 |
100-8495 |
DISCONTINUED Price: Call Us |
| 7 |
100-8500 |
TRIM-SEAT Price: $58.50 |
| 8 |
100-8499 |
SEAL-FOAM Price: $15.83 |
| 9 |
100-8496-03 |
MOUNT-BRACKET, HINGE This part replaces 100-8496. Price: $109.28 |
| 10 |
100-8501 |
PIN-CLEVIS Price: $5.22 |
| 11 |
328963 |
HAIR PIN Price: $0.22 |
| 12 |
100-8502 |
LATCH-HINGE Price: $27.52 |
| 13 |
3250-4 |
SCREW Price: $1.78 |
| 14 |
3256-53 |
WASHER-FLAT Price: $0.25 |
| 15 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 16 |
3217-25 |
NUT-HEX Price: $0.25 |
| 17 |
100-8503-03 |
BRACKET-SEAT PROP This part replaces 100-8503. Price: $16.42 |
| 18 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 21 |
100-8459 |
DISCONTINUED Price: Call Us |
| 22 |
100-8463 |
SEAL-FOAM Price: $11.75 |
| 23 |
100-8464 |
SPACER Price: $26.19 |
| 24 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 25 |
100-8468 |
WASHER-RUBBER Price: $0.88 |
| 26 |
356308 |
DISCONTINUED Price: Call Us |
| 27 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 28 |
100-8623 |
BRACKET-ENGINE COVER SUPPORT, REAR Price: $51.26 |
| 29 |
104-8749 |
DECAL-CONTROL, SPRAY Price: $32.10 |
| 30 |
104-8866 |
SPRAY CONTROL PANEL ASM Price: $105.20 |
| 31 |
3290-516 |
SCREW-PPH 10-32 X .75 Price: $0.27 |
| 32 |
100-8450 |
NUT-WELL Price: $5.16 |
| 33 |
100-8470 |
DECAL-CONTROLS Price: $12.41 |
| 34 |
100-8452 |
VEHICLE CONTROL PANEL ASM This part replaces 100-8466. Price: $73.10 |
| 35 |
104-8875 |
SEAT BASE ASM Price: $1,645.54 |
| 36 |
94-7074 |
FLARE-FENDER, RH Price: $111.01 |
| 37 |
94-7075 |
FLARE-FENDER, LH Price: $124.14 |
| 38 |
3250-13 |
SCREW-PPH Price: $0.95 |
| 39 |
3256-49 |
WASHER-PLAIN Price: $0.33 |
| 40 |
3217-26 |
NUT-HEX Price: $0.25 |
| 41 |
104-8848-03 |
PANEL-SHIELD, RH This part replaces 104-8848. Price: $77.79 |
| 42 |
104-8852-03 |
PANEL-FENDER, INNER This part replaces 104-8852. Price: $84.11 |
| 43 |
100-8423 |
TRIM-SHIELD, TOP Price: $37.70 |
| 44 |
104-8870 |
TRIM-EDGE Price: $24.45 |
| 45 |
3234-26 |
SCREW-HHF Price: $2.69 |
| 48 |
62-5550 |
DECAL Price: $9.32 |
| 49 |
99-7310 |
HEADLIGHT Price: $50.71 |
| 50 |
99-7311 |
MOUNT-HEADLIGHT Price: $18.97 |
| 51 |
100-8281 |
HOOD-FRONT, CONSOLE Price: $1,082.22 |
| 53 |
100-8454 |
DECAL-RANGE SELECTOR Price: $15.82 |
| 54 |
100-8436 |
SEAL-FOAM Price: $4.73 |
| 55 |
100-8437 |
SEAL-FOAM Price: $3.47 |
| 57 |
100-8622 |
TREAD-FLOOR Price: $59.56 |
| 58 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 59 |
121-5007 |
DECAL This part replaces 104-8750. Price: $39.62 |
| 60 |
100-6777 |
DASH PANEL ASM Price: $207.47 |
| 61 |
94-7290 |
PLUG-HOLE Price: $0.88 |
| 62 |
100-6731-03 |
SHIELD-HEADLIGHT This part replaces 100-6731. Price: $47.07 |
| 63 |
323-6 |
SCREW-HH Price: $0.66 |
| 64 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 65 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 66 |
92-3788 |
INSERT Price: $7.31 |
| 67 |
100-8620 |
DISCONTINUED Price: Call Us |
| 68 |
3296-21 |
NUT-HEX Price: $0.22 |
| 69 |
121-5020 |
SPRAY MONITOR ASM This part replaces 104-8844. Price: $2,786.46 |
| 70 |
99-0576 |
BRACKET Price: $59.32 |
| 71 |
99-0667 |
KNOB Price: $39.31 |
| 72 |
99-0730 |
WASHER-RUBBER Price: $7.26 |
| 73 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 74 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 75 |
32128-33 |
NUT-HF Price: $0.25 |
| 76 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 77 |
040764 |
Grommet Price: Call Us |
| 78 |
104-8854-03 |
CONSOLE BRACKET ASM This part replaces 104-8854. Price: $44.96 |
| 79 |
104-8882 |
DECAL - SPRAY VALVE Price: $26.15 |
