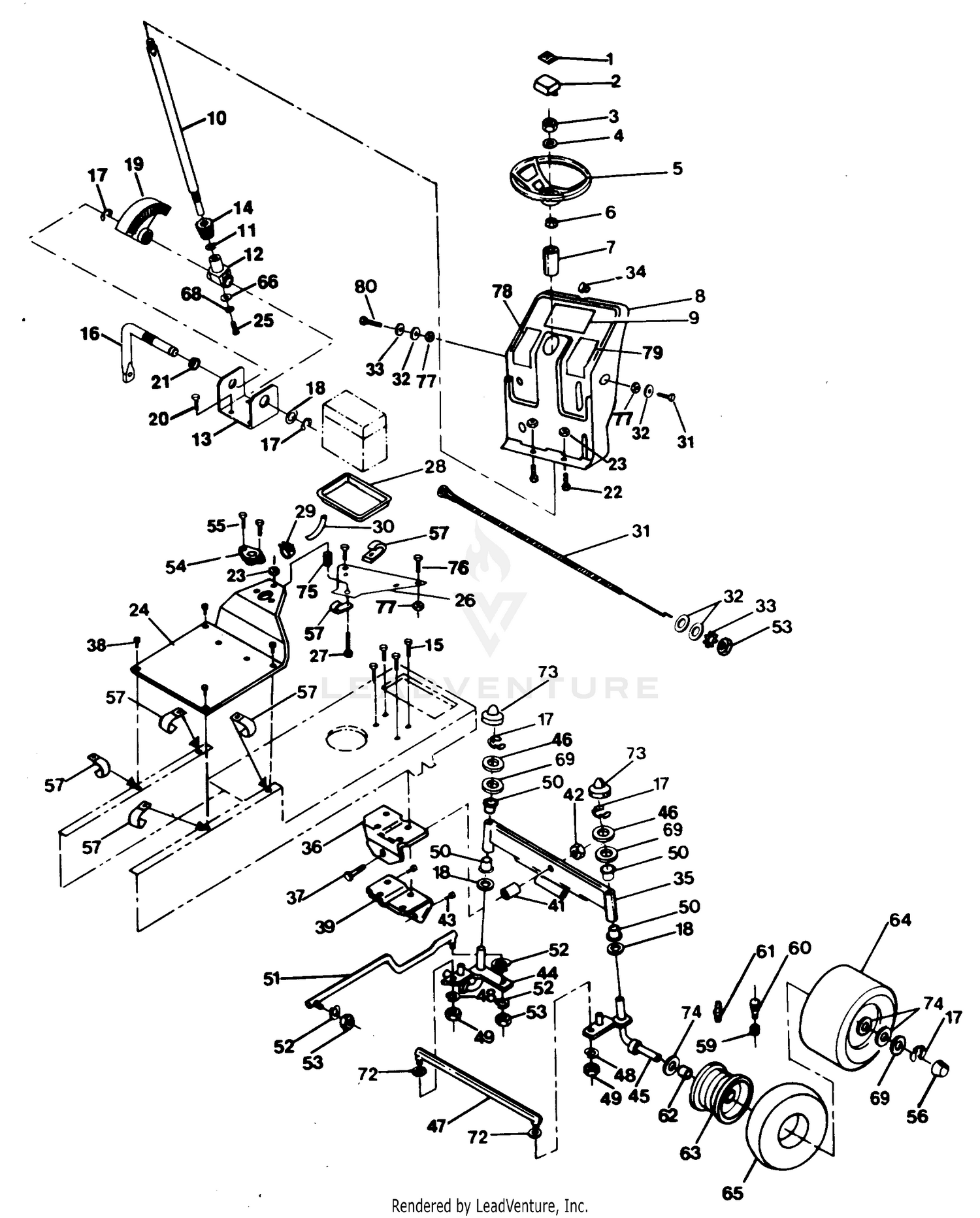

| Ref | Part Number | Description |
|---|
| 1 |
21-5070 |
KEY-SQUARE Price: $5.83 |
| 1 |
532124234 |
Steering Wheel Cap Decal (AYP part number) Price: $3.33 |
| 2 |
353-604 |
DISCONTINUED Price: Call Us |
| 2 |
532100710 |
Steering Wheel Insert (AYP part number) Price: $10.20 |
| 3 |
353-606 |
DISCONTINUED Price: Call Us |
| 3 |
873940800 |
Hex Nut 1/2-20 (AYP part number) Price: $3.99 |
| 4 |
353-607 |
DISCONTINUED Price: Call Us |
| 4 |
532100712 |
Washer (AYP part number) Price: $2.42 |
| 5 |
353-608 |
DISCONTINUED Price: Call Us |
| 5 |
532100713 |
Steering Wheel (AYP part number) Price: $64.99 |
| 6 |
353-640 |
DISCONTINUED Price: Call Us |
| 6 |
532100711 |
Steering Wheel Adaptor (AYP part number) Price: $11.99 |
| 7 |
353-609 |
DISCONTINUED Price: Call Us |
| 7 |
532100714 |
Steering Sleeve (AYP part number) Price: $3.33 |
| 8 |
353-610 |
DISCONTINUED Price: Call Us |
| 8 |
532122341 |
Dash (AYP part number) Price: $3.33 |
| 9 |
3257-21 |
DISCONTINUED Price: Call Us |
| 9 |
532123175 |
Dash Decal (AYP part number) Price: $3.33 |
| 10 |
353-603 |
DISCONTINUED Price: Call Us |
| 10 |
532124041 |
Steering Shaft (AYP part number) Price: $3.33 |
| 11 |
353-613 |
DISCONTINUED Price: Call Us |
| 11 |
532057079 |
Washer (AYP part number) Price: $2.99 |
| 12 |
353-926 |
GEAR This part replaces 353-614. Price: $171.34 |
| 12 |
532160395 |
STEERING SHAFT SUPPORT This part replaces 532124035. Price: $6.99 |
| 13 |
353-602 |
DISCONTINUED Price: Call Us |
| 13 |
532124036 |
Steering Bracket (AYP part number) Price: $4.99 |
| 14 |
353-612 |
DISCONTINUED Price: Call Us |
| 14 |
532124037 |
Pinion Gear (AYP part number) Price: $4.99 |
| 15 |
353-615 |
DISCONTINUED Price: Call Us |
| 15 |
532122819 |
Special Screw (AYP part number) Price: $2.38 |
| 16 |
353-616 |
DISCONTINUED Price: Call Us |
| 16 |
532156365 |
PITMAN SHAFT ASSY This part replaces 532124033. Price: $27.99 |
| 17 |
812000029 |
Klip Ring (AYP part number) Price: $1.99 |
| 18 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 19 |
532136874 |
Gear Sector (AYP part number) This part replaces 532124034. Price: $49.99 |
| 20 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 21 |
532109816 |
Snap-In Nyliner (AYP part number) Price: $2.99 |
| 22 |
874180512 |
Truss Head Crown Screw (AYP part number) Price: $3.99 |
| 23 |
873510500 |
Locknut (AYP part number) Price: $5.99 |
| 24 |
532125068 |
Saddle (AYP part number) Price: $3.33 |
| 25 |
532165857 |
SCREW.HX.WSH.HD This part replaces 871070410. Price: $2.99 |
| 26 |
532106965 |
Battery Plate Support (AYP part number) Price: $10.37 |
| 27 |
874760532 |
Hex Bolt 5/16-18 x 2 (AYP part number) Price: $2.99 |
| 28 |
532007603 |
TRAY.BATTERY This part replaces 532124886. Price: $3.99 |
| 29 |
532109596 |
Hose Clamp (AYP part number) Price: $2.99 |
| 30 |
532007697 |
Tube, Tray, Battery (AYP part number) This part replaces 532100541. Price: $6.23 |
| 31 |
532124049 |
Choke Control (AYP part number) Price: $3.33 |
| 32 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. (AYP part number) Price: $2.99 |
| 33 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 34 |
532008022 |
Dash Plug (AYP part number) Price: $2.27 |
| 35 |
532108075 |
Axle, Assembly, Front (AYP part number) This part replaces 532108076. Price: $62.55 |
| 36 |
532105663 |
Rear Saddle Support (AYP part number) Price: $8.25 |
| 37 |
874761060 |
Hex Bolt (AYP part number) Price: $3.99 |
| 38 |
817490608 |
Thread Roll Washer Hex Screw (AYP part number) Price: $3.99 |
| 39 |
532105664 |
Front Saddle Support (AYP part number) Price: $9.99 |
| 41 |
532110438 |
Front Bearing Axle Spacer (AYP part number) Price: $5.99 |
| 42 |
583612401 |
LOCKNUT M (1 2) (5 2) This part replaces 873901000. Price: $2.99 |
| 43 |
817490508 |
Thread Roll Washer Hex Screw (AYP part number) Price: $3.99 |
| 44 |
532156483 |
SPINDLE ASM LH This part replaces 532105656. Price: $14.99 |
| 45 |
532105654 |
R.H. Spindle (AYP part number) Price: $32.99 |
| 46 |
819272016 |
Washer (AYP part number) Price: $2.99 |
| 47 |
532170162 |
ROD.ASM.TIE.BALL.JOINT.NOVAN This part replaces 532121334. Price: $59.99 |
| 48 |
810040500 |
Lock Washer 5/16 (AYP part number) Price: $2.99 |
| 49 |
873610500 |
This part replaces 873810500. Price: Call Us |
| 50 |
532003366 |
Bearing (AYP part number) Price: $1.99 |
| 51 |
532130468 |
Link Drag Sol Ball Jt 20 064 (AYP part number) This part replaces 532124032. Price: $49.99 |
| 52 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 53 |
873680600 |
LOCKNUT This part replaces 873610600. Price: $1.99 |
| 54 |
532155108 |
KIT/BUSH This part replaces 532001554. Price: $3.99 |
| 55 |
817211008 |
Screw, Hex Wsh. Tap #10-16 x 1/2 (AYP part number) This part replaces 817431008. Price: $2.99 |
| 56 |
532104757 |
Front Hub Cap (AYP part number) Price: $1.99 |
| 57 |
532002751 |
Clip, Insulated (AYP part number) This part replaces 532124996. Price: $2.42 |
| 59 |
532059192 |
Valve Cap (AYP part number) Price: $3.99 |
| 60 |
532065139 |
Valve Stem (AYP part number) Price: $5.99 |
| 61 |
532000278 |
Grease Fitting (AYP part number) Price: $2.99 |
| 62 |
532009040 |
Bearing Price: $3.99 |
| 63 |
532106732 |
RIM.ASM.6".FRONT.SILVER This part replaces 532125021. Price: $59.99 |
| 64 |
532122073 |
TIRE.FRONT (15X6-6) TURF SAVER This part replaces 532106222. Price: $49.99 |
| 65 |
532059904 |
Tube (Not furnished with Tractor) Price: $22.99 |
| 66 |
819091116 |
Washer (AYP part number) Price: $3.33 |
| 68 |
810040400 |
Lock Washer (AYP part number) Price: $3.99 |
| 69 |
532121748 |
Washer (AYP part number) Price: $1.99 |
| 72 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 73 |
532121232 |
Spindle Cap (AYP part number) Price: $1.99 |
| 74 |
532121749 |
Washer (AYP part number) Price: $1.99 |
| 75 |
532121236 |
Spacer (AYP part number) Price: $2.38 |
| 76 |
874780616 |
BOLT This part replaces 874760616. Price: $3.99 |
| 77 |
873510600 |
Hex Nut (AYP part number) Price: $3.99 |
| 78 |
532125772 |
Clutch Decal Attachment (AYP part number) Price: $3.33 |
| 79 |
532125771 |
Lift Attachment Decal (AYP part number) Price: $3.33 |
